Note:

The Drone is BNF/PNP Version.

Introduction:

Having one of the most successful FPV companies link up with the global drone market leader, combining digital FPV system with our highest standards racing, freestyle and cinematic drones to create a HD pilot experience!

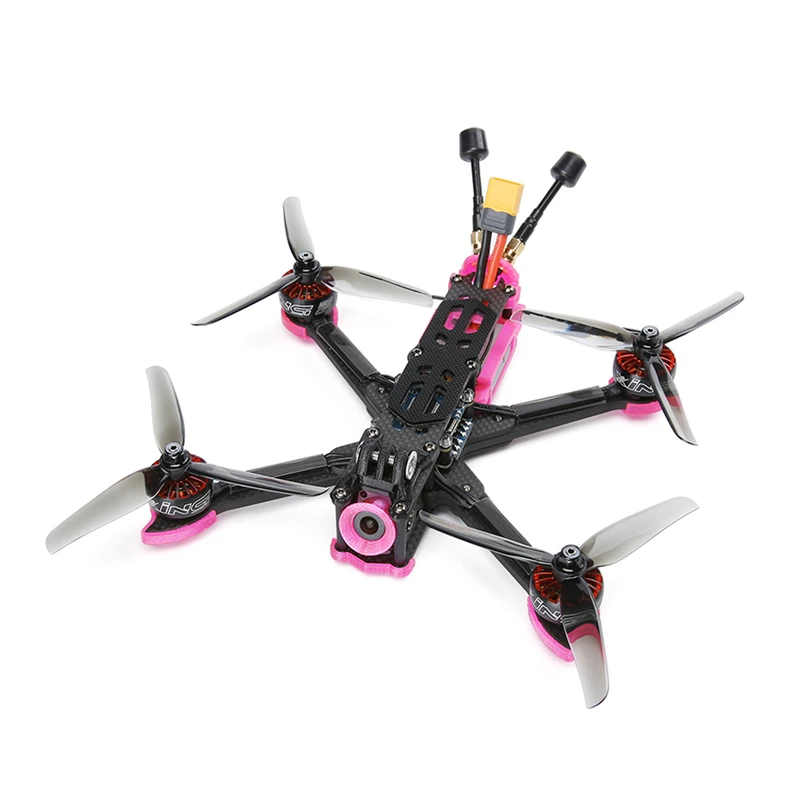

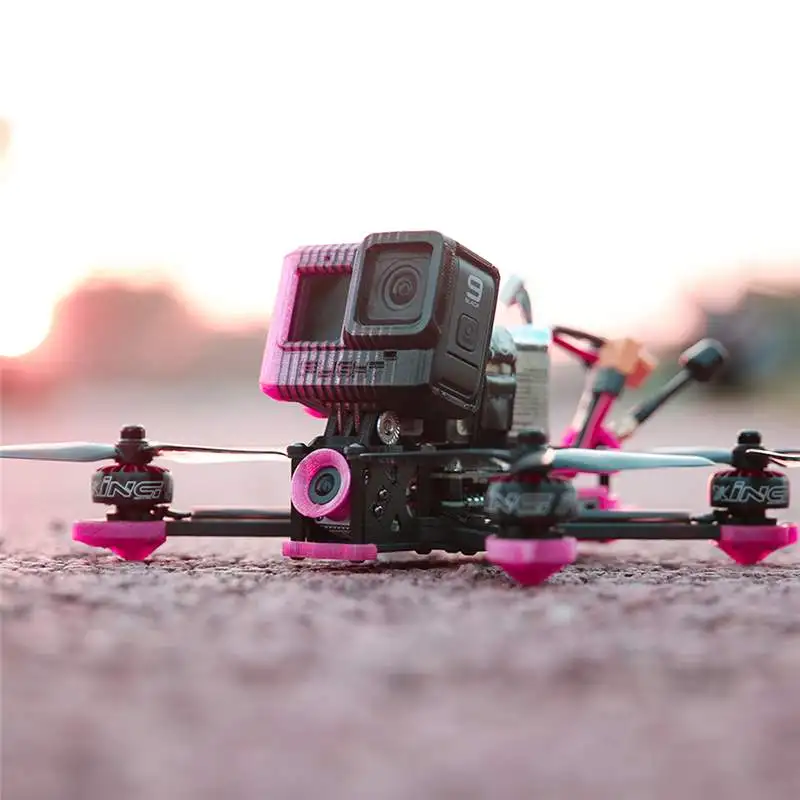

The Cidora SL5 V2.1 HD w/ Air Unit BNF features the amazing new FPV system, this quad makes flying FPV truly breathtaking.

With the 720p video shown at 120fps through the goggles, has set the bar at a new high for clarity and image quality in an FPV system.

This frame offers a squashed X layout for maximum control, equipped SucceX-D F7(50A 4-in-1 ESC) stack and popular XING motors.

Everything you just need to bind and fly!

Different power version ( and 6S available) to fit most pilots requirements. Choose your receiver option to get your FrySky or Crossfire installed and ready to be bound to your radio.

Main Changelog V2.1:

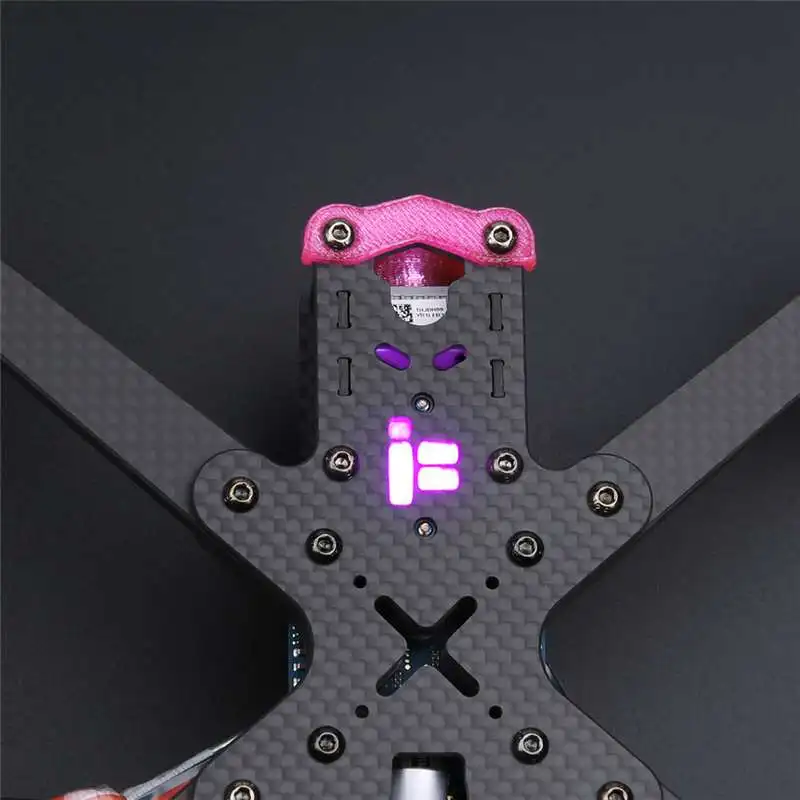

1. LED illuminated Logo

2. Bottom carbon thickness increased from 2mm to 2.5mm

3. The Wheelbase increased from 215mm to 217mm

4. TPU parts are not compatible, color is different

Features:

1. Everything you need to bind and fly!

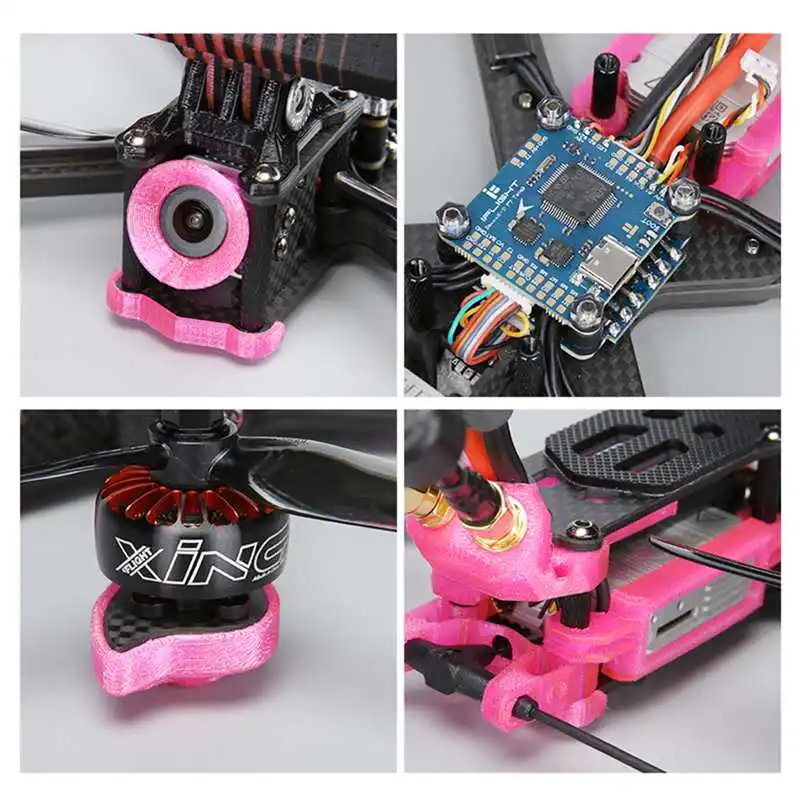

2. Optimized weight distribution: unit and Stack centered.

3. Equipped with SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack.

4. Equipped with the FPV Air Unit -Bind and Fly.

5. Buttery-smooth 720p 120fps FPV feed.

6. Pre-tuned with smooth freestyle settings.

7. Full 3K Carbon Fiber airframe with chamfered arms.

8. Equipped with XING 2207 motors.

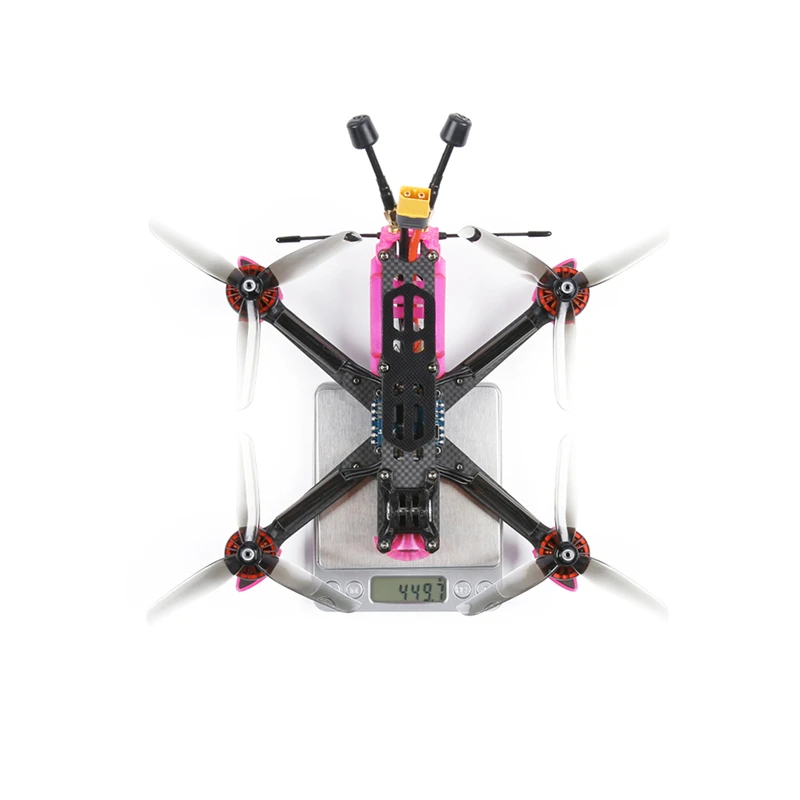

9. Weight: 445.4g without battery and Camera mount.

10. LED illuminated Logo.

11. New pink appearance version.

Specification:

217mm Frame Kit

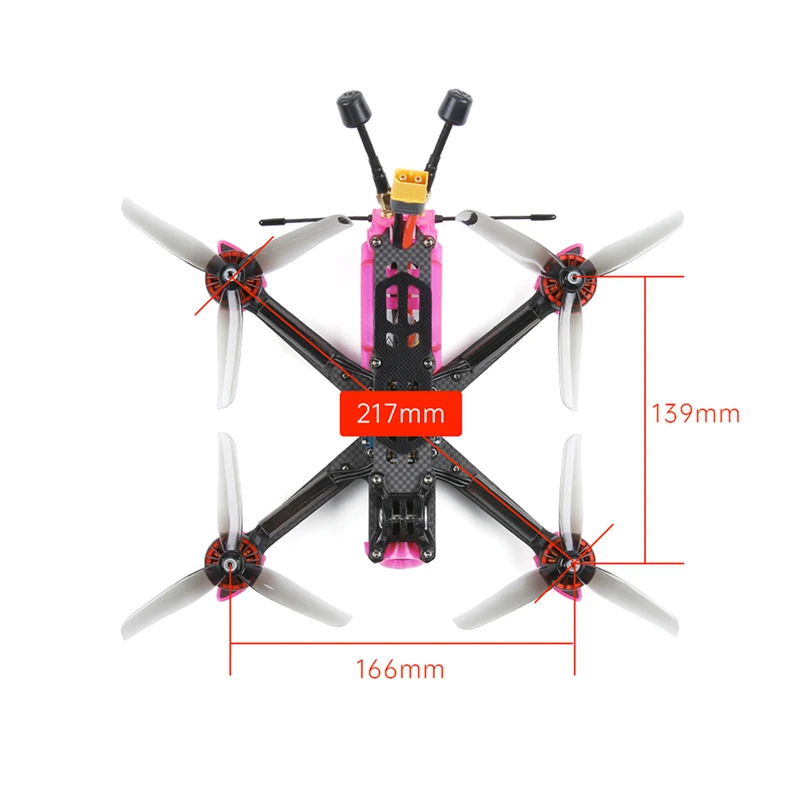

Wheelbase: 217mm

Material: Full 3K Carbon Fiber

Arm Thickness: 5.5mm

Bottom Plate Thickness: 2.5mm

Top Plate Thickness: 2.5mm

Middle Plate Thickness: 3mm

Camera Mount Plate Thickness: 2.5mm (included TPU inserts)

Bottom to top distance: 28mm

Dimension: 166x139mm (body dimension)

Color: Pink and amp; Black

SucceX-D F7 TwinG V2.1 Flight Controller

Input Voltage: 2-6S, Max. 8S

Firmware Target: IFLIGHT_F722_TWING

MCU: 216MHz STM32F722

Gyroscope: 2x ICM20689

Barometer: YES

Blackbox：32MB

Betaflight OSD: YES

BEC: 5V 2.5A and amp; 9V 2.5A

Current sensor scale: 100

Inverter for SBUS input (UART2-RX)

Smartaudio and amp; Tramp VTX protocol supported

Beeper pad : Yes

RSSI input pad: No

urrent sensor scale: 100

Inverter for SBUS input (UART2-RX)

Smartaudio and amp; Tramp VTX protocol supported

Beeper pad: Yes

RSSI input pad: No

UARTs: 5

– Motor outputs: 8

– 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)

– 6 pin Air Unit port (R1, GND, R2, T2, GND, 9V)

– BLHeli32 Telemetry: RX5

Dimensions: 36x36mm Mounting Hole: 30.5×30.5mm φ4mm with Grommets φ3mm

Weight: 7.5g

USB type-C

SucceX 50A 2-6S BLHeli_32 4in1 ESC

Input Voltage: 2-6S Lipo

STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware

Current sensor: Yes

Telemetry：Supported

BEC: No

Dimension: 43x39mm ( Mounting Holes: 30.5×30.5mm/Φ3mm)

Weight:14.4g

Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.

Target: iFlight-BL32-4IN1

XING 2207 1800KV 6S Motor

Configu-ration: 12N14P

Stator Diamter: 22mm

Stator Length: 7mm

Shaft Diameter: 5mm

Nazgul 5140 3-Blade Propeller

Item Name: 5140 Durable 3-Blades Propeller

Quantity: 2 CW and amp; 2 CCW

Color: may vary

Air FPV Unit

DESCRIPTION

Weight : Air Unit (Camera included): 45.8 g / 3.9 g (MMCX elbow each)

Dimensions

Air Unit: 44 x 37.8 x 14.4 mm

Camera: 27.4 x 21.1 x 20.1 mm

Coaxial Cable: 100 mm

SPECIFICATION

Operating Frequency: 5.725-5.850 GHz

Transmitter Power (EIRP): FCC/SRRC: and lt;30 dBm; CE: and lt;14 dBm

Max. Transmission Distance: FCC/SRRC: and lt;4 km; CE: and lt;0.7 km

Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)

Input Power: 7.4-17.6 V, about 4-9 W

Sensor: 1/3.2” CMOS; Effective Pixels: 4 M

Lens: 2.1 mm, f/2.1

Shutter: Rolling shutter

ISO: 100-25600

FOV: 150°(D); 122°(H); 93°(V)

Dimension: 22.1 x 21.1 x 20.1 mm

Weight: 8.2 g

Recommend Parts (Not included):

1. TPU 3D Printed Camera Mount for Hero 5/6/7/8/9 with ND8 Filter

2. TPU 3D Printed Camera Mount for Session

Recommend Lipo Battery ( NOT Included): 6S 1300mAh 120C Lipo Battery XT60 Plu

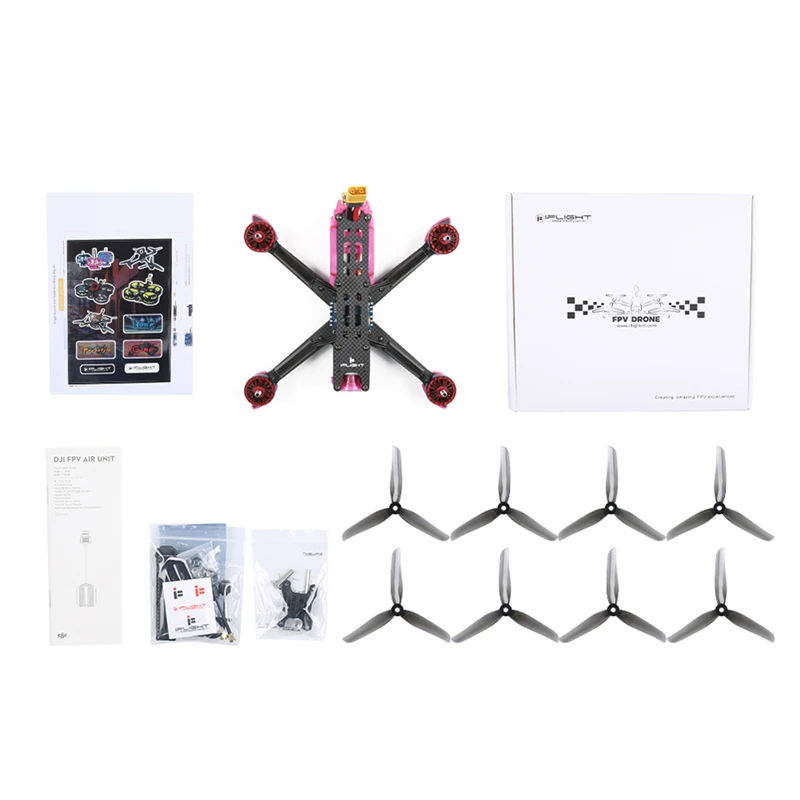

Package Included:

1 x Cidora SL5 V2.1 6S FPV Drone BNF-Pink

1 x FPV Camera

1 x FPV Air Unit Module

2 x LHCP RP-SMA 5.8g FPV Antenna

2 sets x Nazgul 5140 Propellers (Set of 4 – Color may vary)

1 x 20*250mm Battery Strap (Color May Vary)

1x 20*200mm Battery Strap (Color May Vary)

1x TPU bottom stand incl. lock screw
