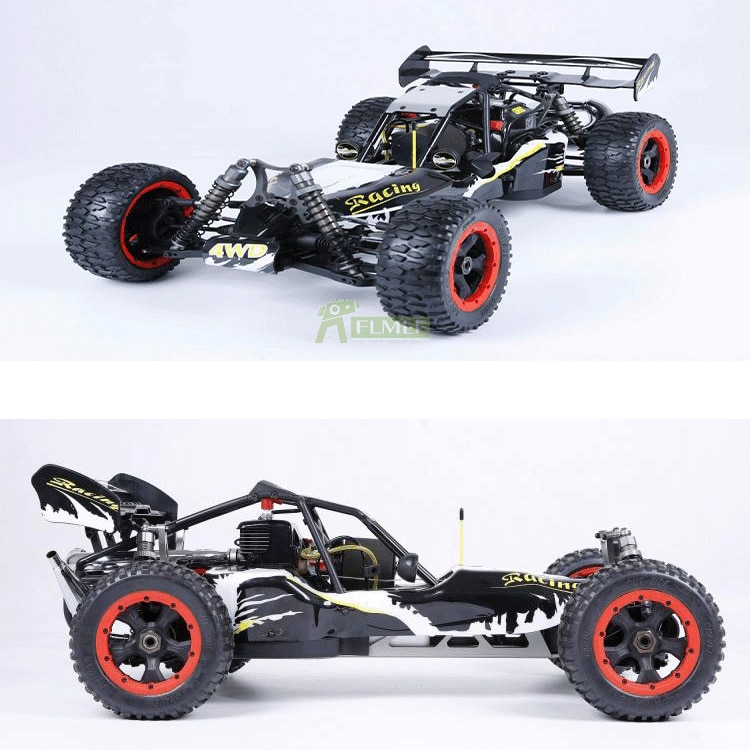

1/5 4WD RC Car Updated Version 2.4G Remote Control RC Car Toy Buggy 30.5CC Gasoline Engine Four-wheel Drive Truck for ROFUN BAJA

1/5 4WD RC Car Updated Version 2.4G Remote Control RC Car Toy Buggy 30.5CC Gasoline Engine Four-wheel Drive Truck for ROFUN BAJA

RM2325948134777240

1.ROFUN 30.5CC two-stroke 4 bolt fixed gasoline engine cylinder bore * stroke: 36×30 / mm

Engine displacement: 30.5/cm3

Carburetor: Walbro 688

Spark plug: NGK CMR7H

Start mode: hand pullback

Intake mode: scavenging

Cooling method: air cooling

Lubrication method: mixing

Idle speed: 4500±200/rpm

No load maximum speed: 19000/rpm

Maximum power: 2.1/13000 kW/rpm

Maximum torque: 1.76/9000 N·m/rpm

Clutch speed: 8000/rpm

2, body length x width x height LxWxH: 817x480x255mm
3, track Front 395mm / rear 400mm
4, wheelbase 610mm
5, 4WD
6, shaft drive
7, front and rear differential system
8, the rear output shaft brake
9, the front CVD drive half shaft
10, rear axle head drive half shaft
11, metal clutch cup support cover
12, RC4G Chinese and English 2.4G LED screen 4 channel remote control
13, 18 kg throttle brake servo
14, double steering 45KG digital steering gear
15. Dominator
16, 6V3000 mAh NiMH battery
17, 6mm metal shock absorption (titanium)
18, front and rear anti-roll bar group
19, 5mmCNC integrated molding 6061T6 aluminum alloy chassis
20, plastic roll cage
21, high-strength PC material car shell
22, gravel tire assembly (five wheels)
23. Metal shock absorption support tower before and after CNC
24, the second generation of the tail
25, with the emergency repair package included with the car
26, the new matching pot
27, the new clutch

































.
