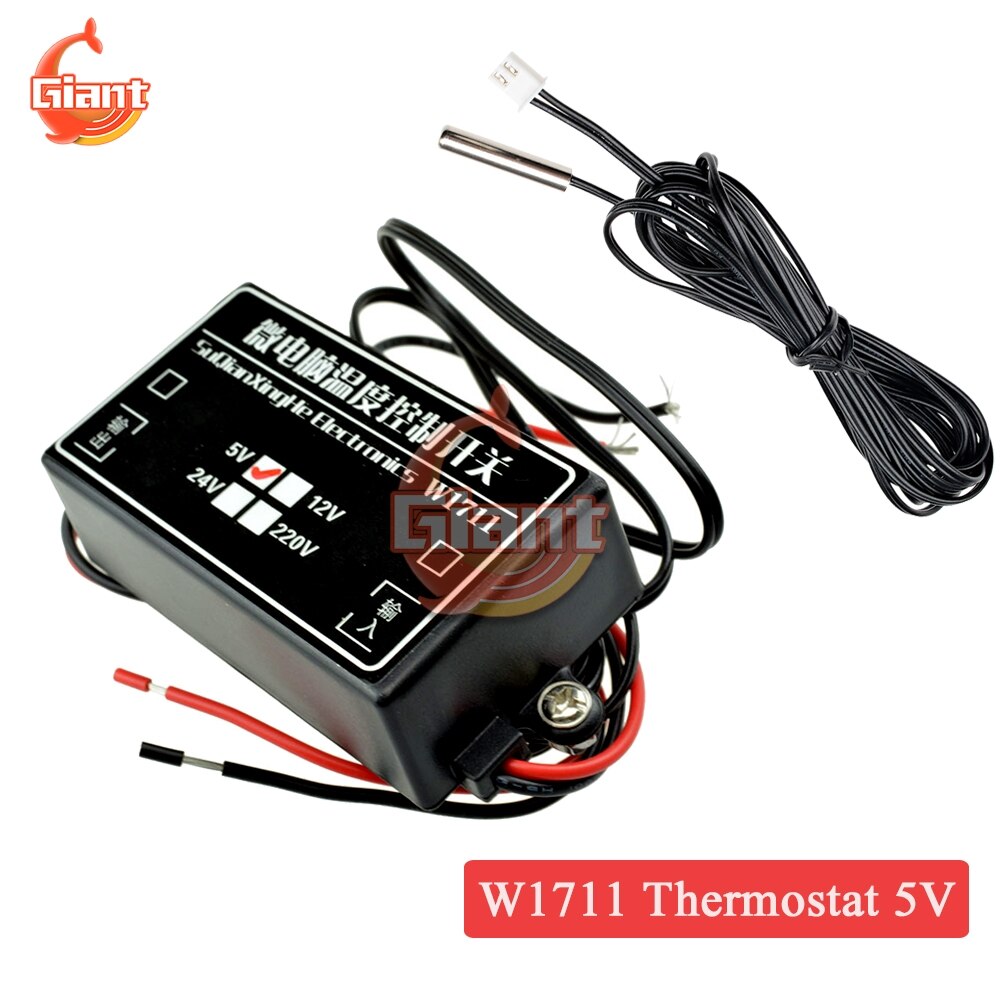

W1711 DC 5V Digital Thermostat Heating Cooling Incubator Temperature Controller Thermoregulator Relay Switch Control NTC Sensor

SALE 23% OFF

W1711 DC 5V Digital Thermostat Heating Cooling Incubator Temperature Controller Thermoregulator Relay Switch Control NTC Sensor





W1711 DC 5V Digital Thermostat Heating Cooling Incubator Temperature Controller Thermoregulator Relay Switch Control NTC Sensor




Features:

Supply voltage: 5V
Output Capacitance: Max Current 5A, Max Power 1000W
Temperature range: -15-70 °
Control accuracy: 0.1 °
Setting Accuracy: 5 °
Default Temp Difference Setting : 2 °
Thermostat probe: NTC 3950 / B = 10K (waterproof type 1M)

Instructions for use:

1Product Description: : Determine the mode
Heating mode: the 5th switch up
Cooling mode: the 5th DIP switch down
2: Set the temperature
Setting the desired temperature need to adjust the four DIP switch,
Please refer to the picture of “Temperature Control Setting”.
3: Connect the circuit
Directly connected to the power at the input, the output connect to the load directly,
such as heaters, light bulbs, fans, etc.,
the temperature probe connect to the place you want to control the temperature.

Package included:

1PCS x W1711 Microcomputer Temperature Control Adjustable Switching Thermostat DC 5V











3950 Temperature Resistance Sensor Cable:



Advantage:

1: New process, stable product performance and long-term work. (annual resistance drift rate ≤ 1%)
2: The resistance value and the B value are high in accuracy, good in consistency, and interchangeable. (The resistance value and B value precision can be respectively Up to ±0.5%)
3: High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/°C)
4: It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.
5: It can be packaged according to the installation conditions used, which is convenient for users to install.
6: Can be made into high-dissipation products, the test current can be much higher than the traditional structure of the sensor.


Applications:

For frequency converters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying  ovens, incubators, etc Temperature measurement and control.





Thermistor Line Package:



1 x 1M / 2M NTC Thermistor Temperature Sensor Waterproof Probe Cable
