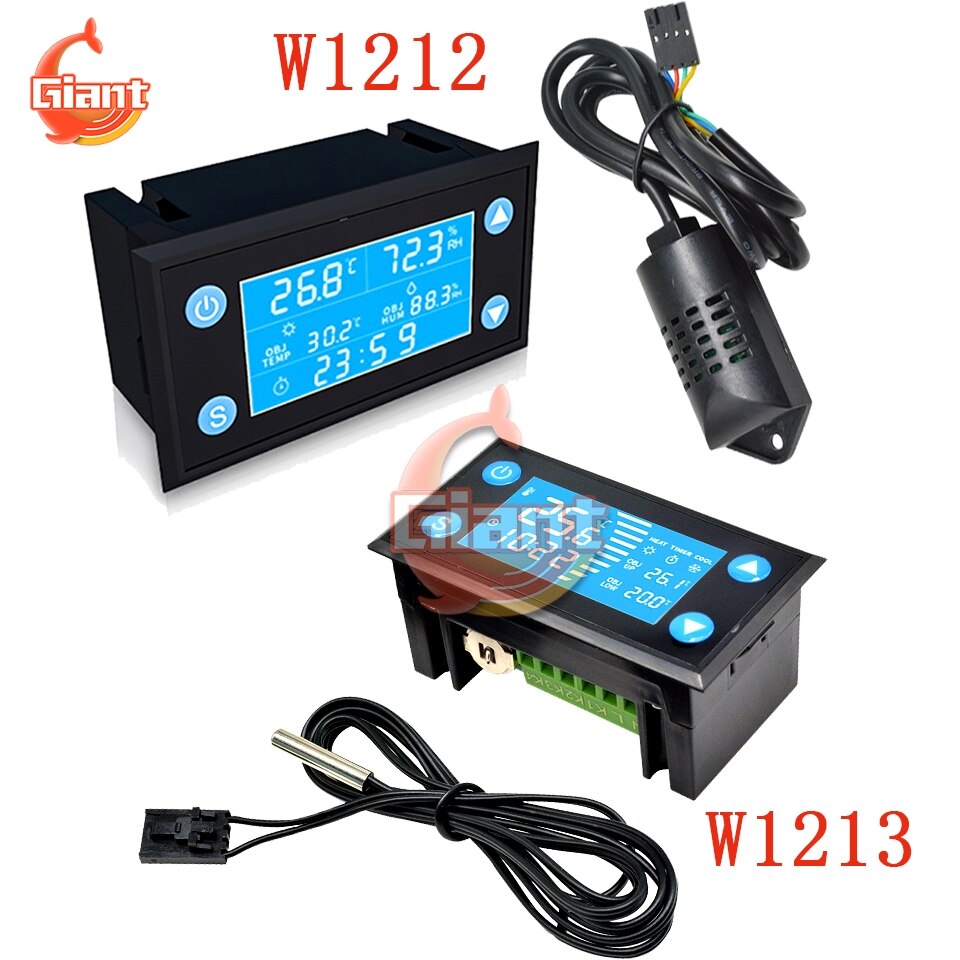

W1212 Digital Temperature Sensor Humidity Meter Thermometer Hygrometer Gauge Temperature Humidity Controller W1213 Thermostat Control Switch

Description:

Note: The product has a clock function with a battery. The product is shipped  without a battery. Battery model is “CR1220 3V button battery” . After install the battery, needs to calibrate time at the first time.

Time Calibration Operation Mode:

In the case of power on, long press the setting key to enter the setting interface, and the up and down keys can select any menu of P1-H2. If you need to calibrate the time, use the up and down keys to select the P5 menu, short press the set key to confirm and enter, and then adjust the time through the up  or down keys.

W1212 Temperature Humidity Controller

Product Parameters:

Product name: Intelligent temperature and humidity controller
Product model: W-1212
Power supply voltage: AC110-220V
Working frequency: 50HZ
Measuring range: -40~+120°C 0~100%RH
Measurement accuracy: temperature ± 0.3°C humidity ± 3%RH
Sensor cable length: 100CM
Size: 79.5*43*36mm
Shell material: surface shell ABS, bottom shell flame retardant ABS

Tips:

①In normal mode, short press the setting key or plus and minus keys to view the setting parameters,
Return to normal mode after 1 second.
②In the setting mode, if no button is pressed, it will automatically return after 10 seconds
Normal working mode.
③In the setting mode, when a certain option value is set, if the power is not pressed
The source key confirms and returns, it will automatically return to the normal working mode after 10 seconds, and the value will not
save.

Key Description:

1. Power button:
①Long press the switch
②In the setting mode, short press is the confirmation key

2. Setting key:

①Short press to view the temperature control mode, short press again to view the humidity control mode
②Long press to enter the setting interface, and short press the setting key to select
Select temperature control and humidity control or time mode (ie P, F and H mode switch)

3. Add key:

①On the homepage, short press to view the target temperature switch time, long press to turn on
Target temperature switching time
②In the menu mode, short press and 1 long press and continue to add

4. Minus key:

①Short press on the homepage to view the target humidity switch time, long press to turn on
Target humidity switch time
②In the menu mode, short press to decrease 1 and long press to continue to decrease

5. Combination key: setting key number minus (restore factory settings)
In the power-on state, pressing and holding the key combination at the same time will restore the factory settings

W1213   Digital Temperature Controller

Product Parameter:

Product name: Intelligent Temperature Controller
Product model: W-1213
Power supply voltage: AC110-220V
Working frequency: 50HZ
Temperature range: -40~+120°C
Temperature measurement accuracy: ±0.5°C
Sensor cable length: 100CM
Size: 79.5*43*35mm
Shell material: surface shell ABS, bottom shell flame retardant ABS

Display Panel Description:

Heat (corresponding icon display): Heating mode, in heating mode, heating
The relay works.
Cool (corresponding icon display): Cooling mode, in cooling mode, cooling
The relay works.
Timer: Timer switch, in timer mode, the icon flashes
OBJ LOW: Set lower limit of target temperature
OBJ HIGH: Target temperature setting upper limit
Horizontal marquee: Increasing. Going up means heating decreasing and going down means cooling

Tips:  Friend, if you want to know  more Temperature Controller Model or the Operate Steps, just feel free to contact with us, thanks.

3950 Temperature Resistance Sensor Cable:

Advantage:

1: New process, stable product performance and long-term work. (annual resistance drift rate ≤ 1%)
2: The resistance value and the B value are high in accuracy, good in consistency, and interchangeable. (The resistance value and B value precision can be respectively Up to ±0.5%)
3: High sensitivity and rapid response. (The temperature coefficient of resistance can reach -(2~5)%/°C)
4: It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.
5: It can be packaged according to the installation conditions used, which is convenient for users to install.
6: Can be made into high-dissipation products, the test current can be much higher than the traditional structure of the sensor.

Applications:

For frequency converters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying  ovens, incubators, etc Temperature measurement and control.

Thermistor Line Package:

1 x 1M / 2M NTC Thermistor Temperature Sensor Waterproof Probe Cable
