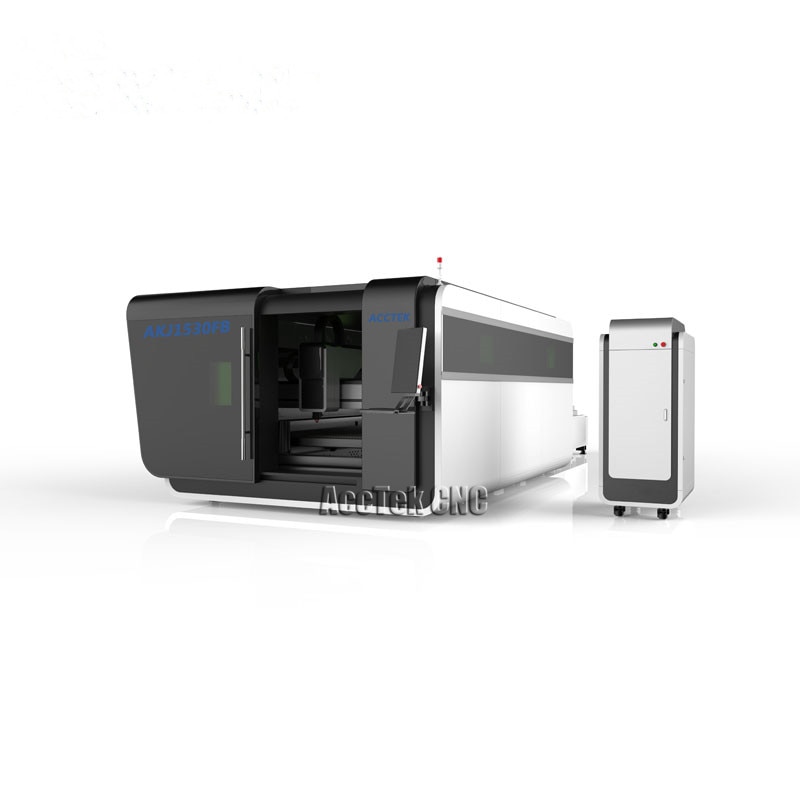

TOP Version Full Enclosed Exchangeable Table High-power Fiber Laser Metal Cutting Machine High Accuracy

TOP Version Full Enclosed Exchangeable Table High-power Fiber Laser Metal Cutting Machine High Accuracy

Product Description

1. High efficiency: high-speed digital motion control by Germany technology system, especially for high-speed, high-precision laser cutting.2. The high power fiber laser cutting machine’s cutting slot is very slim, which can reach up to 0.05mm. It is very suitable for processing precision parts with high efficiency.3. Automatic lubrication system for mechanic, which can lubricate the linear guide rail nearly 500 times/minute to make sure its high precision.4. Stable running: adopting gantry structure with synchronous bilateral gear and rack drive, and high-strength aluminum beams enhance its stability.5. Low energy consumption: photoelectric conversion rate is up to 25-30% which can save energy and power. Electric power consumption for this type fiber cutting machine is only about 20%-30% of the traditional Co2 laser cutting machine.6. Stable worktable and 20 years usage life.7. Easy to maintain and cutting surface is smooth, no burr, saving time and labor.8. Low maintenance cost: fiber laser cutting machines doesn’t need reflect lens, saving much maintenance cost. The key components lifespan can reach 100,000 hours with stable performance.

Technical Details

1

Model

AKJ1530FBC

2

Laser power

1000W/1500W/2000W/3000W/4000W/8000W/12000W(Optional)

3

Dimensions

4600*2450*1700mm

4

Working area

3000mm x 1500mm

5

Repeat positioning accuracy

±0.02mm

6

Maximum speed

120m/min

7

Max  acceleration

1.0G

8

Max  Cutting  Speed

80m/min

9

Motor and amp;driver

Japanese YASKAWA    brand

10

Laser head

Raytools

11

Voltage

380V 50Hz/60Hz/60A

12

Weight

9000Kg

Application and amp; Samples

Specialized fast speed cutting of a variety of metal plates,pipes (add pipe cutting device),mainly used in stainless steel,carbon steel,galvanized sheet,electrolytic plate,brass,aluminum,steel,various alloy plate,rare metal and other materials.

Company Info

Package and amp; Delivery

1.Whole film packaging machine.2.Anti-collision package edge.3.Fumigation-free plywood wooden box with an iron-binding belt.4.According to the customer’s requirements for loading the whole container or LCL at Qingdao Port.

Contact Info

Shine Zhang Sales ManagerMob and amp;Whatsapp and amp;Skype and amp;Wechat:+8618615267359E:[email protected] AccTek Machinery Co.,Ltd

After Sale Service

Before you buy:1- Before you buy, free sample test is available. 2- Timely and effective technical consult with more than 15 year export experience3- Welcome to visit our factory.After you buy:4-The machine is smart and easy to operate, A very detailed manual instruction will help you to know the machine part and how to use it quickly.5- We have two training model: online + offline service.6- Warranty lift time is 2 years Online service: We have big online video data that including machine running test, installing, debugging, maintain, trouble removing,etc. Most of issue you considerate, you will find the solution in the data. Surely,we can face time by whatsapp, skype, wechat to make guide, training. I will 7*24 hours online. You can call me at anytime if you are urgentOffline service: our engineer who can speak English and has more than 15 years machine experience will go to your factory to training if needed. And if possible, you can also send engineer to our factory to learn.
