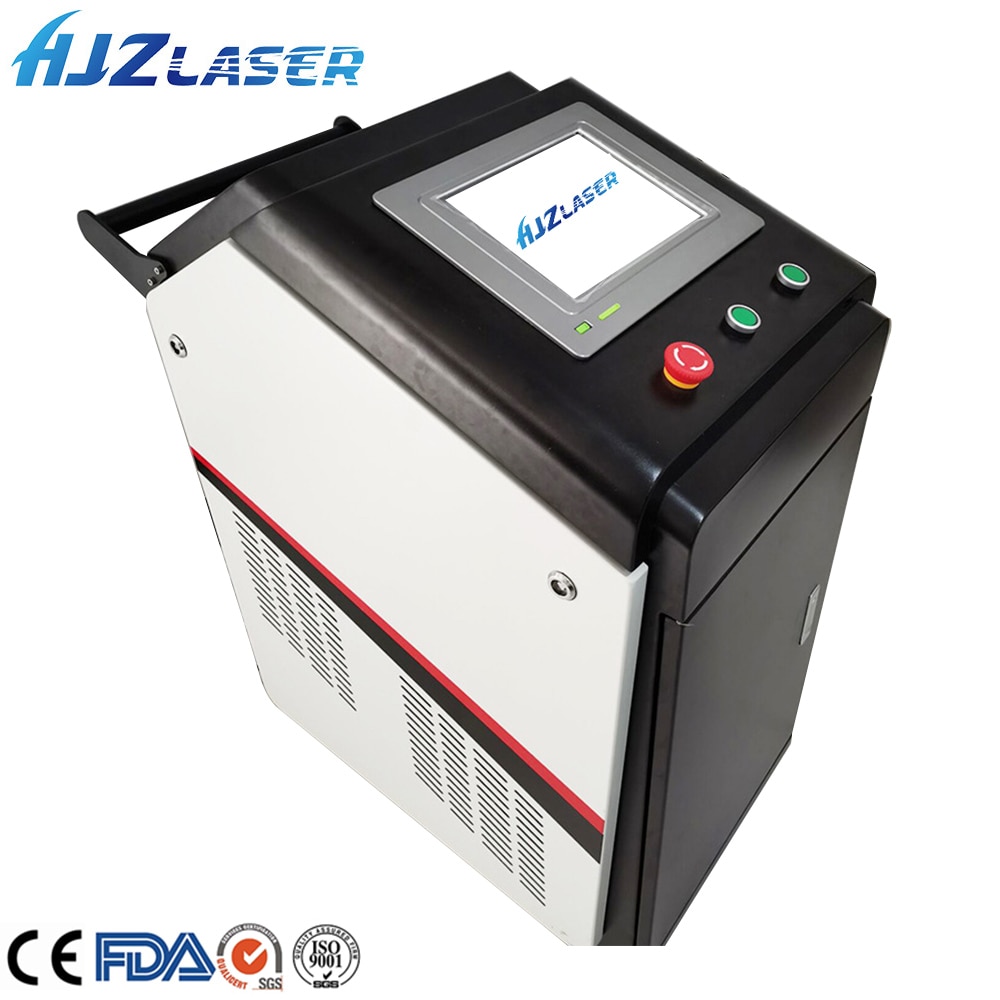

HJZ Fiber Laser Clean machine for Rust Removal
Product Application
Unique self-developed spiral cleaning mode. Spiral series, scanning length and width can be set according to customer’s demands, effectively avoiding the zebra crossing caused by traditional laser cleaning.
High cleaning efficiency, uniform cleaning surface, no damage to substrate of components.
Professional laser cleaning optical design, high damage threshold of scanning mirrors, high beam transmittance and large focus depth of F-theta lens, can meet long-time working of high-power laser cleaning.
Special custom laser and galvo scanner head, high cleaning speed, to meet various high-level laser cleaning application demands.
Simple structure of hand-held cleaning head, light weight, ergonomic design and easy to operate.
Can match with various types of laser, greatly improve the applicable range of this system.
Machine Parameters
Laser source | Raycus fiber laser |
Laser power | 50W/100W/200W/300W/500W |
Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
Machine power consumption | 2500W(within water chiller) |
Setting up environment | Flat, no vibration, no impact |
Working temperature | 0ºC~40ºC |
Working humidity | ≤80% |
Average laser power | ≥200 W |
Power range (%) | 10-100(adjustment ) |
Repeat frequency (KHz) | 10-50(adjustment) |
Cleaning efficiency (m2/h) | 12 |
Focal length (mm) | 210/160 changeable |
Cooling mode | Water cooling |
Size | 1100mm×700mm×1150mm |
Weight | 270Kg |
Scanning width | 10-80mm |
Mobile mode | Handheld |
Main Features of Laser cleaning machine
1)No damage to the base of the material due to the no-touch surface cleaning performance.
2)Precise cleaning technic for the specific area in a selected area.
3)No need of chemistry or other added supplies.
4)Easy to be operated, can be hand-held or auto-cleaned by installing a robotic arm.
5)Small cleaning time consumption and comes with a high quality finishing result.
6)Stable and impacted integrated design which results to no extra maintenance.
Packaging and amp; Shipping
1. HJZ CNC machine and accessories are covered by plastic sheet first.
2. Then the whole machine is packed by plywood case used for export.
3. HJZ CNC machine can be delivered by sea, by train, or by plane depending on customers.
FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: What is your terms of payment ?
A: Payment and lt;=1000USD, 100% in advance. Payment and gt;=1000USD, 30% T/T in advance ,balance before shipment.
