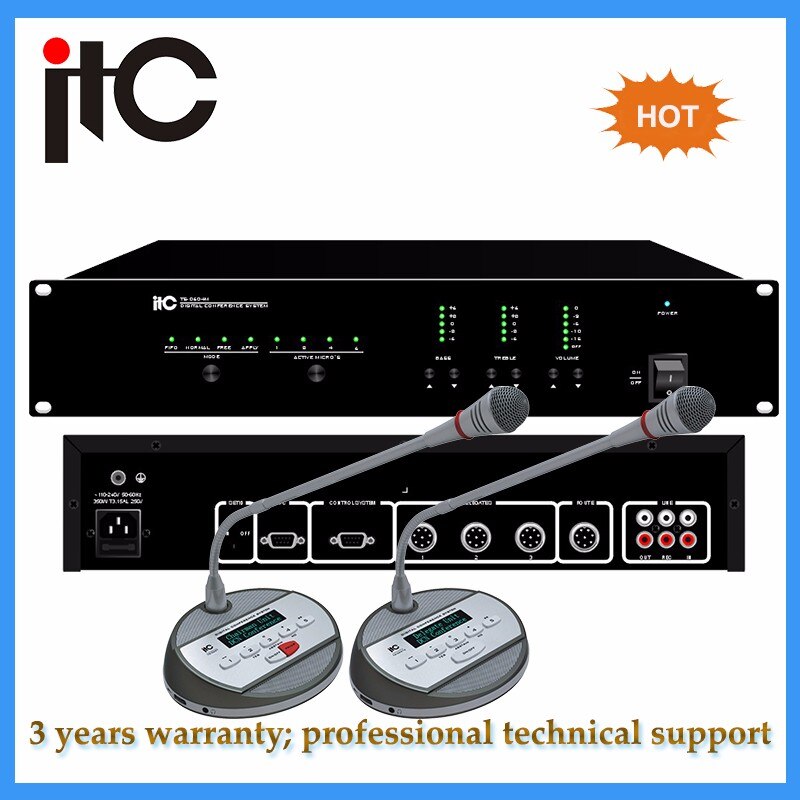

ITC TS-0604M Digital Audio Conference Controller Conference Room Equipment
Features
* Conference system of discussion and voting functions.
* One controller supports 128 units, expansion up to 4, 096 units.
* Four meeting modes: first-in/first out, normal, free and apply.
* Speech microphone quantity selector: 1, 2, 4 and amp; 6, chairman units are free of control.
* All of the system are communicated through standard and amp; secured 8 Pins conference system cable.
* Three channel outputs for microphone units connection.
* All of the equipments are connected hand-by-hand for easy wiring and maintenance.
* Built-in a digital EQ for signal processor and noise delete.
* Two line outputs for sound amplification system.
* Voting and data management features could be done by link with PC where installed software.
* Support 6 cameras by link together with auto-video tracking controller TS-0690.
* Secure ground line protection from 8,000 volt static electricity.
* Rack mount and tabletop design.
* AC 120V or 220V, 50-60Hz operation.
Specification
|
Model |
TS-0604M |
|
Description |
Conference system controller |
|
Power Supply |
AC 120 or 220V; 50-60Hz |
|
Power Consumption |
10W |
|
Max Power Consumption |
350W |
|
Output Power |
110W/24V per channel |
|
Aux Output |
2V, 100Ω, unbalanced RCA type |
|
Frequency Response |
20-20KHz |
|
S.N Ratio |
and gt;90dB |
|
Total Harmonic Distortion |
and lt;0.1% |
|
Overloading Distortion |
1% |
|
Crosstalk Attenuation |
50dB |
|
Connector |
five 8 pin connector, two RS232 connectors and 8 pairs of RCA |
|
Dimensions |
484(L) x 305(W) x 88(H)mm |
|
Weight |
4.78kg |
|
Finish |
Black |
