Overview

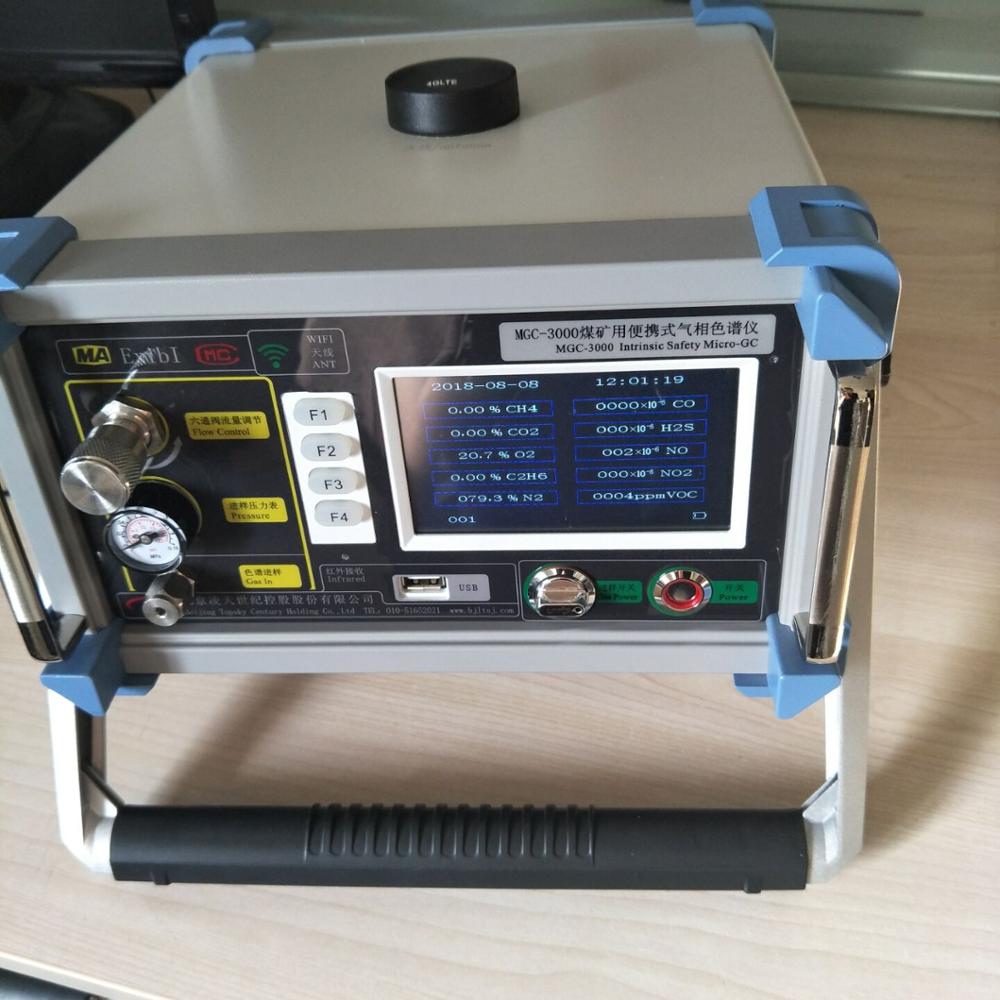

MGC-3000 Portable Gas Chromatograph is mainly used for multi-component analysis of air composition in underground mine, full-component analysis of mine gas in mine operation site, laboratory analysis, early prediction and prediction of spontaneous combustion in coal seam, monitoring the variation of gas composition concentration  during coal  spontaneous combustion, preventing spontaneous combustion and Gas explosion.

When the instrument is used in the field analysis of mine operation, direct sampling is adopted in the field, and no auxiliary sampling equipment is needed.

Features

★1. 4.3 inch color display.

★2. Software for gas explosion triangulation analysis.

3. Using high precision gas thermal conductivity sensor and silicon micro-technology, it has low power consumption, wide temperature range, high sensitivity, low detection limit and high detection accuracy.

4. Light weight, compact size, novel design, self-contained rechargeable lithium battery, suitable for emergency monitoring and field analysis;

5. It can analyze CH4, CO2, O2, C2H6, N2, CO, H2S, NO, NO2, VOC and other gases at one time.

6. The accuracy of O2/N2 reaches 0.1%, CH4/CO2/C2H6reaches 0.01%, other gases reaches 1 ppm.

7, rechargeable lithium battery.

★8, audible and light alarm: greater than 85DB.

★9. built-in  miniature air pump.

★10. The analysis cycle is short.

11. The analysis software operates intelligently and automatically completes sample sampling, data analysis, historical query, switching curve, direct display of results and printing of reports.

★12. The interface in Chinese and English.

★13.It can cooperate with remote intelligent on-line sampling system and automatically take gas from underground disaster area for real-time on-line gas analysis on the ground without manual sampling and matching device.

14, network communication function

4G: can be transmitted to mobile phone or PAD through 4G mode. APP can query real-time detection data.

★15. With our “Tianyun TS-Cloud Automatic Calibration Management Platform” software, the instrument data can be transferred into the PC computer, and the data processing and analysis can be more convenient.

16, product certification: explosion-proof certificate, coal safety certificate

Specification:
