Description

Used for crimping plier to press tight the wire and terminal blocks.
High durability, long service life, easy to use, high precision.
Durable, wear resistant and energy saving.
Applicable to most of non-insulated crimp terminals and connectors.
Easy and quick to change the jaw molds with a hex key.
Specifications:
Material: Alloy Steel .

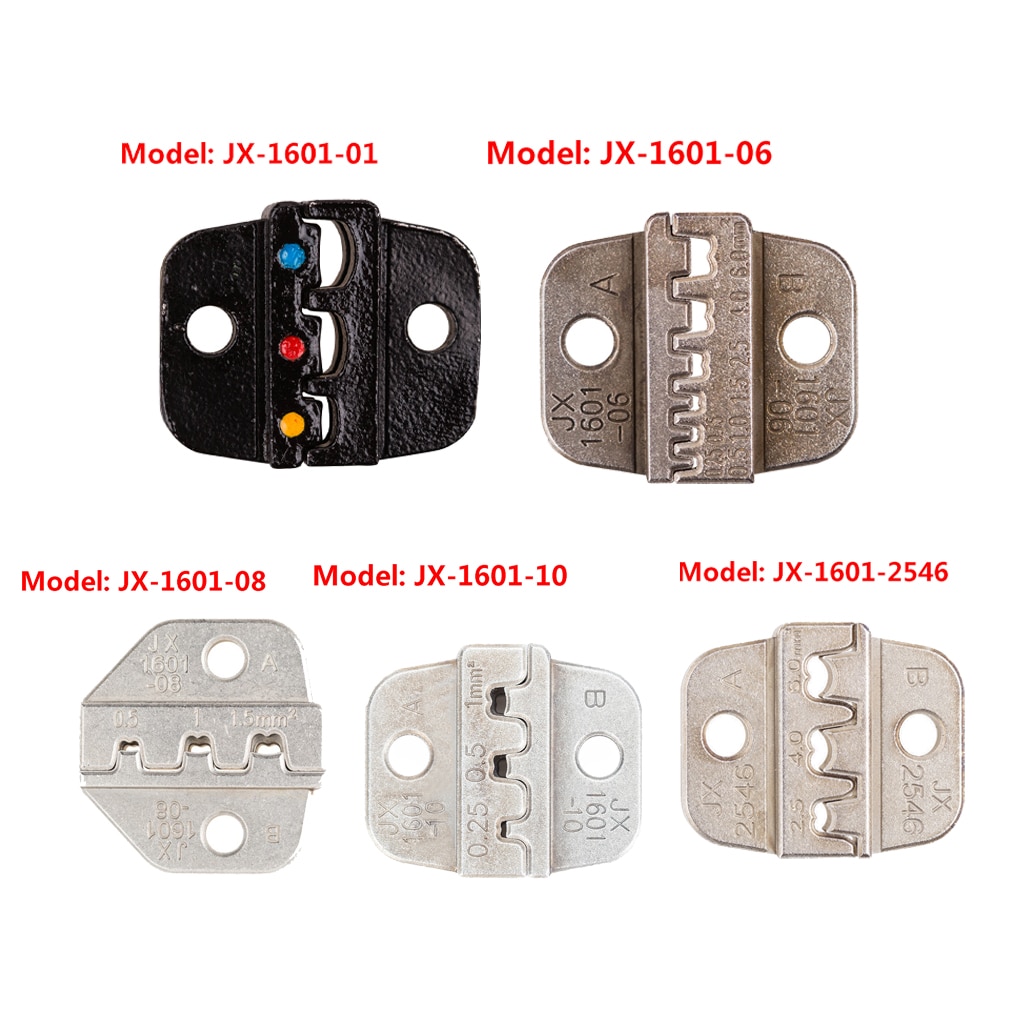

Model: JX-1601-01.
Suitable Terminals and amp; Crimping Range of Wire Crimper:
JX-1601-01: Color Code Nests + Insulated Terminals 24-14 AWG (0.25-2.5mm⊃2;).
Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W).
Max Thickness: JX-1601-01: 9mm/0.35″.
Min Thickness: 4mm/0.16″.

Model: JX-1601-06.
Suitable Terminals and amp; Crimping Range of Wire Crimper:
JX-1601-06: Cord End Terminals 24-10 AWG (0.25-6.0mm⊃2;).
Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W).
Max Thickness: JX-1601-06: 12mm/0.47″.
Min Thickness: 4mm/0.16″.

Model: JX-1601-08.
Suitable Terminals and amp; Crimping Range of Wire Crimper:
JX-1601-08: Non-insulated Open Barrel Connector 26-16 AWG (0.14-1.5mm⊃2;).
Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W).
Max Thickness: JX-1601-08: 7mm/0.28″.
Min Thickness: 4mm/0.16″.

Model: JX-1601-10.
Suitable Terminals and amp; Crimping Range of Wire Crimper:
JX-1601-10: Non-insulated open barrel connector 28-18 AWG (0.1-1.0mm⊃2;).
Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W).
Max Thickness: JX-1601-10: 7mm/0.28″.
Min Thickness: 4mm/0.16″.

Model: JX-1601-2546.
Suitable Terminals and amp; Crimping Range of Wire Crimper:
JX-1601-2546: MC4 Solar Connector Terminals 14-10 AWG (2.5-6.0mm⊃2;).
Item Size: Approx. 30 * 25mm / 1.18 * 0.98in (L*W).
Max Thickness: JX-1601-2546: 6mm/0.24″.
Min Thickness: 4mm/0.16″.

Note: Please notice the anastomosis direction of die and terminal when operation to avoid being burst open.
Package List:
1 * Wire Crimper Jaw.
