SALE 12% OFF

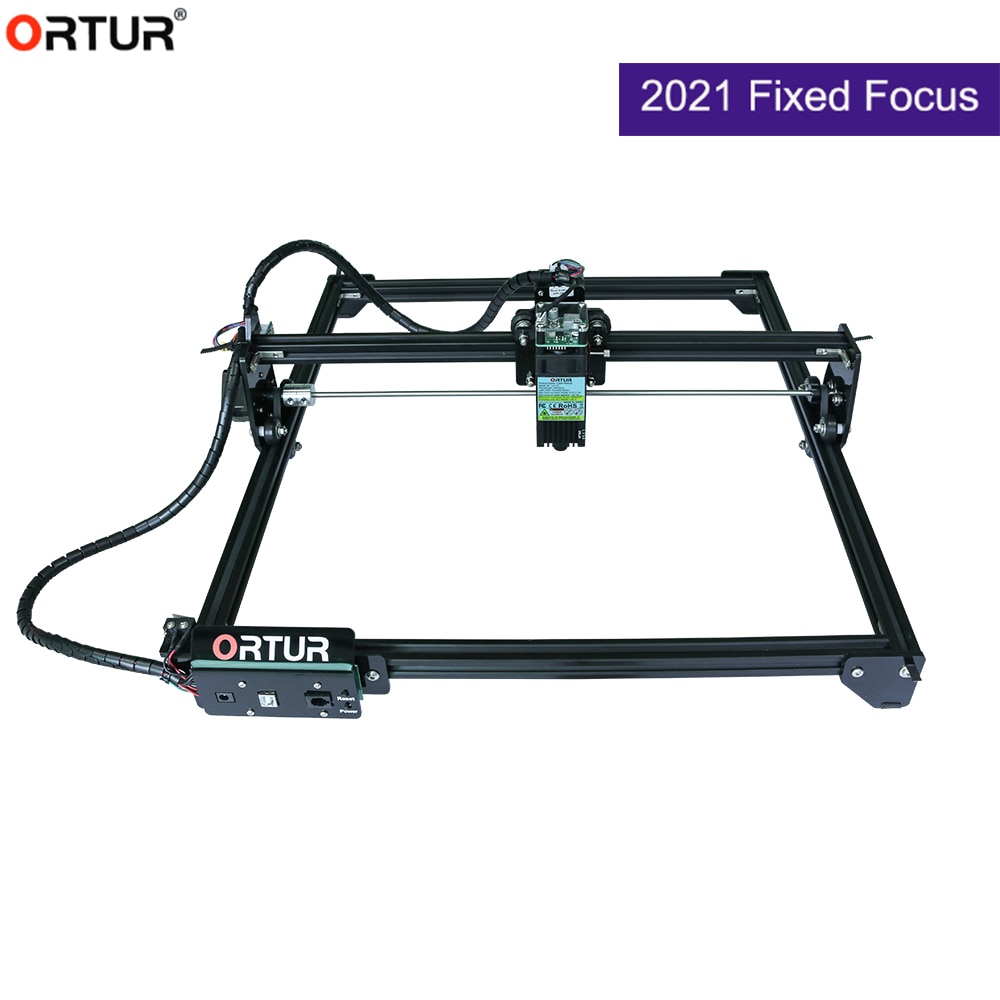

OLM-2 Ortur Laser Engraver 7/15/20W Personal CNC Laser Cutter Engraver DIY Laser Logo Printer For Metal Engraving Machine Tools
Brief Introduction:
● The Laser Master 2 – 7W is good at picture engraving.
● The Laser Master 2 – 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 – 20W is higher power and supports a faster engraving and cutting. Main Features:
●Specialized Motherboard with STM32 MCU
It could preprocess 32 instructions, support baud rate as high as 921600, more powerful!
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 – S1000, compared to 8bits desktop laser engravers, which only has S0 – S255, Ortur Laser Master could control laser beam more accurately, could even use the high power laser unit to “draw” a picture on paper , that the 8bits high power laser engravers could not do.
● Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )
●Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
●Laser Beam Safety Guard
If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire.
●Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case the motor stopped moving, to prevent fire.
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser LaserGRBL for engraving and cutting.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It’s the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 – 20 minutes to install the machine.
● 400 x 430 mm large engraving area.

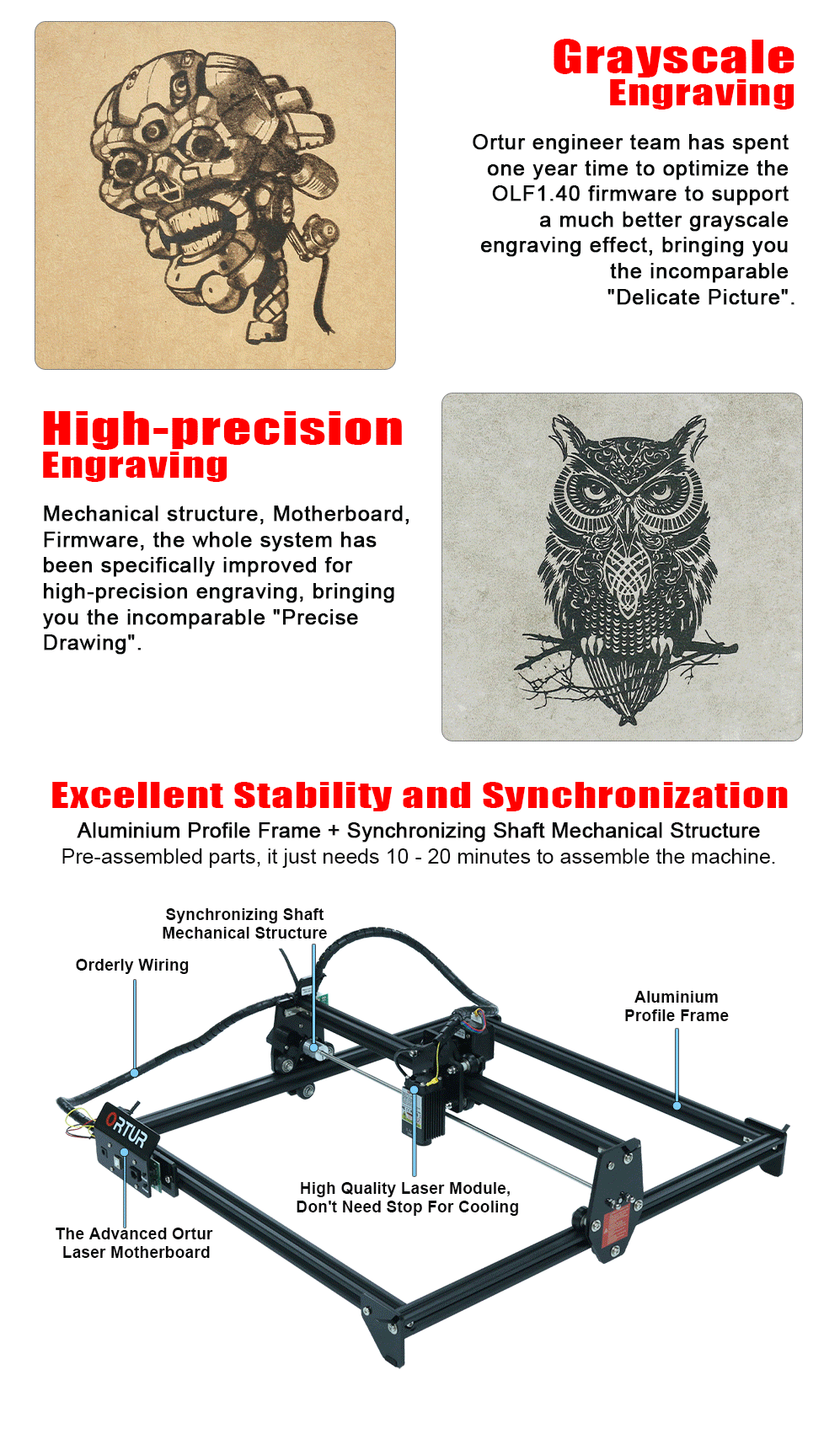

● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving. Specification:
● Motherboard: 32 bits motherboard with STM32 MCU
● Firmware: Ortur Laser Master Firmware
● OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux ( Working with LightBurn )
● Power of Laser Engraver: 36W, 12V 3A

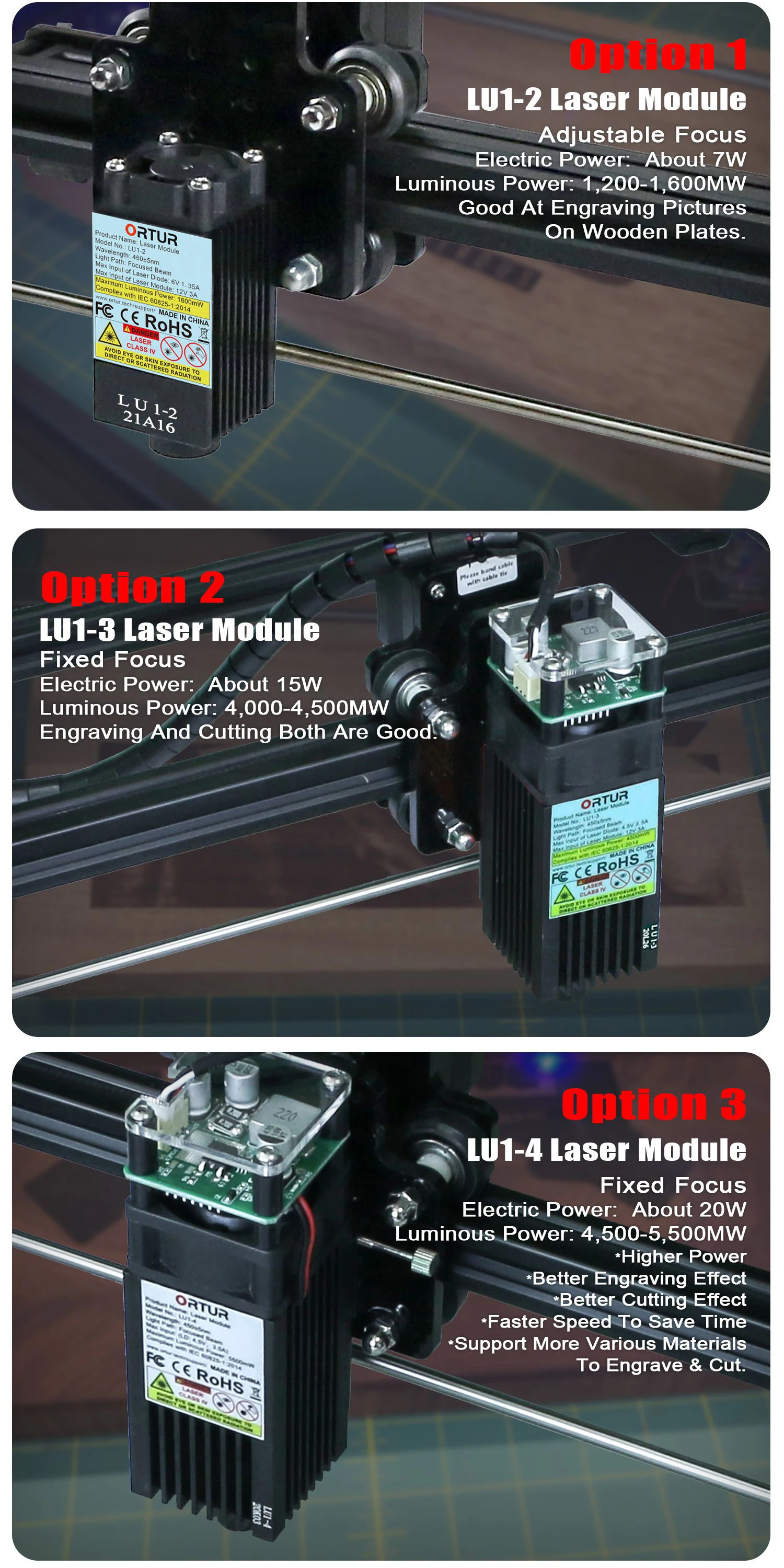

● Electrical Power of Laser Module: 7W, 15W, 20W
● Wave Length: 445 ± 5nm
● Variable Focus: Yes
● Default Focal Length: 55MM for 15W and amp; 20W Laser Module; 58MM for 7W Laser Module
● Input Format: NC, BMP, JPG, PNG, DXF, etc.

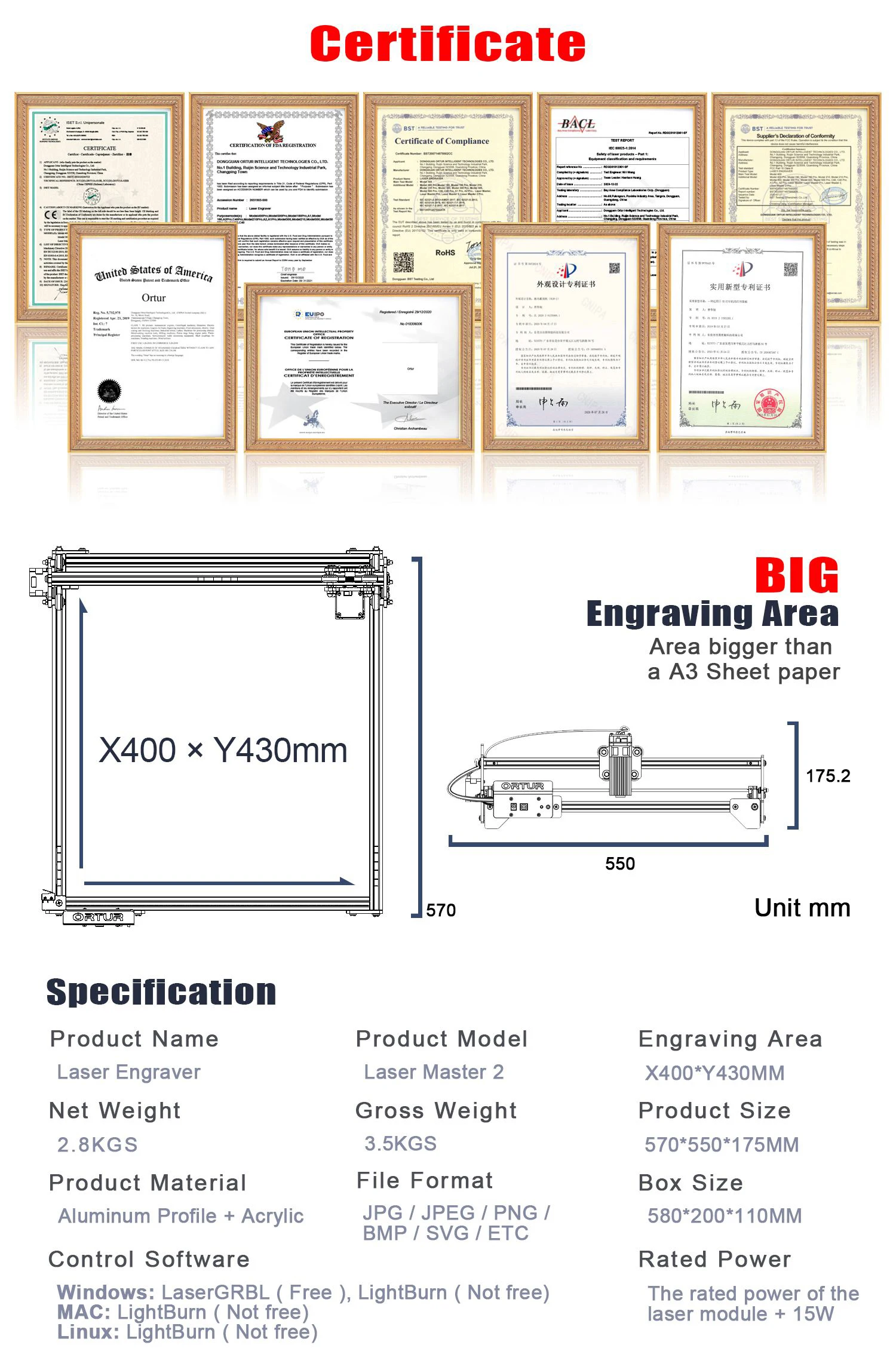

● Carving Area: X: 400MM x Y: 430MM
● Carving Speed: 3000MM / Min and less
● Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it’s about 0.81um pixel precision )
● The Laser Master 2 – 7W is good at picture engraving.
● The Laser Master 2 – 15W is the most cost-effective, available for both engraving and cutting.
● The Laser Master 2 – 20W is higher power and supports a faster engraving and cutting. Main Features:
●Specialized Motherboard with STM32 MCU
It could preprocess 32 instructions, support baud rate as high as 921600, more powerful!
●The Most Advanced 32Bits Laser Engraver Firmware
Ortur laser master firmware, smarter, faster, higher precision and easier to use.
● Laser power range could be S0 – S1000, compared to 8bits desktop laser engravers, which only has S0 – S255, Ortur Laser Master could control laser beam more accurately, could even use the high power laser unit to “draw” a picture on paper , that the 8bits high power laser engravers could not do.
● Engraving speed could be as high as 3000MM/Min. ( If do not consider the laser carving result, the velocity of movement could be as high as 1000MM/S )
●Active Position Protection
There is a G-sensor on the motherboard, if the machine detects unauthorized movement, the laser beam will stop.
●Laser Beam Safety Guard
If your computer system halted or USB cable disconnected, led to that the laser engraver stops moving, the laser beam will stop, to prevent fire.
●Exposure Duration Detection and Limitation
If laser engraver is under control, but users forget to operate and keep the laser beam working, extra safety will cut off in case the motor stopped moving, to prevent fire.
● LaserGRBL ( free software ) supports Windows XP, 7, 8, 10. LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser LaserGRBL for engraving and cutting.
● LightBurn ( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It’s the most popular paid carving software in the world, very easy to use.
● This laser engraver supports PWM mode.
● Pre-assembled parts, just need 10 – 20 minutes to install the machine.
● 400 x 430 mm large engraving area.
● Aluminum profile frame + structured cabling, solid structure, smooth operation, attractive appearance
● Synchronizing shaft mechanical structure, avoid out-sync on two Y rails, during full speed engraving. Specification:
● Motherboard: 32 bits motherboard with STM32 MCU
● Firmware: Ortur Laser Master Firmware
● OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux ( Working with LightBurn )
● Power of Laser Engraver: 36W, 12V 3A
● Electrical Power of Laser Module: 7W, 15W, 20W
● Wave Length: 445 ± 5nm
● Variable Focus: Yes
● Default Focal Length: 55MM for 15W and amp; 20W Laser Module; 58MM for 7W Laser Module
● Input Format: NC, BMP, JPG, PNG, DXF, etc.
● Carving Area: X: 400MM x Y: 430MM
● Carving Speed: 3000MM / Min and less
● Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it’s about 0.81um pixel precision )
Specification
|
General |
Brand: Ortur |
|
Dimensions and Weight |
Product weight: 2.8000 kg |
|
Package Contents |
Package Contents: 1 x Laser Engraving Machine |
FAQ:
About Ortur Online Store:
100% factory manufacturerlocated in China, welcome to visit our factory whenever you like!
We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
It is important to know that our factory do not just sell “boxes”, but we offer support and advice to get the best results with the printer you choose.
We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
About Tax:
Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
About customs charging fee . no body can control , every country customs has different Import and export tariff system.
About Maintenancece:
All products have12 months warrantyagainst manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. Usually we do not accpt return. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
About delivery:
we need 1-3 days handle order in factory when payment received. As normal, it needs 5-7 days update first tracking and 15-60 days for delivery. If you do not receive the goods as promised,pls feel free to contact us before opening a dispute or leaving us a negative feedback.We would reply you within 24 hours and provide the best solution. If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra fees.
