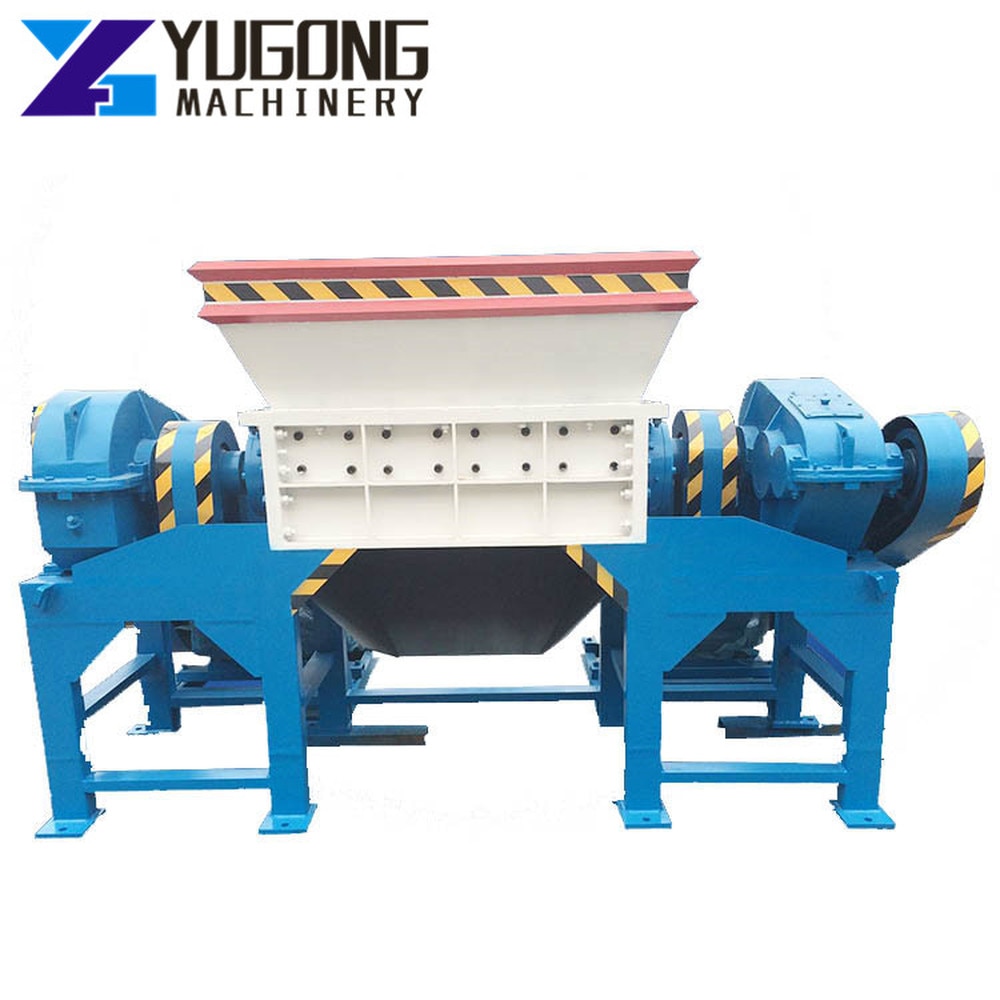

Old Tire shredding machine/rubber crushing Shredder manufacturer
Introduction
The shredder is a kind of machine used for crushing. It is usually used to deal with raw materials or leftover material to make it smaller.
It is widely used in industrial waste recycling, medical recycling, electronic recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry, etc.
It is also suitable for crushing the big solid material like television, washing machine, the shell of the refrigerator, big size pipe, pipe fittings, forklift splint, tires, packing barrel, vehicle body, aluminum, copper, and steel.
Characters
1,This product can be broken into large pieces of material,basket material,pipe material, plate material,wood,tyre and large roll film which are difficult to be separated by single-spindle shredder.
2,The combined structural outer frame with ultra-thick plate precision processing, the strong rotation axis of large-angle hexagonal column, the large-caliber solid input hopper, therefore, it is safe to input large materials.
3,The unique rotary knife is designed and processed in thickness, shape and arrangement order, with strong shear force and sharp blade, which can achieve strong crushing.
4,PLC control, when the treatment is too much, with positive and reverse operation and stop function to protect the body;
5,Low speed operation, low noise, less dust;
6,The tool is made of special alloy steel, which is strong and durable.
Detailed Data
|
Model |
Dimension(m) |
Crushing space (mm) |
Blade Dia. (mm) |
Blade thickness (mm) |
Blade Quantity (pieces) |
Power (Kw) |
Weight (Kg) |
|
SC500 |
2.8*1.3*1.85 |
500*480 |
200 |
20 |
24 |
11*2 |
2200 |
|
SC800 |
3*1.3*1.85 |
800*480 |
200 |
20 |
40 |
15*2 |
2500 |
|
SC1000 |
3.3*1.9*2.2 |
1000*690 |
300 |
40 |
24 |
22*2 |
5200 |
|
SC1200 |
3.6*2*2.2 |
1200*690 |
300 |
40 |
30 |
30*2 |
6400 |
|
SC1500 |
4.18*2.1*2.4 |
1500*850 |
550 |
50/75 |
30/20 |
55*2 |
9000 |
|
SC1800 |
5.8*2.4*3.3 |
1800*1206 |
550 |
50/75 |
36/24 |
75*2 |
13600 |
|
SC2000 |
6.4*2.7*3.5 |
2000*1490 |
600 |
50/75 |
40/26 |
90*2 |
20100 |
|
SC2500 |
7.5*3.2*3.8 |
2500*1800 |
600 |
75/100 |
32/24 |
110*2 |
25000 |
|
SC3000 |
8.6*3.5*4 |
3000*1800 |
600 |
75/100 |
40/30 |
160*2 |
31000 |
Note: According to different materials shredding, cutter and the number of teeth different, can be customized. This parameter only for reference.
More photos
1.Q:How do i know which type of drilling rigs suitable to me?
R:Please inform us your application,drilling objects(Rock/soil/sand etc),drilling depth and drilling diameter,we will recommend the most suitable one for you.
2.Q:What is the MOQ?
R:MOQ is 1 set,we allow OEM and sample order,but the cost are paid by your side.
3.Q: What is the warranty time of your products?
R: The warranty time is 12 months from the date of the commissioning.
4.Q: How does your factory do regarding quality control?
R: All products have to pass strict inspection before they ship out.If you need other certificate and quality control,please contact us.
5.Q: Where is your factory located? How can I visit there?
R: Welcome to visit us!Our factory is located in Zhengzhou City, Henan Province,China.Contact us ahead before you go visit,then we can fully arrange the schedule and meet you.
Contact us to get latest quotation and detailed data.
