LY G850 Semi-automatic 3 Zones Hot Air Align BGA Rework Solder Station

SALE 7% OFF

LY G850 Semi-automatic 3 Zones Hot Air Align BGA Rework Solder Station

LY-G850 Semi-automatic 3 Zones Max 50x45cm Big Area Hot Air Align BGA Rework Station 220V 6800W



Parameter

Power

6800W

Up heater power

1200W

Down heater power

1200W

IR heater power

4200W(2400W control)

Power supply

(Single Phase)    AC 220V±10  50Hz

Position way

Optical lens+  Vshape holder+laser positioning

Temperature control

High precision  K  shape  sensor(Closed Loop),up and down independent temperature heating zone,Precision can reach±1℃

Material

High sensitive touch screen+temperature control module+PLC+step drive

PCB  Size

Max:500×450mm  , Min:  10×10mm

Thermo-couple Ports

4pcs

Chips magnification times

2-30

PCB thickness

0.5-8mm

BGA size

0.8mm-8cm

Min.chips pitch

0.15mm

Mounting BGA weight

1000G

Mounting precision

±0.01mm

Overall dimension

L670×W780×H850mm

Optical alignment lens

Motor drive can move front back right left

Weight of machine

About 90kg

LY G850 BGA  Rework station Feature

·             Touch screen with human interface,heating time,heating temperature,reflow temperature rate,advanced alarming,vacuum time all can set inside the touch screen,simple operation,easy learn.

·             PLC import from Japan,temperature control module use China famous brand,display three temperature curves,4pcs independent temperature sensor,which can measure the different place temperature of the chips,make sure the rework rate.

·             Three independent heating temperature zone,each heating temperature zone can independently set the heating temperature ,heating time,rate;six heating temperature sections,Simulate the reflow oven heating mode[preheating,constant,warming,soldering,reflow soldering,cooling.

·             Auto feed chips,pick up chips,blowing chips;auto recognition chips place during alignment  Multifunction model weld,remove,mount,manual,realize semi auto and auto function ,meet customer’s requirement

·             High precision K-type Closed Loop import from USA together with our company special heating way,the soldering rang of temperature within±1 degree

·             Imported optical alignment system with 15’’high definition monitor;high precision micrometer adjust X/Y/R axis;make sure the alignment precision within 0.01-0.02mm.

·             Top heater and mounting heater design 2 in 1 which can make the mounting more precision;there are many sizes of BGA nozzles which can meet different chips sizes,BGA nozzles can easy change,we accept customize.

·             High automatic and precision,Completely avoid human operation error; it is good for reworking lead free craft and double BGA,QFN,QFP,capacitance-type resistor components which can achieve good result.

·             Additional monitoring camera which can observe the solder ball melting and easy to check the temperature curve and the soldering result(optional function )

Item pictures

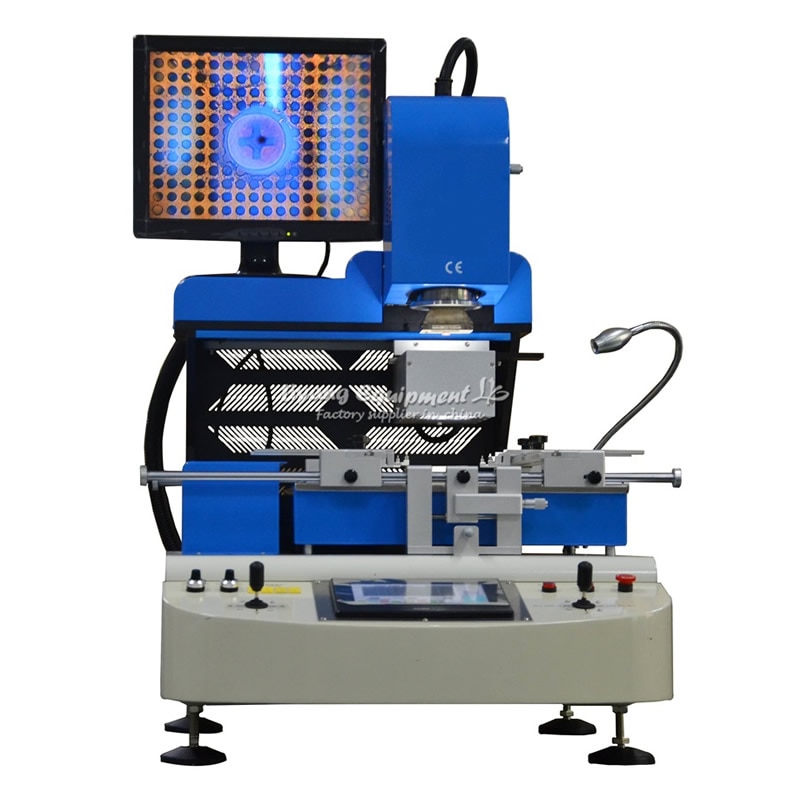

LY G850 Semi-automatic 3 Zones Hot Air Align BGA Rework Solder Station
