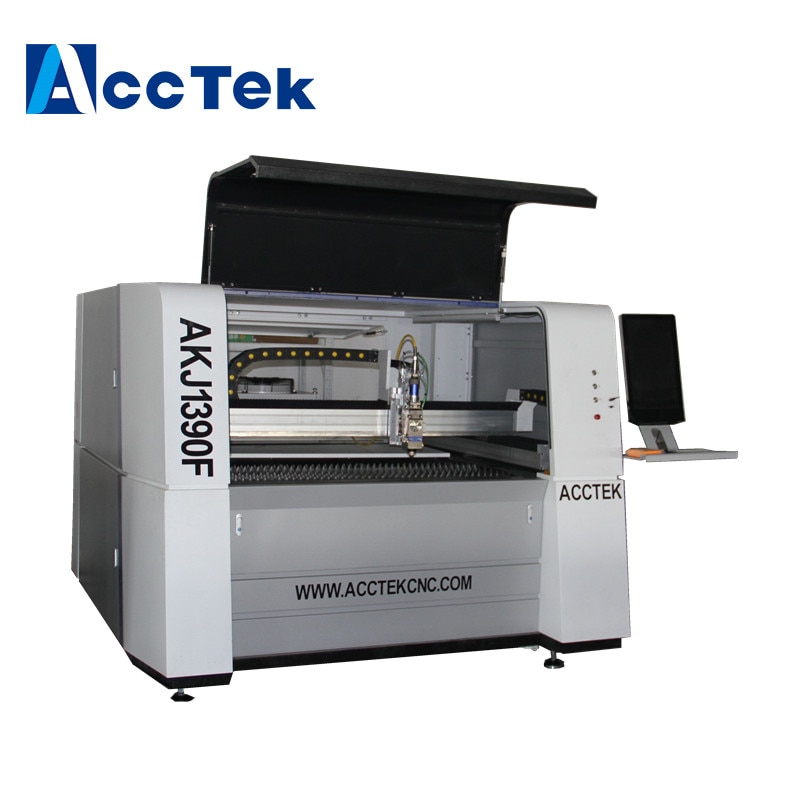

Jinan AccTek Fiber Laser Cutter machine AKJ1390F With High Quality
Product Description
Applied materials
AKJ1390 fiber laser cutting machine as one
classic model, widely used in life, such as processing of stainless steel
kitchenware, storage cabinets other cabinets. Used for cutting a variety of
metal plates, pipes (add pipe cutting device), mainly used in stainless steel,
carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various
alloy plate, rare metal and other metal materials.
Application industry
AKJ1390 fiber laser cutting machine are widely
used in manufacture billboard,advertising, signs, signage, metal letters,
kitchen ware, advertising letters, sheet metal processing, metals components
and parts, ironware, chassis, racks and amp;cabinets processing, metal crafts,
metal art ware, elevator panel cutting, hardware, auto parts, glasses frame,
electronic parts, nameplates, etc.
Main Advantage
1.High speed, high precision, high efficiency and low cost
2.Easy on operation, fiber optical path, without tediously adjustment on optical path
Compact structure, good sealing, strongly adaptable to changes in the environment.
3.With the perfect automatic nesting system
which can save time, save the materials, the sheet utilization ratio up to 95%
4.Moving crossbeam, imported high precision
racks and linear guide rail, stable transmission, high precision.
5.Using professional and powerful Shanghai
Cypcut fiber cutting controlling system that based on Windows operating system,
with good Human Machine Interaction and easy operation.
6.Laser is produced without gas and it could
use air to cut sheet metal
7.Machine frame, crossbeam and worktable adopt
integral welding structure. With stress relief annealing and vibration stress
relief treatment, it can completely eliminate the welding and processing
stress, maintaining high strength and precision, keeping the normal use of 20
years without deformation
Main details
FOUR core detail tell you How to guarantee cutting performance and quality.
lRaytool cutting head:
The Raytools Laser
Cutting Heads are released based on Switzerland RAYTOOLS, which are suitable
for medium and high power fiber lasers in industrial applications
lRaycus
generator: High performance and economics
Raycus has an efficient and professional R and amp;D and
production team. The single module CW fiber laser series not only can meet
diversified demands of customers to the greatest extent, but also provide
personal customization service. Now laser output connector is QBH, with
multiple control modes.
Product Parameter
1 |
Working area |
1300*900mm |
2 |
Overall dimensions |
2160*2160*1630mm |
3 |
Laser power |
1000W/1500W |
4 |
Control system |
Cypcut control system |
5 |
Transmission |
High precision Taiwan TBI ball screw |
6 |
Guide rail |
Taiwan HIWIN linear guide rail |
7 |
Driving system |
Japanese Yaskawa servo motor and driver |
8 |
Electronic components |
French Schneider electronic components |
9 |
Max speed |
20m/min |
10 |
Positioning accuracy |
±0.01mm |
11 |
Repeat positioning accuracy |
±0.008mm |
12 |
Maximum acceleration |
0.5G |
13 |
Min line width |
0.1mm |
14 |
Power requirements |
220V/380V, 50/60Hz |
15 |
Cooling way |
Water cooling |
16 |
Graphic format supported |
AI, BMP, DST, DXF, DXP, PLT |
17 |
Compatible software |
AutoCAD, Photoshop, Coreldraw |
18 |
Machine operating temperature |
0 ℃ -40 ℃ |
19 |
Packing size |
2260*2260*1730mm |
Optional part
If you wanna upgrade the machine ,some optional part for your reference:
lMore powerful Raycuslaser
We supply laser power from 0.5KW to 12KW to meet different customer’s cutting demands.
lIPG Laser Generator
IPG Laser Generator is available from 1.0KW to 12KW. It has better performance in cutting aluminum,brass and cooper.
Samples
Package and amp; Delivery
1.Whole film packaging machine.
2.Anti-collision package edge.
3.Fumigation-free plywood wooden box with an iron-binding belt.
4.According to the customer’s requirements for loading the whole container or LCL at Qingdao Port.
More importantly,should you rally to know what we can do for you?
OTO bring you 360°service
lBefore you buy:
1-Before you buy, free sample test is available.
2-Timely and effective technical consult with more than 15 year export experience
3-Welcome to visit our factory.
lAfter you buy:
4-The machine is smart and easy to operate, A very detailed manual instruction
will help you to know the machine part and how to use it quickly.
5-We have two training model: online + offline service.
6-Warranty lift time is 3 years
Online service:
We have big online video data that including machine running test, installing, debugging,
maintain, trouble removing,etc. Most of issue you considerate, you will find
the solution in the data. Surely,we can face time by whatsapp, skype, wechat to
make guide, training. I will7*24 hours online.You can call me at anytime if you are urgent
Offline service:
our engineer who
can speak English and has more than 15 years machine experience will go to your
factory to training if needed. And if possible, you can also send engineer to
our factory to learn.
