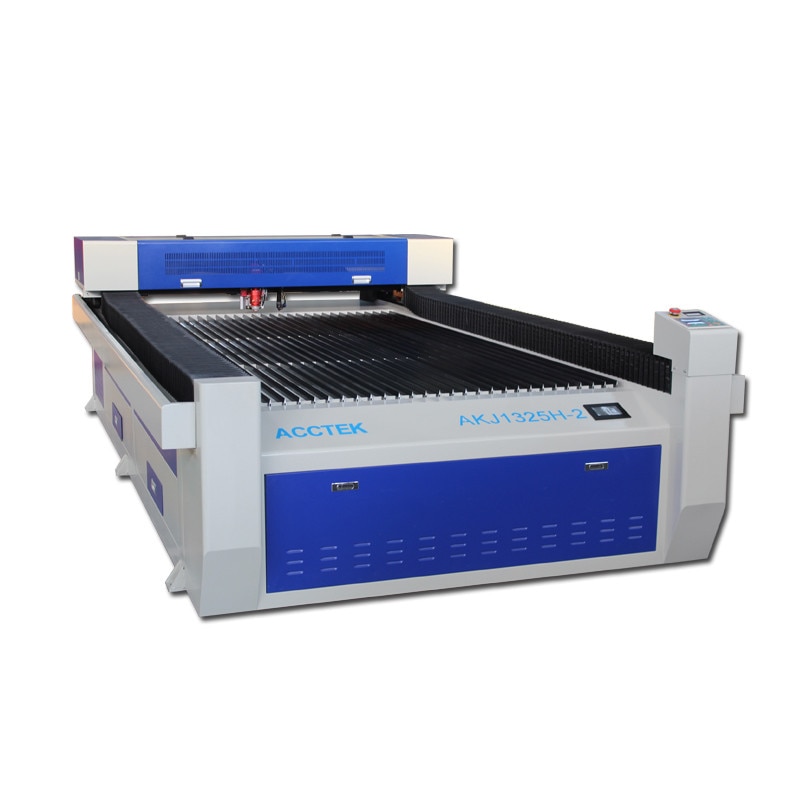

Hot Sale Dual Heads 1325 Co2 Laser Cutting Machine for Metal Wood Plywood Stone 1325 150watt
Parameters of hot sale dual heads 1325 co2 laser cutting machine:
No. |
Description |
Parameter |
1 |
Model |
AKJ1325H-2 |
2 |
X,Y Working Area |
1300*2500mm |
3 |
Table Type |
Knife/Honeycomb worktable |
4 |
Laser Power |
Reci W6 130-150w |
5 |
Laser Type |
Sealed CO2 laser tube |
6 |
Lifetime of Laser Tube |
8,000-10,000 hours |
7 |
Transmission |
Fulong belt |
8 |
Control System |
Ruida (USB interface) |
9 |
Driving System |
Leadshine Stepper motor and driver |
10 |
Cooling System |
Water cooling |
11 |
Engraving Speed |
0-600mm/s |
12 |
Cutting Speed |
0-200mm/s |
13 |
Minimum Shaping Character |
English: 1 x 1mm |
14 |
Resetting Positioning Accuracy |
±0.03mm |
15 |
Graphic Format Supported |
BMP, PLT, DST, DXF, and AI |
16 |
Graphic Format Supported |
CorelDraw, AutoCAD, Photoshop |
17 |
Accessories |
Exhaust Fan 550w, Air pump |
18 |
Power Supply |
220V±10% 50Hz or 110V±10% 60Hz |
19 |
Gross Power |
and lt;1,000W |
20 |
Operating Temperature |
0-45°C |
21 |
Operating Humidity |
5- 95% |
22 |
Package |
Strong plywood box |
23 |
Package Dimension |
3750*2030*1130mm |
24 |
Net Weight |
880KG |
25 |
Gross Weight |
1050KG |
Machine Configurations:
# Working size: 1300*2500mm
# Ruida 6332M control system with LCD panel
# RECI W6 150W laser tube
# Stepper motor and Leadshine 583 drivers
# Taiwan high accuracy square guide rails
# Shanghai Fulong belt
# Singapore imported 1*focus lens and 3*reflect mirrors
# Knife table
# Water cooling system with water chiller CW5200
# Exhaust fan 550w to output smoke
Detailed pictures:
1.RECI tube:
Compared with the laser tubeofthe same level, it has high efficiencyand stable quality. LongLifetime up to10,000 hours.
2.Laser head:
With red dot,can show you where the laser beam is when working. The metal laser head with ball screw and motor transmission,
with auto focus function.
3.RUIDA controller:
RUIDA 6332M control system, USB offline, the controller hasbetterresistance to high voltage and antistatic ability.
4.Stepper motor:
Faster speedwithsignal feedback , low heat radiation,smoothly atultra-low speed, avoid vibrationand effective torque enhancement.
Applications:
Non-metal material:acrylic,bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, paper, film,
canvas, acrylic, plastic.
Metal materials:This machine can cut carbon steel, stainless steel, According to different metal materials and thickness, just need
to adjust the pulse width, current, frequency, cutting speed.
Samples:
About services:
Pre-sale
1)Professional sales team and engineer team provide professional technical Support
2)24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.
3)Test video and Sample support
4)OEM support
5)Certificate support: CE
In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.
2)Shooting working video and machine pictures for customers’ confirmation.
Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.
After-sale
1. 3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be changed free
of charge when if there is any problem during the warranty period.
1. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 18 hours of online service each day, free technical support.
6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.
