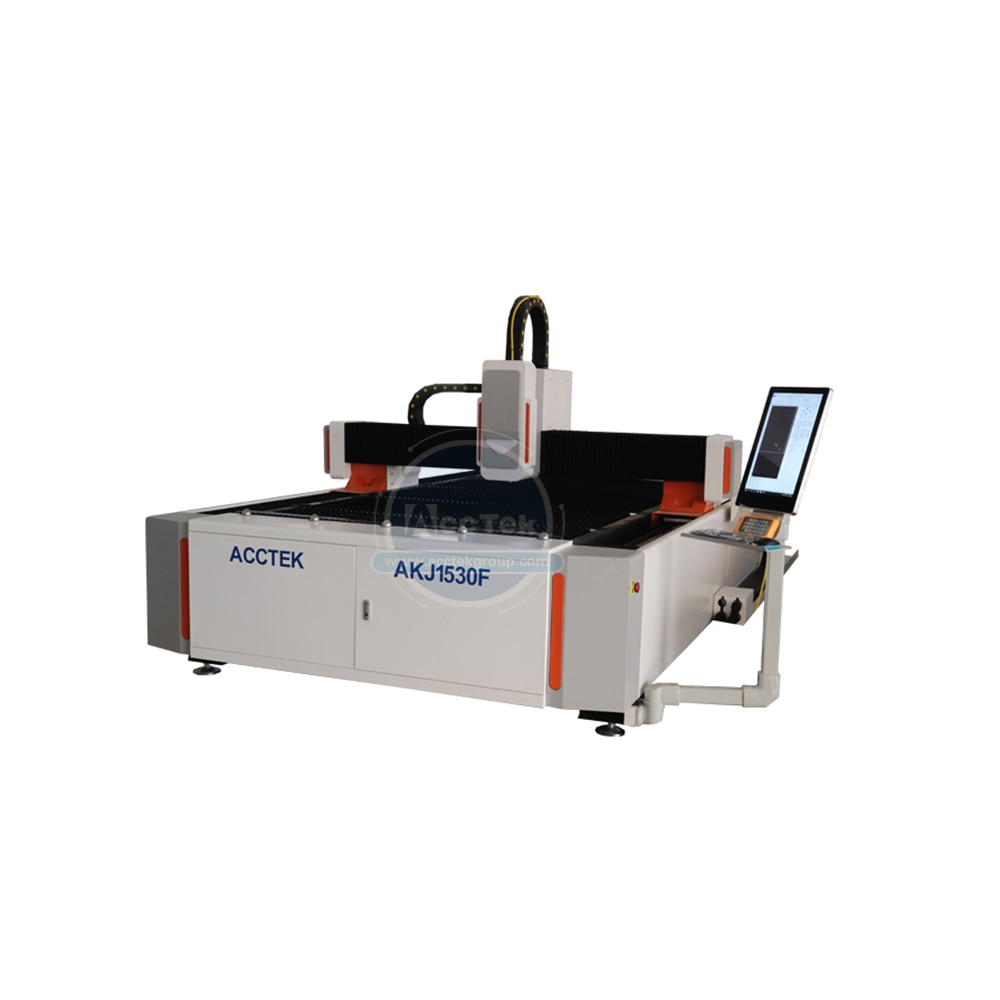

High Precise Metal Laser Cutting Machine AKJ1530F2 Engraving On Steel
Product Description
Know fiber laser cutting machine:
The modern technology which uses a fiber laser integrated into an optical fiber.
It means the laser cavity and beam delivery are both present inside the optic fiber.
One of the most effective uses of this technology is in the Fiber Laser Cutting Machines.
Features
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity,
stability, shock resistance.
2.High-performance
laser source and stable operating Cypcut system which makes the best cutting effect.
3.The machine owns a perfect cooling system, lubrication system, and dust removal system, to
ensure that it can operate stably, efficiently, and durably.
4.The machine is capable of automatic height adjustment to maintain constant focal length and
stable cutting quality.
5. The specialized CAD / CAM automatic programming software and automatic
nesting software aim to maximally save raw materials.
Details images
Optional Fitting
Product Parameter
|
Working area |
1500*3000mm |
|
|
Control System |
Shanghai Cypcut |
|
|
Cutting head |
WSX / Raytools fiber laser head |
|
|
Guide rail |
Taiwan HIWIN30mmlinear guide rail |
|
|
Transmission |
Taiwan APEX gear and rack transmission |
|
|
Electronic Components |
French Schneider |
|
|
Motor |
Japan Yaskawa servo motor |
|
|
Max Speed |
20m/min |
|
|
Repeat positioning accuracy |
±0.03mm/m |
|
|
Maximum Acceleration |
0.5G |
|
|
Min line width |
0.1mm |
|
|
Power Requirements |
220V/380V, 50/60Hz |
|
|
Cooling Way |
Water Cooling |
|
|
Machine Operating temperature |
0 ℃ -40 ℃ |
|
|
Graphic Format Supported |
AI, BMP, DST, DXF, DXP, PLT |
|
|
Machine Dimensions |
4600x2450x1700mm |
|
|
Net / Gross Weight |
3500KG/4000KG |
|
Samples
Package and amp; Delivery
1.Timely delivery.
Each machine is arranged with precise assembly steps without any delay.
2.After-sales
services and Guarantee. We offer 3 years warranty, during the period, any
problem happens, we are responsible to solve. And if any part of the machine
was broken, which happens rarely,
3.Whole film
packaging machine; anti-collision package edge; fumigation-free plywood wooden
box and pallets with an iron binding belt.
After-sale
1.3 years quality guaranty (1.5 years for laser generator), the machine with main parts
(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours of online service each day, free technical support.
6. Machine has been
adjusted before delivery, operation disk and manual was included. If there is
also any questions, please kindly tell me.
