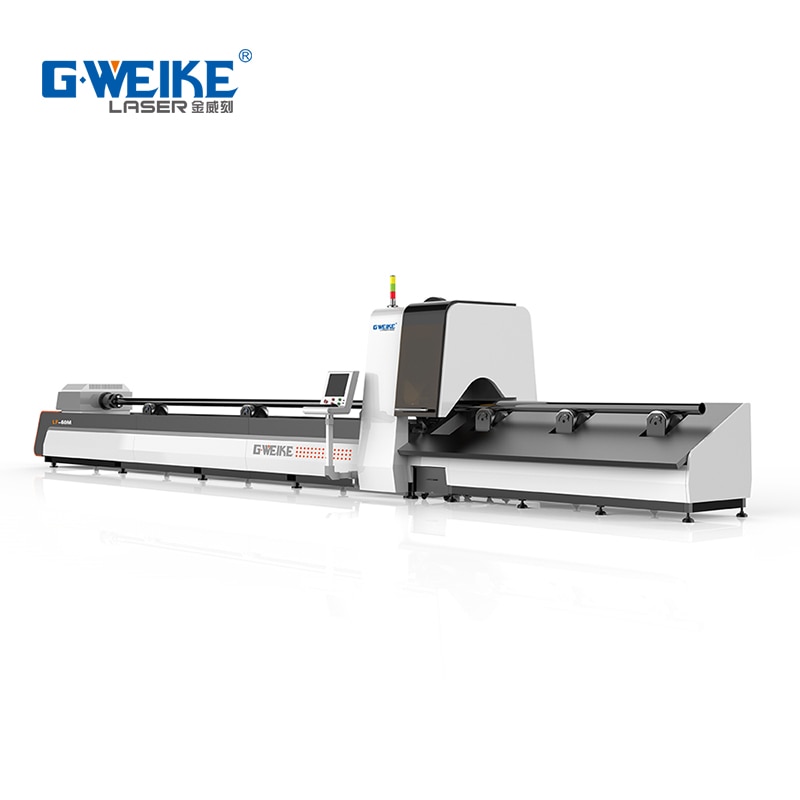

High Power Fiber Laser Cutting Fiber Cutting Machine Metal Tube Laser Cutting Machine For Sale
Product Description
Know fiber laser cutting machine:
The modern technology which uses a fiber laser integrated into an optical
fiber.
It means the laser cavity and beam delivery are both present inside the optic
fiber.
One of the most effective uses of this technology is in the Fiber Laser Cutting
Machines.
Features:
-
Application of gantry structure and integrated cast cross-girder to achieve higher rigidity,
stability, shock resistance. -
High-performance laser source and stable operating Cypcut system which makes the best cutting
effect. -
The machine owns a perfect cooling system, lubrication system, and dust removal system, to
ensure that it can operate stably, efficiently, and durably. -
The machine is capable of automatic height adjustment to maintain constant focal length and
stable cutting quality. -
The specialized CAD / CAM automatic programming software and automatic
nesting software aim to maximally save raw materials.
Details images
Product Parameter
|
Working area |
(Φ20mm-Φ220mm)* 6000mm |
|
Control System |
Cypcut |
|
Guide rail |
Taiwan HIWIN linear guide rail |
|
Transmission |
Taiwan TBI Grinding precision screw drive and |
|
Electronic Components |
French Schneider |
|
Motor |
Panasonic servo motor |
|
Max Speed |
40m/min |
|
Repeat positioning accuracy |
±0.02mm/m |
|
Maximum Acceleration |
0.5G |
|
Min line width |
0.1mm |
|
Power Requirements |
380V, 50/60Hz |
|
Cooling Way |
Water Cooling |
|
Machine Operating temperature |
0 ℃ -40 ℃ |
|
Graphic Format Supported |
AI, BMP, DST, DXF, DXP, PLT |
|
Dimensions after package |
Machine: 11900*1590*2280mm |
|
Gross Weight |
5200KG |
Samples
Package and amp; Delivery
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 3 years warranty, during the period, any
problem happens, we are responsible to solve. And if any part of the machine
was broken, which happens rarely,
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden
box and pallets with an iron binding belt.
After-sale
-
3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding
the consumables) shall be changed free of charge when if there is any problem
during the warranty period. -
Lifetime maintenance free of charge.
-
Free training course at our plant.
-
We will provide the consumable parts at an agency price when you need replacement.
-
24 hours of online service each day, free technical support.
-
Machine has been adjusted before delivery, operation disk and manual was included. If there is
also any questions, please kindly tell me.
