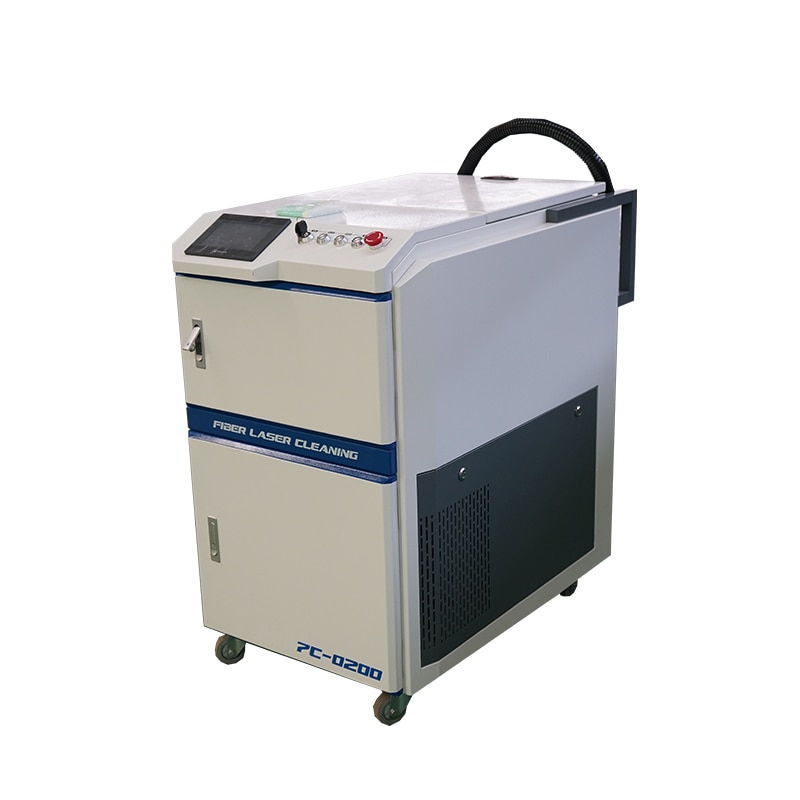

Handheld laser cleaning machine rust cleaner

Handheld laser cleaning machine rust cleaner

Handheld laser cleaning machine rust cleaner

Application

Rust Removal

Oxide Removal

Molding Cleaning

Surface Preparation

Coatings Removal

Weld Pre-treatment

Gluing Pre-treatment

Removal  of Oil and Grease

Paint Removal

Surface Cleaning

Stain Removal

Surface Roughening

Tool Cleaning

Historic Restoration

Selective Paint Removal

Precise Cleaning

Samples



Features :

1)Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.

2)The focused laser beam is capable of accurately evaporating surface objects or dirt.

3)Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.

4)By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Technical parameters



Equipment model LXC-50 LXC-100 LXC-200 LXC-500 LXC-1000
Laser working medium Yb-doped fiber
Laser power 50W 100W 200W 500W 1000W
Laser wavelength 1064nm
Pulse frequency 20-100KHz 20-100KHz 20-200KHz 20-50KHz 20-50KHz
Cooling method Air cooling Air cooling Water cooling Water cooling Water cooling
Dimension 760mmX780X790mm     1100x950x700mm
Total Weight 56kg 60kg 65kg 130kg(Including Water tank) 140kg
Total power 350W 600W 1000W 1800W 2000W
Scan width 10-60mm
Optional Hand/automatic
Working temperature 5-40℃
Company Information

JINAN UNICH  MACHINERY CO.,LTD

Is  established  in  July  2004  ,owns  more  than  500  square  meters  of  researching  and  office  space,

more  than  32000  square  meters  factory.All  machines  ,passed  the  European  Union  CE  authentica-tion,American  FDA  certificate  and  are  certified  to  ISO  9001.  Products  are  sold  to  USA,  South

east  Asia,Europe,Canada,  Australia,   Africa  etc,more  than  120  countries  and  areas,  and  supply

OEM  service  for  more  than  30  manufactures.

Our  Products  includes  All  kind  of

1.  Laser cleaning machine.

2.  CNC  knife cutting machine.

3.  Laser  marking  machine(Fiber/CO2/UV/Green  light) and laser-welding machine.

4.  Fiber  cutting  machine.

5.  Plasma cutting machine.

6.  Cnc router machine.

7.  Co2 laser machine and so on.



We  can  also  customized  non-standard  assist  equipment  as  your  detailed  work  requirements.

Certifications

Packaging and amp; Shipping

Standard packaging:Free fumigation wood box.

Delivery time:7-15 days after the order confirmed.
