Preface:
In the field of precious metal detection, traditional analysis methods such as litmus test method, cupellation, fire assay method belongs to destructive testing, such as a consuming and dangerous, and sample preparation process takes longer.And X-ray fluorescence spectrometry technology is relatively mature, can achieve real-time analysis, nondestructive testing, does not require any consumables, and precision can reach four digits after the decimal point, is the development direction of affordable precious metal detection technology in our country.West that gold and silver detector manufactured technology reference is X ray fluorescence spectrometry this advanced precious metals testing technology.
Our machine equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be accurate detection of gold and silver jewelry and most of other metal elements and azardous substances.

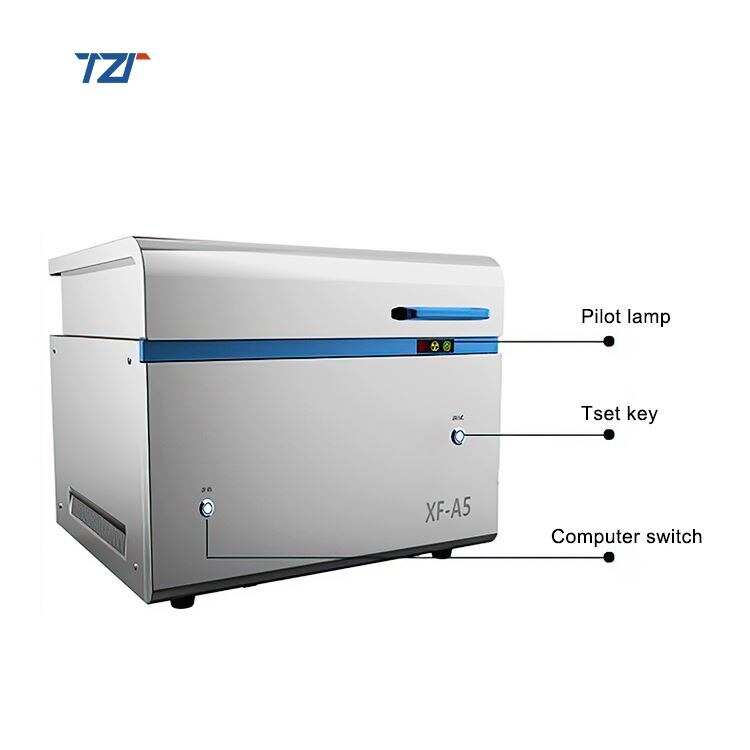

This precious metal detector TZT-A5 is one of the X-ray fluorescence spectrometers independently developed and produced by Tanzhi technology based on years of precious metal detection technology and experience. It is a high-end all element detector with high-end configuration. It is equipped with imported Si PIN detector, aviation design, high-end atmosphere, has more than ten R and amp; D patents, outstanding performance, small size, light weight, in line with the new national standard gb18043-2013, can accurately detect precious metals such as gold and silver jewelry.
Technical parameters:
| Name: | TZT-A5 Precious Metal Gold Testing Machines Analyzer X Ray Spectrometer Machine Tester Xrf Metal Heavy Element Spectrum | |||
| Testable elements: | Ag, Au,Fe, Co, Ni, Cu, Zn, Se, Pd, Rh, Ru, Pt, Ir, Pb and etc(70 elements) | |||
| Equipment principles: | X fluorescence energy dispersion | Test area: | 1-2mm spot + and lt;40micron | |
| Built-in capacitive touch LED: | External 23 inch HD display | Main structure: | High strength metal bracket + aluminum alloy shell | |
| Accuracy: | ±0.03% | Voltage: | 100-240v | |
| Detector: | Si-Pin (Import) | Power: | 150w | |
| Resolution: | 155±5 eV | Operating systerm: | Window 7or10 | |
| Work enviroment: | – 11 ~ 46 °C | Advantages: | excellent cooling system | |
| Battery support:: | no | Intelligence: | automatic protection | |
| Label/normal/thermal printer: | support | weight: | About 38kg | |
|
Built-in computer: |
yes | size: | 450×350×400mm | |
Product advantage:
- High cost performance
Can fast accurate detection of various precious metal, widely applied! - Nondestructive testing
Will not cause any damage to measured sample jewelry and so on. - Operation is simple and smart
Automated testing without a unique key testing capabilities, with professional personnel - Fast for Testing
Qualitative 3 seconds, 7 seconds can be intuitive results. - Easy to Bring
The integration of design, small footprint, easy to carry and management. - Safe and durable
Have anti-radiation function, the machine more than 10 years of life - High precision
PPM level accuracy, reliable testing data, plus or minus 0.01% of the detection precision - The operational safety
Equipped with radiation protection devices, and active protection operation safety.
Standard configuration:
- Active radiation protection
- Global fault diagnosis
- Expansion wire and auxiliary support
- High voltage and over voltage protection
- Lifting pressure start
- Light tube of protection
- Expanded screen
Application fields:
•jewelry store •Pawn •gold and silver COINS, collectors • jewelry factory • jewelry school
• professional laboratory • quality inspection institutions •metal handicraft industry •Precious metals smelting, •Purification of precious metals, •Precious metals recycling, •geoscientific prospecting
•Industry, rare metals •alloy material detection
TZT was established in 2006 and specialized in researching, developing and producing X-ray Fluorescence (XRF) Spectrometers. Its research centers are located in Hong Kong, Shanghai,Shenzhen,Nanchang.
TZT is an ISO 9001:2000 Certified organization offers wide array of testing analyzers. These devices have achieved international CE, FCC and RoHS certifications. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by Jewellery retailers, Jewellery manufacturers, precious metal refineries, pawn shops, government quality supervision and inspection institution, banks, laboratories. TZT product yields more than any other competitive brands.
Gold Testing Vibration Sieve Shaker Machine Heavy Metal Analyzers Thermo Scientific Niton Xl2 800 Xrf Analyzer
Quality Control System:
- Every parts should be put in temperature and humidity test chamber for 72 hours before assembling.
- Every machine need to do aging testing for another 72 before shipping
3.Every machine is with its unique series number .Engineer will be responsed for the quality of the machine he made.
1: The whole machine is guaranteed for 12 months; provide technical service support for life.
2: During the warranty period, if the product has quality problems under normal use, after verification by Party B, it will provide free maintenance services and will not charge any fees to Party A; if the quality problem is not the instrument itself, it is due to user’s human factors. Party B needs Charge the cost of parts repair or replacement.
3: Response time: Within 24 hours.Any problem,our professional team can check for you remotely.
