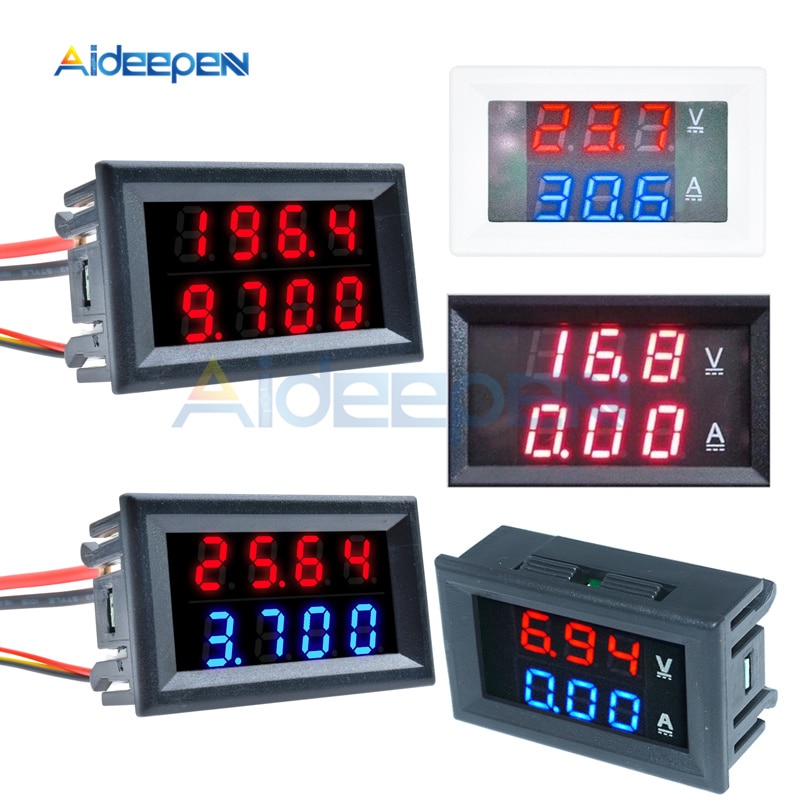

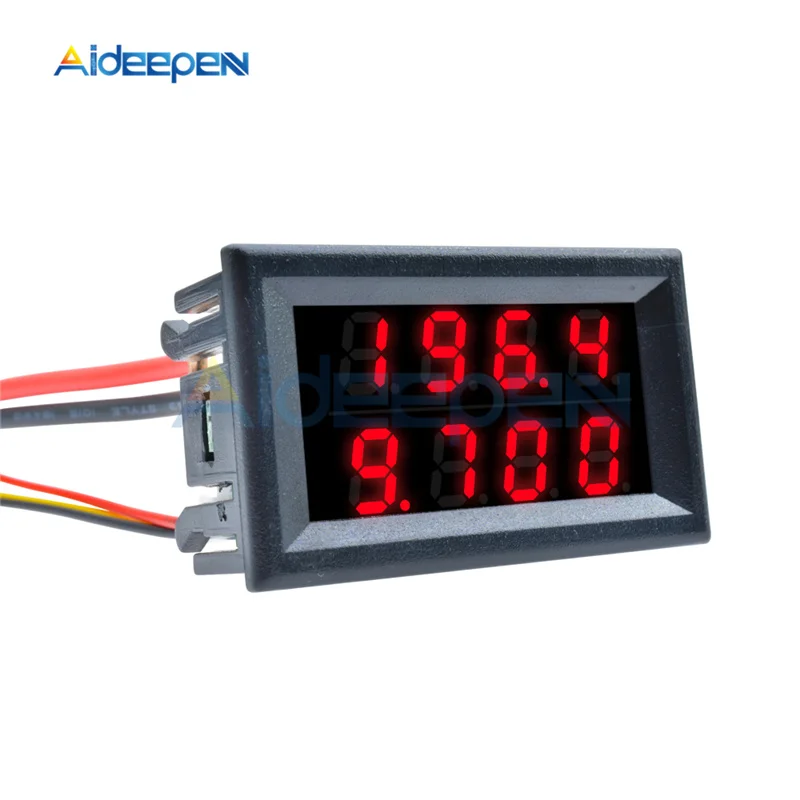

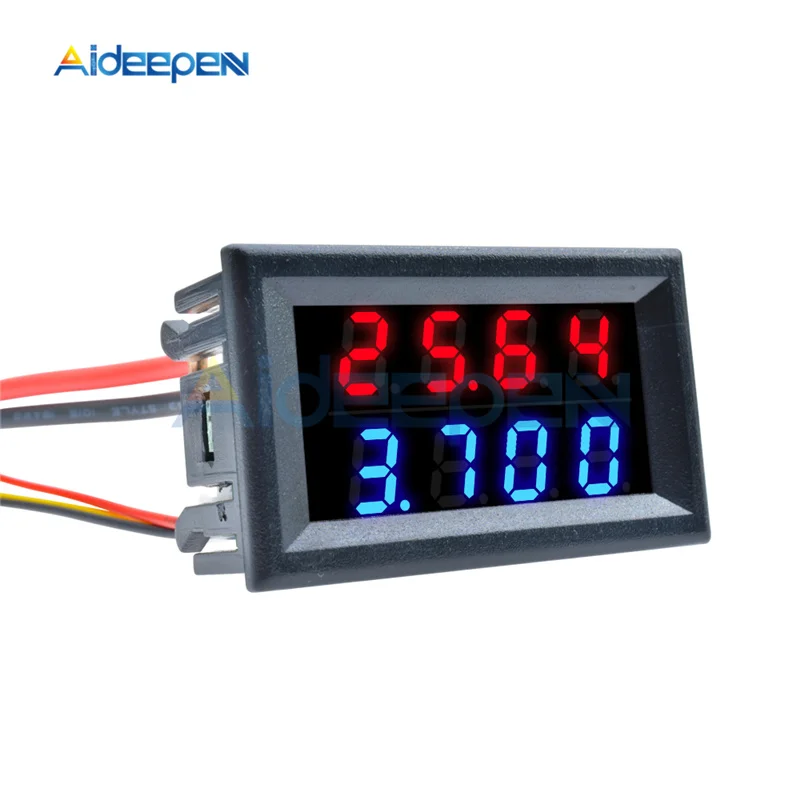

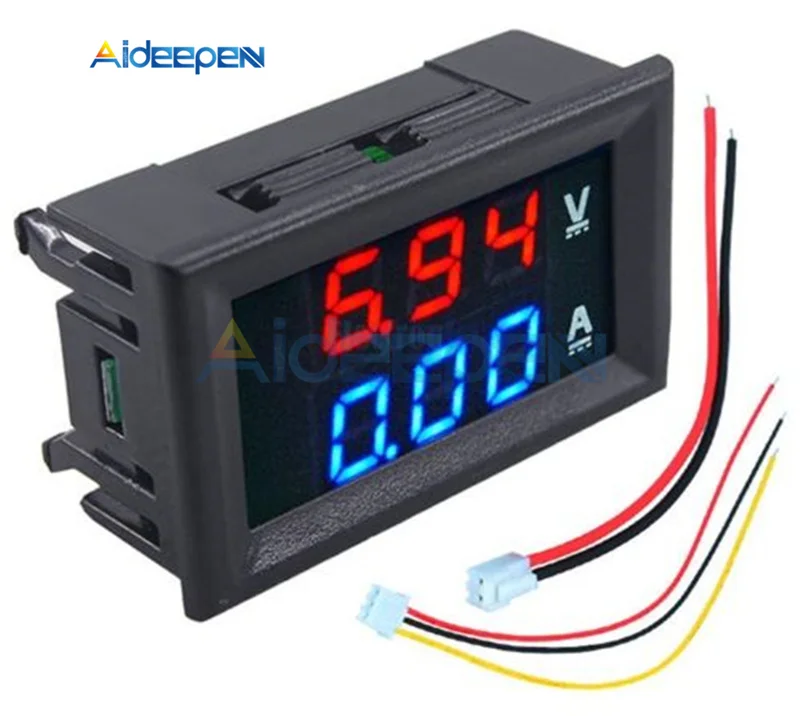

DC 100V 200V 10A 50A 0.28″ Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter Tester Blue Red Dual LED Display
note:
The current is measured from 0.05A.
Features:
High precision, 4-digit/3digit
Working voltage: DC 4V-28V
Working current: and lt;20mA
Display: 0.28″ Red + Blue Dual LED Display
Voltage Measuring Range: DC 0-200V/DC 0-100V
Current Measuring Range: 0-10A/50A
Refresh rate: about 1S / 3times
Operating temperature: -10 to 65 Celsius Degree
Working pressure: 80 to 106 kPa
Size :48x29x20 mm
Current: Range x 0.08%+Two decimal point
Voltage: Range x 0.08%+Two decimal point
Wiring:
Red line thin: power supply+
Red line (thick): IN+, current input
Yellow line (thick):PW+, measuring terminal voltage input positiv
Black line thick: COM, common measurin
Note:

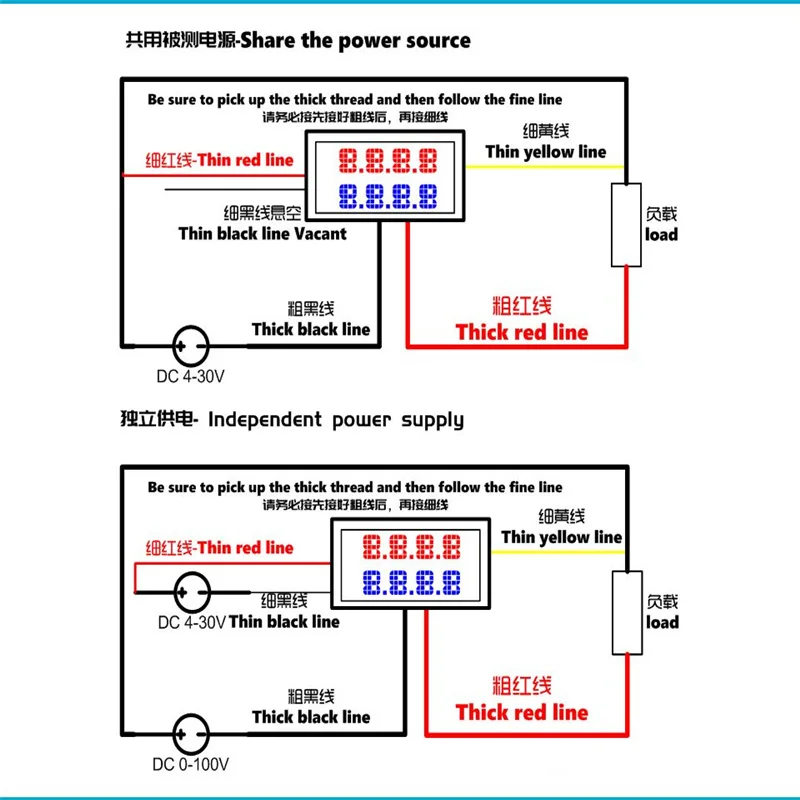

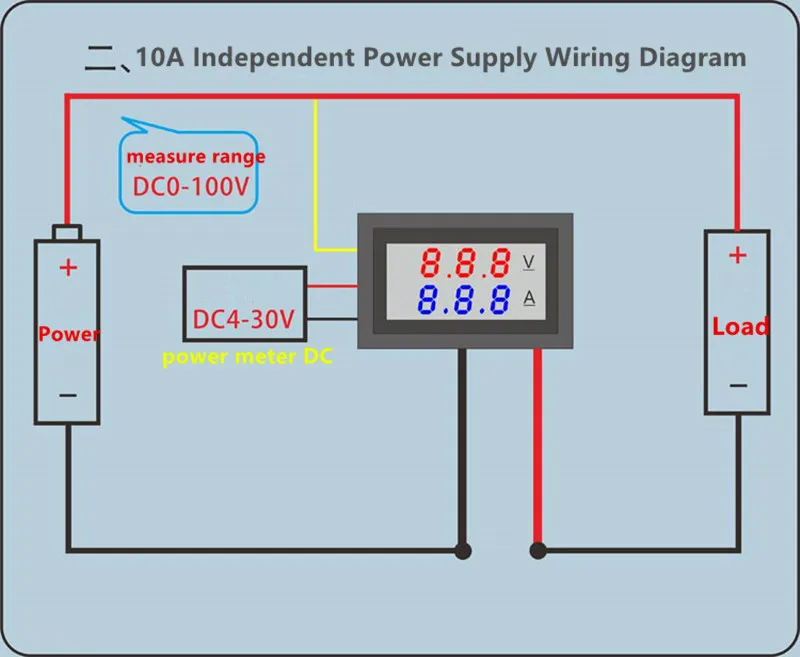

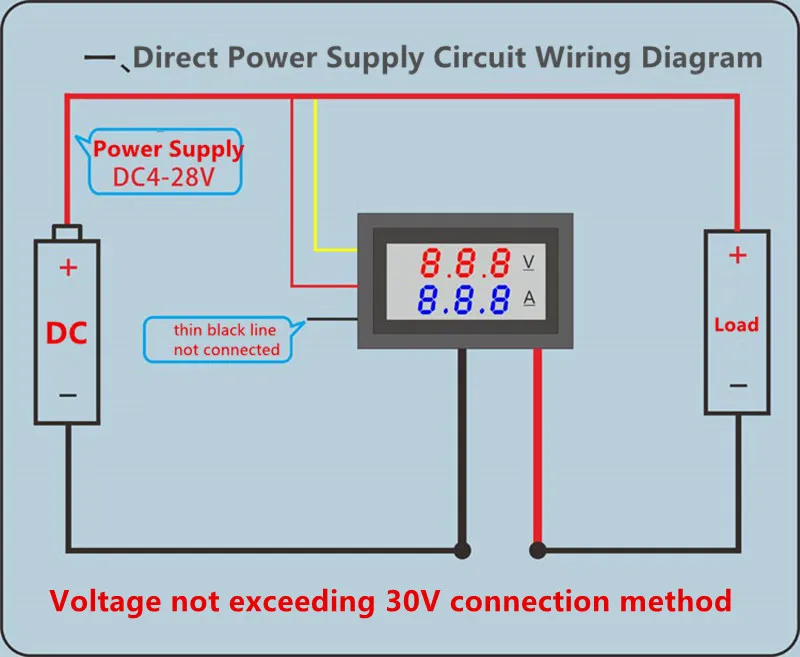

Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table!
