Product introduction:

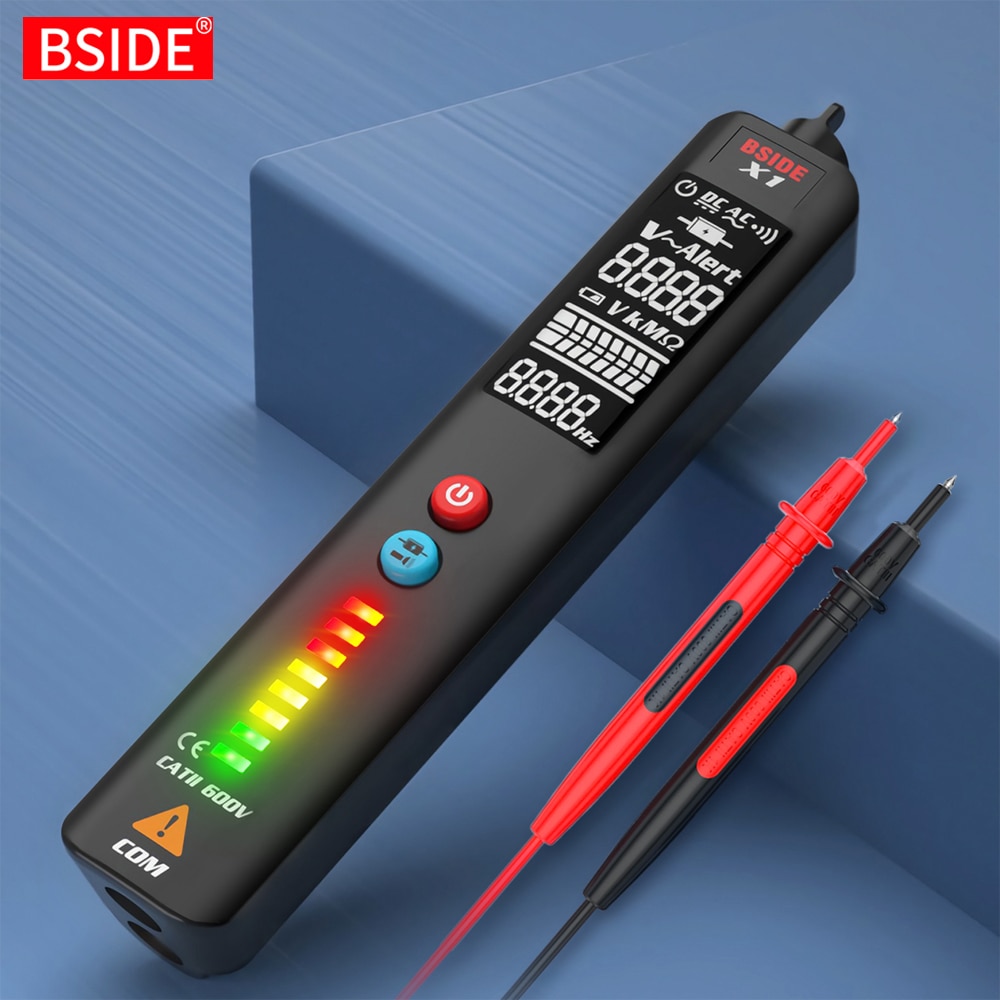

The BSIDE X1 product is a future-oriented electrical tester created by the BSIDE brand designer.
The product has a 2.0-inch smart display, and has the test attributes of a voltage detector and a smart multimeter. With the increasing importance of electricity safety, this product will become a necessity in your daily life.
At the same time optimize the use of functions and test experience.And added the latest design of “High sensitivity detection mode”(6V~1000V).
The latest design in 2021 – Exquisite and unique.
With a patent certificate, you can order with confidence.

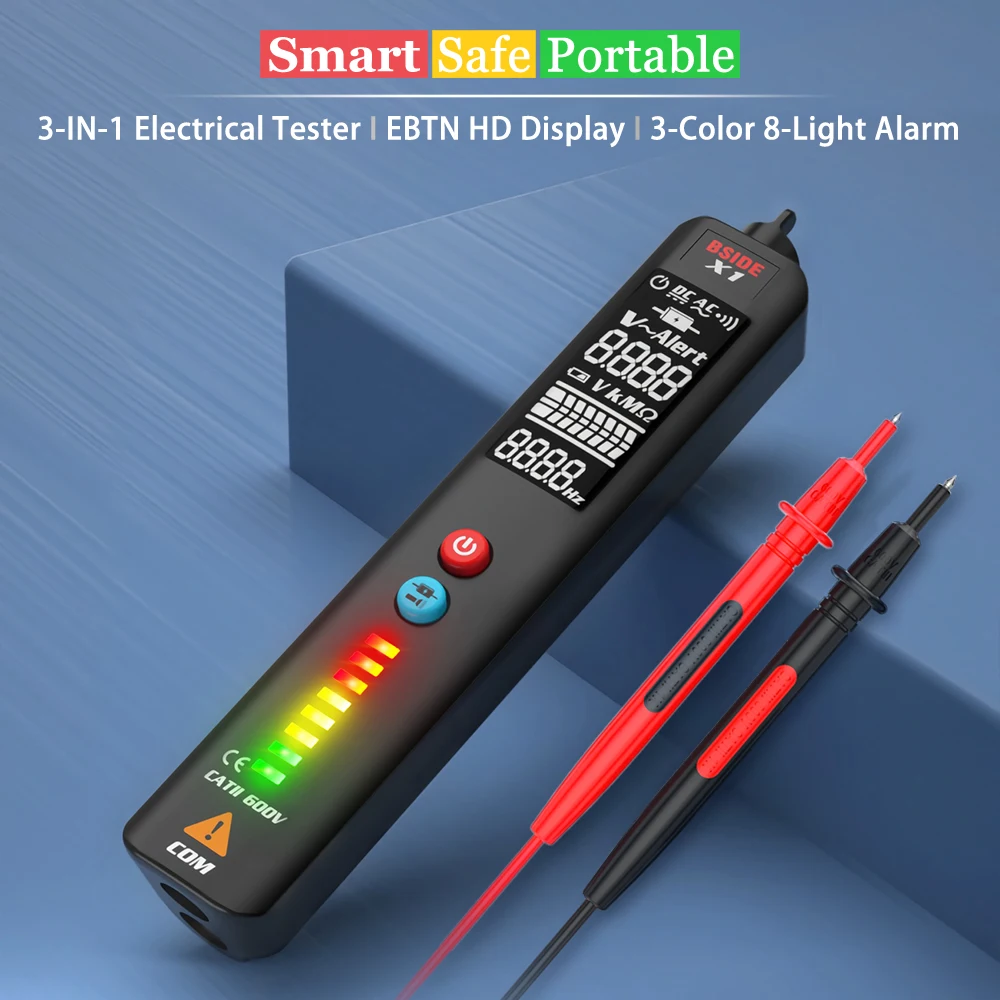

[EBTN LCD Display]: BSIDE EBTN LCD display greatly enhance the reading experience, the lighted up numbers and amp; letters with black background make it very easy to read, even in bright sunlight or poor light.
[8 LED Indicators]: 8 LED Indicators in 3 color make it very easy to judge the detected voltage strength.
[3mm ultra-narrow frame design]: Leave more space for the screen.
[3-Line Display]: High resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency and analog bar.
[Sensitivity Adjustable]: Adjustable sensitivity makes measurement more convenient, when adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.(High: 6V~1000V; Low: 90V~1000V)
Sound and light/screen warning. Automatic shut-down. Low battery reminder.
Sophisticated workmanship will bring you the best experience.
BSIDE X1 products use the latest smart chip ( 16-bit chip ), which can intelligently identify all test functions.
[Perfect test speed]: Real-time display of test results( 1s/5 tests ), bringing you unexpected fluency. (1S boot to work; 1S display test results)
Main Features:

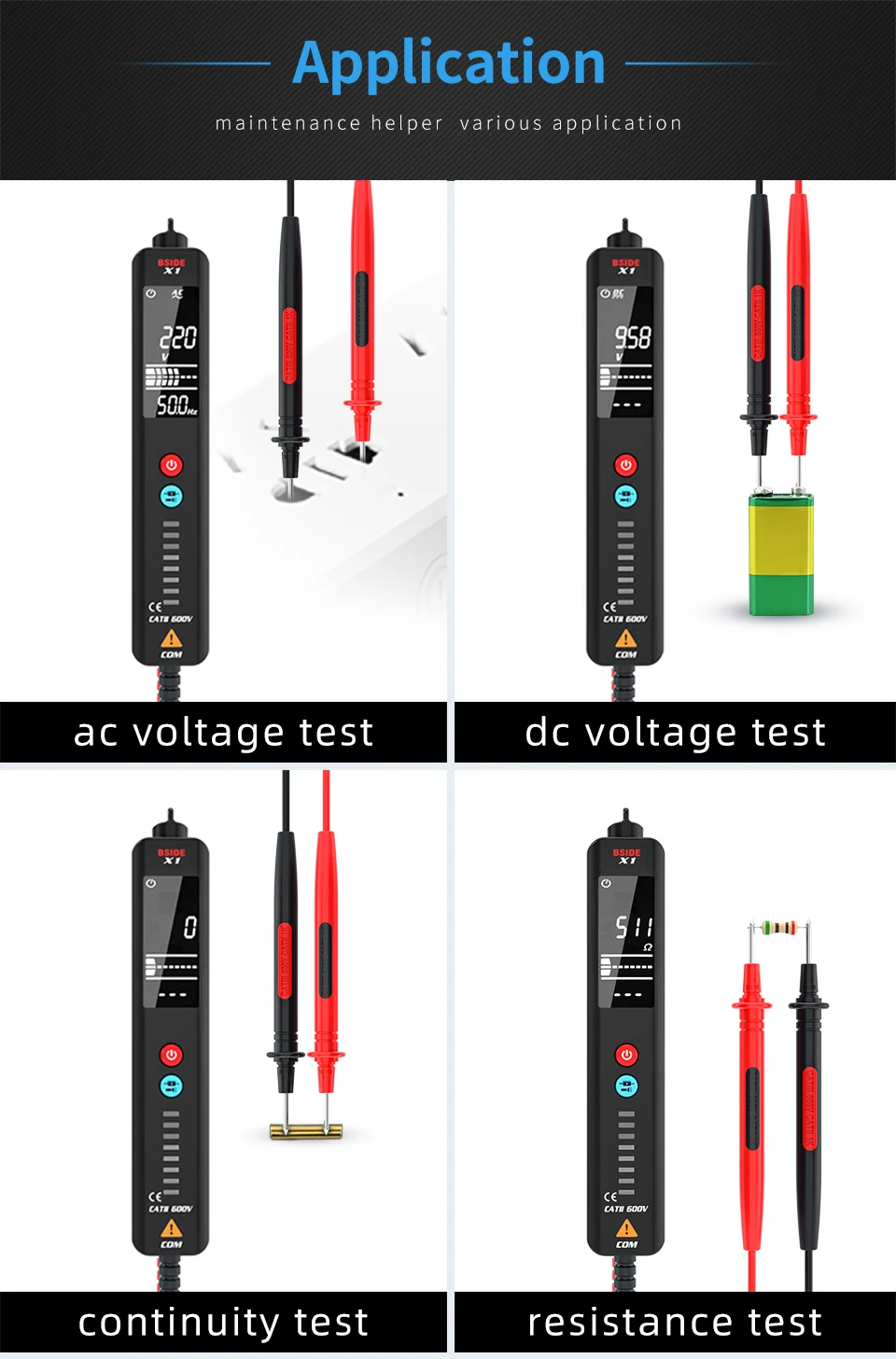

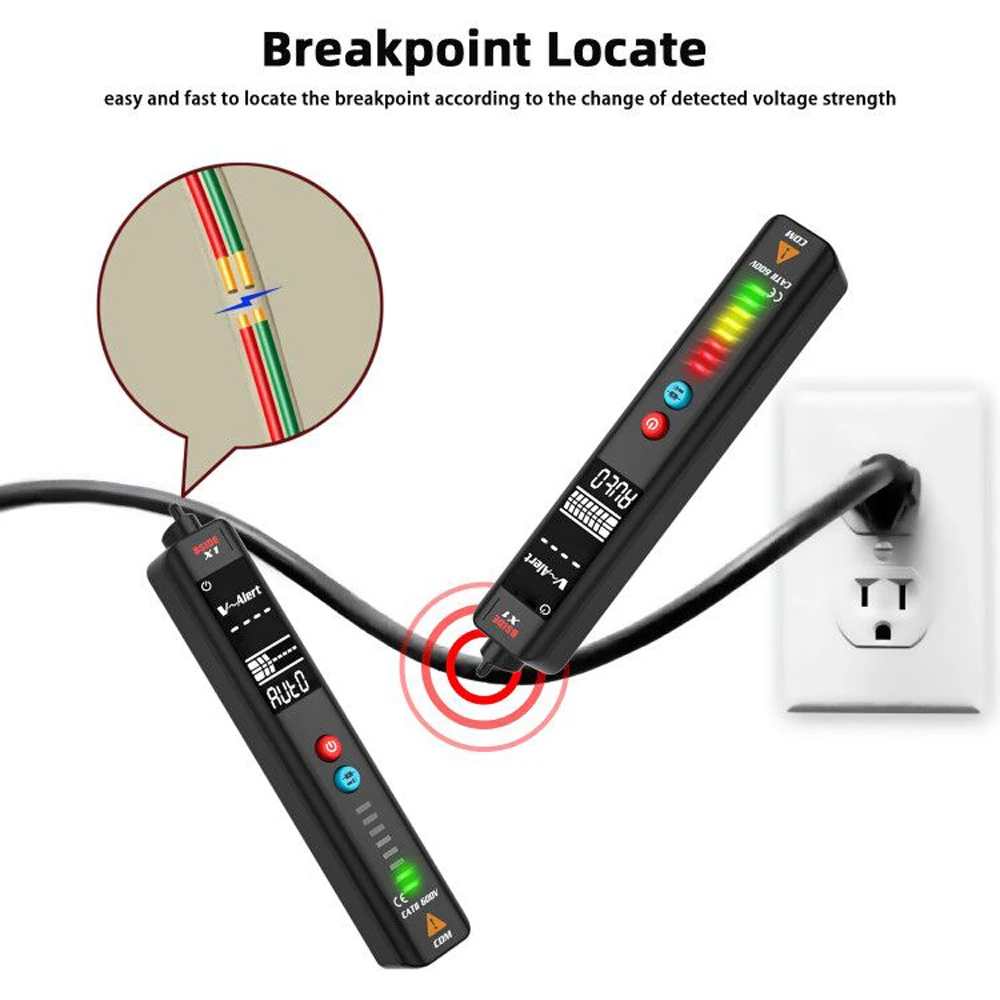

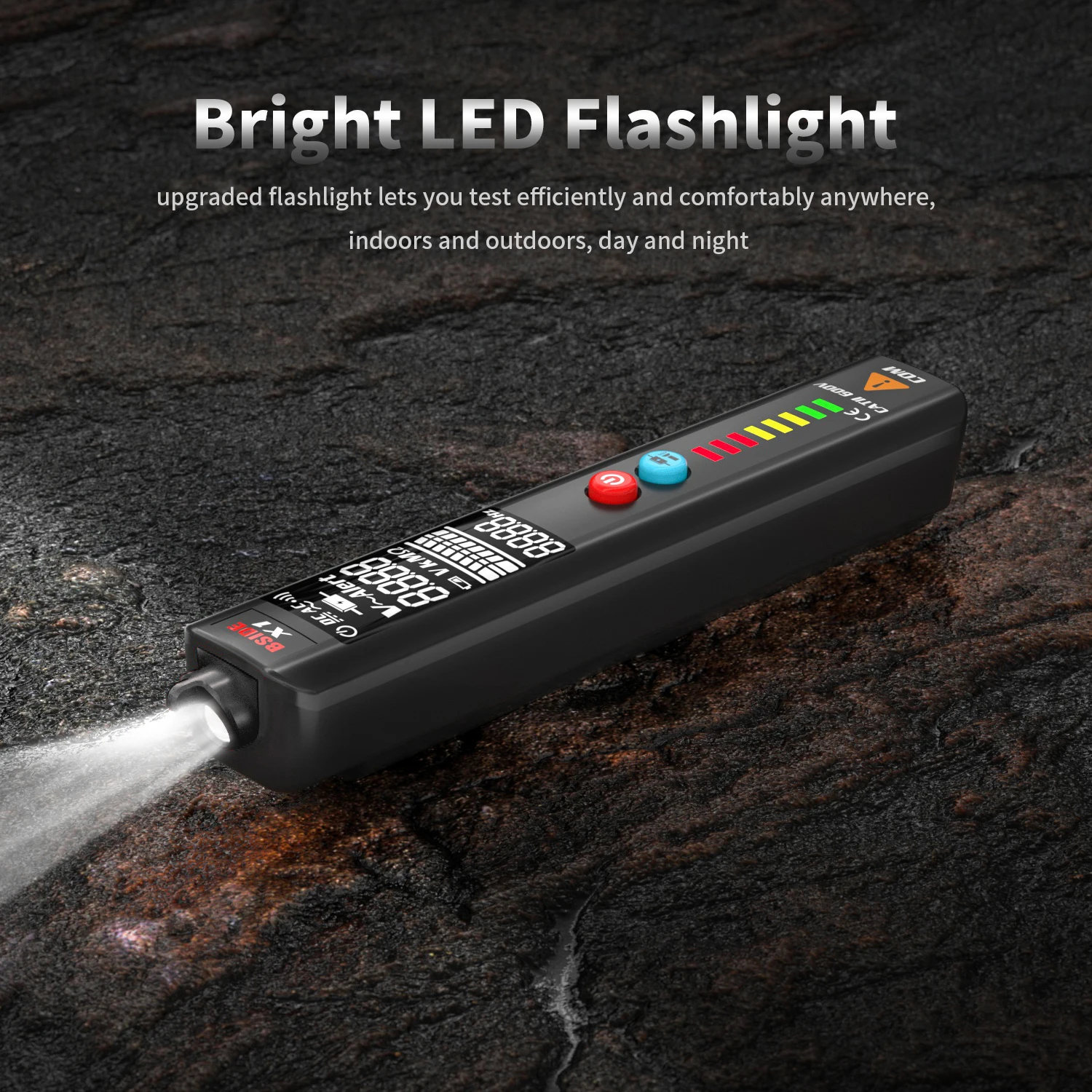

EBTN ultra-clear display, clear and easy to read.Non-contact and pen shaped desigh,convenient to operate and carry.Dual mode operation.(Low sensitivity and High sensitivity)Has Induction dangerous voltage alarm, DC/AC voltage, Resistance, Frequency, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, flashlight features etc.Has 8 LED indicators in 3 colors (Red/Yellow):Automatic identification of high/medium/low voltage.Alarm mode:Sound、Analog strip and light (Red/Yellow).LED spotlight, Battery low voltage reminder, Auto power off features.Safety level: CAT II 600V.Compliance with international safety standards.
Product description:
Maximum display: 2000 counts.Meter Thickness: 1.5 cm.DC Voltage: 500V 0.1V ±(0.8%+3)AC Voltage: 500V 0.1V ±(1.2%+5)Resistance: 10MΩ 1Ω ±(1.2%+3)Frequency: 1000Hz 1Hz ±(2.0%+3)Non-contact dangerous voltage detection:Yes.Live/Neutral Check: alarm beep sounds, LCD screen display stripe.Continuity test: If the resistance is less than 30Ω, the beeper sounds.Battery test: Yes.Power: 2 * 1.5v AAA battery.Size: 151*29.5*26mm.Weight: 196g.Security Level:Comply with international safety standards. CE certification.
Package includes:
1*X1 Voltage detector.1*EVA portable cloth bag(Pay an additional $2.)1*High quality test lead1*English manual. 1*box
Package A : Safety electric checkup kit
BSIDE X1 EBTN display multi-function voltage detector + ZT-E8 EBTN display multi-function socket tester.
