60KG load Vibration test system for Battery test/Vibration Analyzer

Hongjin High Frequency Electromagnetic Vibration Test Machine / (Electromagnetic Vibration Test Equipment) is used to educational, research, and laboratory environments. Adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half – sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

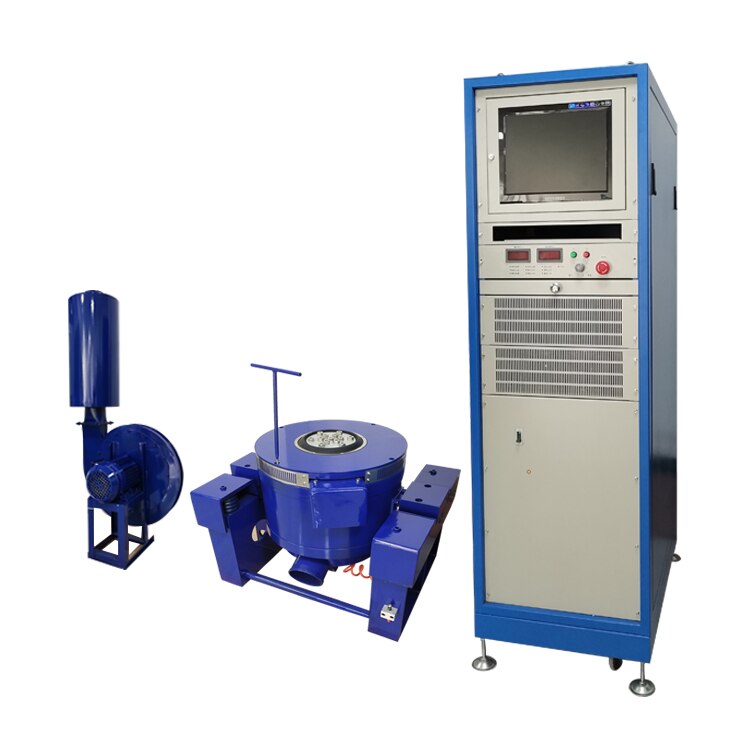

Test system composition

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.

Technical performance of each part

(1) Vibration generator and power amplifi

Maximum load	120kg
Table weight	1100kg
Mean time between failures	and gt;3500 hours
Axial vibration isolation frequency	and lt;3Hz
Magnetic leakage	≤1mT
Impact displacement	25mmP-P (maximum)
Maximum speed	1.8m/s
Maximum acceleration	981m/s2 (100g) (no load)
Sinusoidal thrust	2940N (300kg.f)
Random thrust	2940N (300kg.f)
Impact thrust	5880N(600kg.f)

(2)Water smoothing station

Table size	600mm × 600mm (square)
Equivalent mass	About 30kg (connecting head)
Table thickness	25 mm
Upper limit frequency	Sine 2000Hz, random 2000HZ
weight capacity	The test acceleration at 200kg is F=MA, the thrust must be less than F,
Countertop material	Aluminum alloy

(3)Vertical expansion countertop

Table size	600mm × 600mm (method)
Equivalent mass	About 30kg (moving parts)
Table height	140 mm
Upper limit frequency	Sine 1000Hz, random 1500HZ
Countertop material	Aluminum alloy
