BNT50 BNT91H BNT81B
Hose crimping machine Hose crimping machine Hose crimping machine
![](https://ae01.alicdn.com/kf/HTB1JG9MOXXXXXayXVXXq6xXFXXXW/222428982/HTB1JG9MOXXXXXayXVXXq6xXFXXXW.jpg)
![](https://ae01.alicdn.com/kf/HTB1Hra4OXXXXXbBXXXXq6xXFXXXM/222428982/HTB1Hra4OXXXXXbBXXXXq6xXFXXXM.jpg)
![](https://ae01.alicdn.com/kf/HTB1.pmnOXXXXXb5aFXXq6xXFXXXE/222428982/HTB1.pmnOXXXXXb5aFXXq6xXFXXXE.jpg)
BNT30A BNT65D BNTS350B

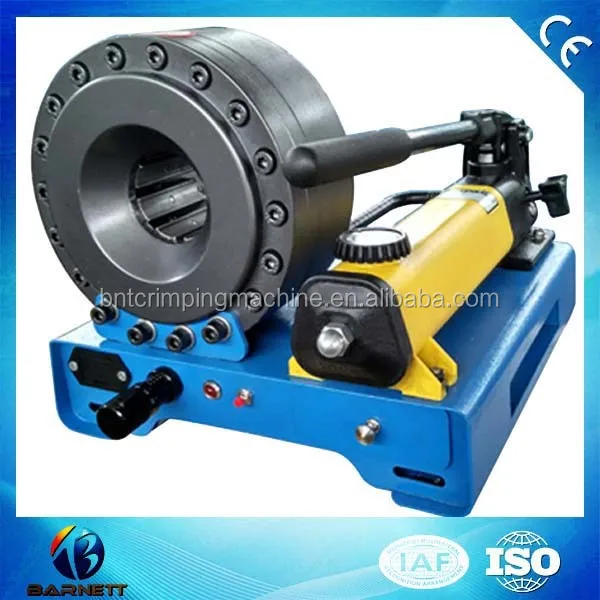

Manual hose crimping Hose skiving machine Hose cutting machine
machine
Hose crimping machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hose crimping machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

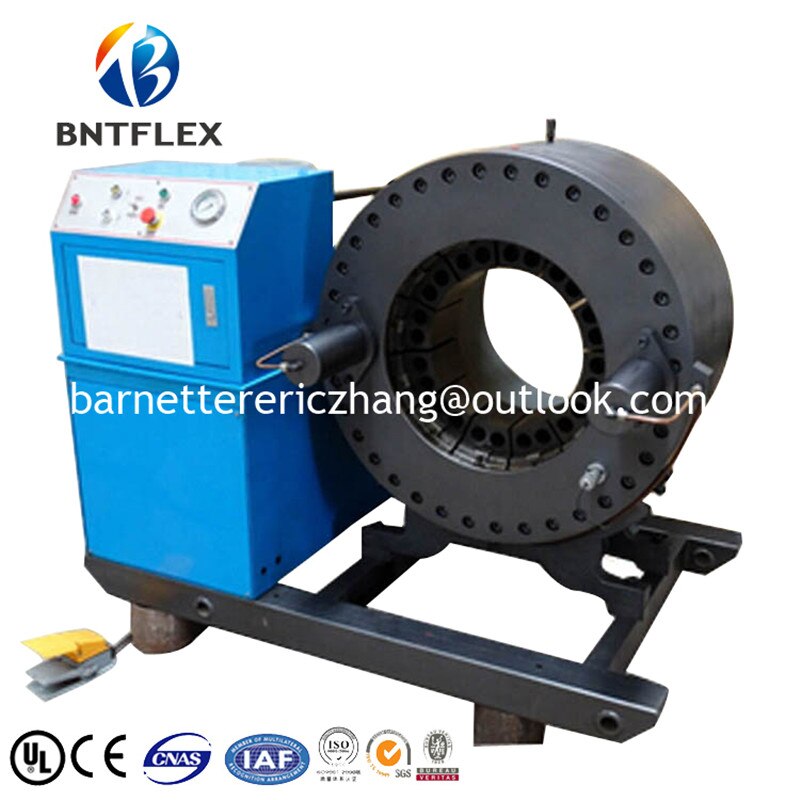

SPECIFICATIONS FOR 14inch HOSE CRIMPING MACHINE
|
||||
Model:
|
BNT-91K(Electric crimping)
|
|||
Crimp force:
|
2000KN
|
|||
Crimp range:
|
8 inch -14inch(Hose inner diameter)
|
|||
Voltage:
|
380V*50HZ
|
|||
Displacement of plunger pump:
|
35L/min
|
|||
Systematic pressure:
|
30MPa
|
|||
Max opening without dies:
|
465mm
|
|||
Opening:
|
58mm
|
|||
Volume of oil tank:
|
180L
|
|||
L*W*H:
|
1420*900*1100(mm)
|
|||
Weight:
|
1450kg
|
![](https://ae01.alicdn.com/kf/HTB1Qj6nOFXXXXbCXpXXq6xXFXXXe/222428982/HTB1Qj6nOFXXXXbCXpXXq6xXFXXXe.jpg?size=139161 and amp;height=986 and amp;width=600 and amp;hash=c3529f6b22edeb46db6a25570a09d490)
![](https://ae01.alicdn.com/kf/HTB1ctiJOFXXXXbGaFXXq6xXFXXX8/222428982/HTB1ctiJOFXXXXbGaFXXq6xXFXXX8.jpg?size=132554 and amp;height=976 and amp;width=600 and amp;hash=078d8470729b363d1883ddca5708d782)
![](https://ae01.alicdn.com/kf/HTB1B451OFXXXXaSaXXXq6xXFXXX3/222428982/HTB1B451OFXXXXaSaXXXq6xXFXXX3.jpg?size=118990 and amp;height=652 and amp;width=600 and amp;hash=c3c991c3f46d042293cfcb1547cd2837)
![](https://ae01.alicdn.com/kf/HTB1PvPmOFXXXXbdXpXXq6xXFXXXH/222428982/HTB1PvPmOFXXXXbdXpXXq6xXFXXXH.jpg?size=301297 and amp;height=1344 and amp;width=600 and amp;hash=4eb371165648d2d8a52720a5c4609a5e)
![](https://ae01.alicdn.com/kf/HTB1OOmPOFXXXXcuapXXq6xXFXXX4/222428982/HTB1OOmPOFXXXXcuapXXq6xXFXXX4.jpg?size=121194 and amp;height=598 and amp;width=600 and amp;hash=ac861e299d85396d2f27833ef5dff726)
![](https://ae01.alicdn.com/kf/HTB18s9POFXXXXadapXXq6xXFXXXF/222428982/HTB18s9POFXXXXadapXXq6xXFXXXF.jpg?size=166260 and amp;height=1398 and amp;width=600 and amp;hash=bad8f64f404ff99a96bc071915bcb59b)
![](https://ae01.alicdn.com/kf/HTB1TmGVOFXXXXXfapXXq6xXFXXXC/222428982/HTB1TmGVOFXXXXXfapXXq6xXFXXXC.jpg?size=119907 and amp;height=1197 and amp;width=600 and amp;hash=4611fb956b1e525816c7d076be2c012b)
![](https://ae01.alicdn.com/kf/HTB1givoOFXXXXarXpXXq6xXFXXXI/222428982/HTB1givoOFXXXXarXpXXq6xXFXXXI.jpg?size=117072 and amp;height=867 and amp;width=600 and amp;hash=77fc48a10904b122046b1fcb67a2ac45)
![](https://ae01.alicdn.com/kf/HTB1Q5PyOFXXXXbgXXXXq6xXFXXXD/222428982/HTB1Q5PyOFXXXXbgXXXXq6xXFXXXD.jpg?size=113999 and amp;height=797 and amp;width=600 and amp;hash=e6bd4ebf21a182c645f2aa87b6a713d0)
![](https://ae01.alicdn.com/kf/HTB1GcYfOFXXXXbRXFXXq6xXFXXX0/222428982/HTB1GcYfOFXXXXbRXFXXq6xXFXXX0.jpg?size=149051 and amp;height=1110 and amp;width=600 and amp;hash=1c1403ce7303f08a044969b6bde81aa5)
![](https://ae01.alicdn.com/kf/HTB1j0C9OFXXXXbCXVXXq6xXFXXXm/222428982/HTB1j0C9OFXXXXbCXVXXq6xXFXXXm.jpg?size=158602 and amp;height=1284 and amp;width=600 and amp;hash=0c3ebfc225f0453866fd67e9d424cdb4)
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in hydraulic parts ,electric parts and operation parts.
3) Button way, foot pedal to control the die opening and closing.
4) Running in a high speed,no pollution.
5)Hose Crimping Machine can Crimp the Hydraulic Hoses up to 51 mm / 2 inch Diameter.
6)It is easy to operate with Manual Operation.
![](http://sc01.alicdn.com/kf/HTB1Vj3EJXXXXXX9XXXX760XFXXXO/222428982/HTB1Vj3EJXXXXXX9XXXX760XFXXXO.png)
![](http://sc02.alicdn.com/kf/HTB13iIPHFXXXXXDapXX760XFXXXH/222428982/HTB13iIPHFXXXXXDapXX760XFXXXH.png)
![](http://sc02.alicdn.com/kf/HTB1mrrlIVXXXXaeaXXX760XFXXXU/222428982/HTB1mrrlIVXXXXaeaXXX760XFXXXU.png)
![](http://sc02.alicdn.com/kf/HTB1AXjpHVXXXXXGaXXXq6xXFXXXI/222428982/HTB1AXjpHVXXXXXGaXXXq6xXFXXXI.jpg)
Main Features:
Name: our factory
Brand: BNT
Original: China
Our comany is specializing in producing hose crimping machine,hose cutting machine,hose skiving machine,High pressure hose,Hydraulic hose,SEA and amp;DIN Series,Teflon hose,Nylon hose,Steam Hose,Industrial hose,Concrete hose,Drilling hose,Rotrary hose,Air hose,Water hose,Oxygen hose,Metal hose,Fir proof hose,Hose ferrule,hose fitting,hose Assembly parts,etc.
Main Features:
Name: our factory
Brand: BNT
Original: China
Our comany is specializing in producing hose crimping machine,hose cutting machine,hose skiving machine,High pressure hose,Hydraulic hose,SEA and amp;DIN Series,Teflon hose,Nylon hose,Steam Hose,Industrial hose,Concrete hose,Drilling hose,Rotrary hose,Air hose,Water hose,Oxygen hose,Metal hose,Fir proof hose,Hose ferrule,hose fitting,hose Assembly parts,etc.
![](http://sc01.alicdn.com/kf/HTB19DICJpXXXXaPXXXXq6xXFXXXf/222428982/HTB19DICJpXXXXaPXXXXq6xXFXXXf.jpg)
Machine Parts:
Name: our factory
Brand: BNT
Original: China
Our comany is specializing in producing hose crimping machine,hose cutting machine,hose skiving machine,High pressure hose,Hydraulic hose,SEA and amp;DIN Series,Teflon hose,Nylon hose,Steam Hose,Industrial hose,Concrete hose,Drilling hose,Rotrary hose,Air hose,Water hose,Oxygen hose,Metal hose,Fir proof hose,Hose ferrule,hose fitting,hose Assembly parts,etc.
![](https://ae01.alicdn.com/kf/HTB1T1uUKXXXXXb0XpXX760XFXXXW/222428982/HTB1T1uUKXXXXXb0XpXX760XFXXXW.png)
Main Features:
Name: our factory
Brand: BNT
Original: China
Our comany is specializing in producing hose crimping machine,hose cutting machine,hose skiving machine,High pressure hose,Hydraulic hose,SEA and amp;DIN Series,Teflon hose,Nylon hose,Steam Hose,Industrial hose,Concrete hose,Drilling hose,Rotrary hose,Air hose,Water hose,Oxygen hose,Metal hose,Fir proof hose,Hose ferrule,hose fitting,hose Assembly parts,etc.
![](http://sc02.alicdn.com/kf/HTB1zZUkIpXXXXcRaXXXq6xXFXXXp/222428982/HTB1zZUkIpXXXXcRaXXXq6xXFXXXp.jpg)
Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging:
|
|
Size
|
1420*900*1100(mm)
|
Weight
|
1450kg
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
