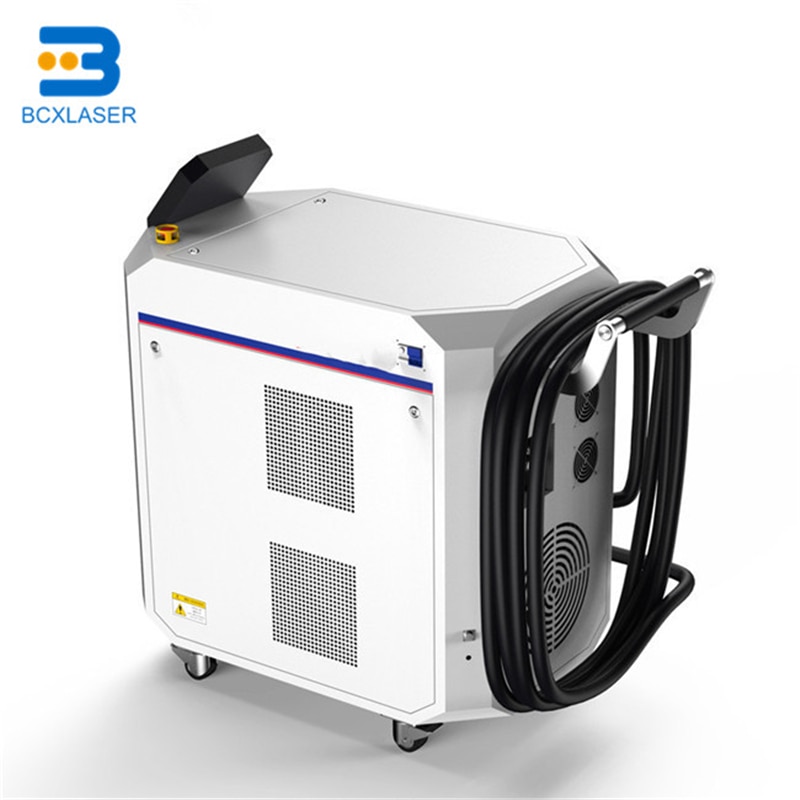

Description of high efficiency laser cleaning machine

Model

BCX-50

BCX-100

Laser power

50W

100W

Laser source type

IPG fiber laser source

Laser wavelength

1064 nm

Cooling method

Water cooling

Cooling water

Deionized water

Water temperature

18-22  ℃

Cabinet size

1420 mm*850mm*1370mm (L*W*H)

Total weight

(with water tank)

100 kg

     110kg

Maximum power

 600W

1500 W

Focal depth

10 mm

15 mm

Scan width

10-110  mm

Auxiliary gas

Compressed air/Nitrogen

Air pressure

0.5-0.8 MPa

ptional accessory

Handheld / Manipulator

Working condition

5-40  ℃

Apply to

a.        Metal surface rust removal

b.        Surface paint cleaning

c.        Surface oil stain/contaminant cleaning

d.        Coating surface cleaning

e.        Welding / coating surface pre-treatment

f.          Stone figure surface dust and amp; attachment cleaning

g.        Plastic mould residues cleaning

Features

a.        Revolutionary eco-friendly cleaning technology

b.        Non-contact cleaning, no damage to work piece

c.        Precision positioning, selective cleaning

d.        Safe and amp; environment-friendly. Without using chemical detergent or other consumables

e.        Easy to operate, with portable mode and could be equipped with robot for automatic cleaning

f.          High efficiency, time-saving

g.        Stable laser cleaning system, practically maintenance free
