2/10 Degrees High Precison Easy Operating Benchtop Spectrophotometer For Paints Inks Textiles Garments Printing and Dyeing Meter

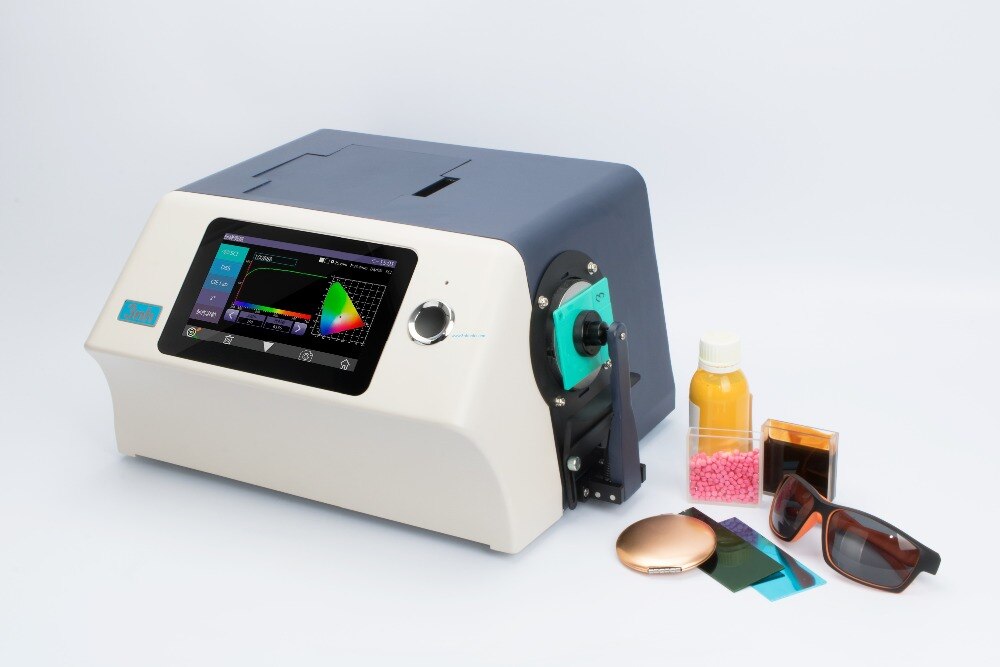

YS6010 spectrophotometer is a bench-top measurement instrument designed to evaluate the color and appearance of many measuring applications for objects’ reflectance and also the transmittance of translucent or transparent liquids and solids. It is a compact yet advanced instrument that features a side port in horizontal format and with 7.7 inch TFT touch screen, it’s very easy to operate.
With high precision and advanced capabilities, YS6010 benchtop spectrophotometer is designed for accurate analysis and transmission of laboratory color and appearance of solids, liquids, pastes, powders, pills, and granules in a more comprehensive, streamlined process. Model YS6010 is good used in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
|
Model |
Benchtop Spectrophotometer YS6060 |
Benchtop Spectrophotometer YS6010 |
|
Optical Geometry |
Reflective : d/8°(diffused illumination, 8-degree viewing angle);SCI and amp;SCE / SPIN and amp;SPEX;Including / excluding UV measurements Transmissive : d/0°(diffused illumination, 0-degree viewing angle);SCI and amp;SCE / SPIN and amp;SPEX;Including / excluding UV measurements Comply to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
|
|
Application |
It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
|
|
Integrating Sphere Size |
Φ154mm |
|
|
Light Source |
360~780nm Combined LED Lamp, 400nm Cut-off light source,420nmCut-off light source |
360~780nm Combined LED Lamp, 400nm Cut-off light source |
|
Wavelength Range |
360~780nm |
|
|
Spectral Separation Device |
Concave grating |
|
|
Detector |
256 Image Element Double Array CMOS Image Sensor |
|
|
Wavelength Range |
360~780nm |
|
|
Wavelength Pitch |
10nm |
|
|
Half Bandwidth |
10nm |
|
|
Reflectance Range |
0~200% |
|
|
Measuring Aperture |
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; Transmissive : Φ30mm/Φ25mm;
|
|
Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position |
||
|
Specular Component |
Reflectance: SCI and amp;SCE Transmittance: SCI and amp;SCE |
|
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
|
|
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
|
|
Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter), Opacity,8° Glossiness, Gardner Index, Pt-Co Index, 555 Index, |
|
|
Observer Angle |
2°/10° |
|
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
|
|
Displayed Data |
Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
|
|
Measuring Time |
About 3s (Measure both SCI and amp; SCE about 6s) |
|
|
Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%) Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) |
|
|
Size |
370×300×200mm(L*W*H) |
|
|
Weight |
9.6kg |
|
|
Power |
AC 24V, 2A Power adapter power supply |
|
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
|
Display |
7-inch TFT color LCD, Capacitive Touch Screen |
|
|
Data Port |
USB and amp; Bluetooth, Print serial port |
USB, Print serial port |
|
Data Storage Capacity |
Standard: 5000 Pcs; Sample: 40000 Pcs. (One PCS can include both SCI and SCE) |
Standard: 2000 Pcs; Sample: 20000 Pcs. (One PCS can include both SCI and SCE) |
|
Language |
English and amp; Chinese |
|
|
Working Environment |
Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
|
|
Storage Environment |
Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
|
|
Standard Accessory |
White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ15mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software, Transmissive Test Component |
White and Black Calibration Board, Checking Green Board, Sample Holder, Φ4mm, Φ8mm, Φ25.4mm Aperture, Power Adapter, USB Cable, User Guide, PC Software |
|
Optional Accessory |
Micro-printer, |
Micro-printer, Transmissive Test Component |
|
Notes: The specifications are subject to change without notice. |
||
