1.6 Inch OLED SPI Serial LCD TFT Display Screen Module 130*130 Communicate for Arduino OLED Transflective Display Module

SALE 12% OFF

1.6 Inch OLED SPI Serial LCD TFT Display Screen Module 130*130 Communicate for Arduino OLED Transflective Display Module

1.6 Inch OLED SPI Serial LCD TFT Display Screen Module 130*130 Communicate for Arduino OLED Transflective Display Module

Feature:

1.6-inch color screen, support 65K color display, display rich colors
Semi-transparent LCD, superior performance, clearly visible under strong light
SPI serial bus, only a few IO can light up the display
Onboard 3. 3V/5V power conversion chip, compatible with 3. 3V and 5V voltage levels
Operating temperature range is industrial grade (-20-70 ° C)
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Support backlight control

Specificatoin:

Driver: SSD1283A
Resolution: 130*130
Working voltage: 3.3V/5V
Viewing angle: and gt;60°
Display size: 28.86*28.86mm

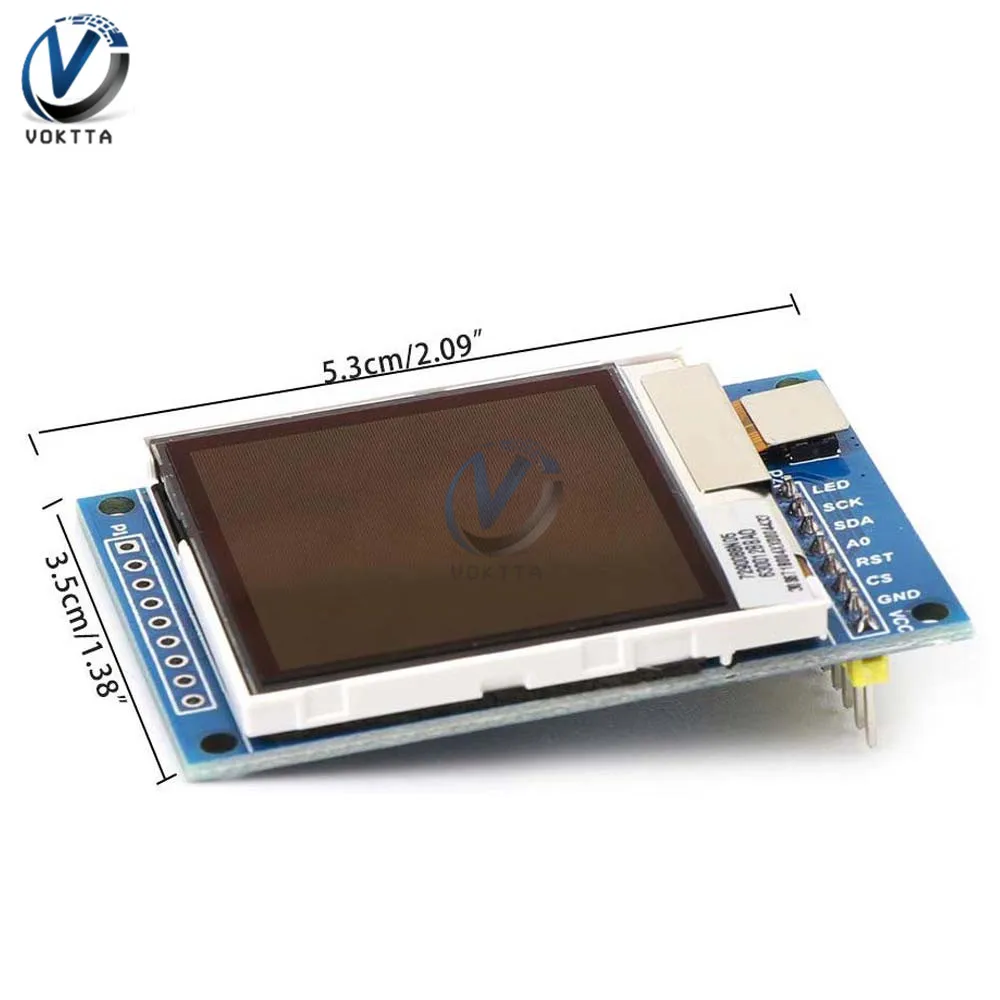

Module size: 35.4*53.82*1.6mm
Module interface: 4-wire SPI
Power consumption: about 100mA when fully lit, about 10mA when fully off

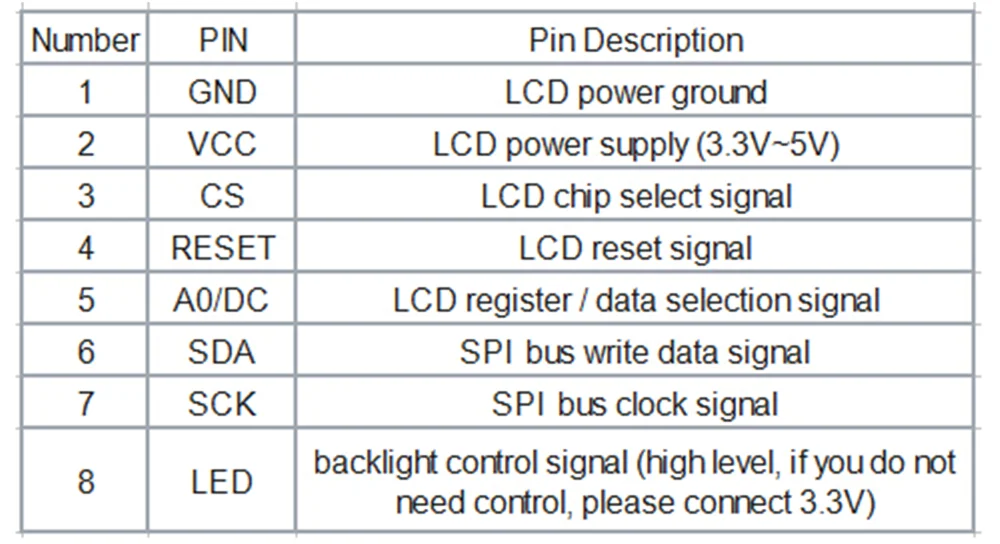

Parameter:
Package included:

1 ×      1.6 Inch OLED SPI Serial LCD TFT Display Screen Module
