Features

  • Full-circle scanning sonar detects and instantaneously displays fish schools and underwater conditions

  • Vivid 16-color display assists in recognition of bottom structure, and concentration and distribution of fish schools

  • Various fishing and navigation data* keep operator abreast of fishing and navigation conditions *appropriate sensors required

  • Four user-programmable function keys for quick set up according to fishing conditions or specific function

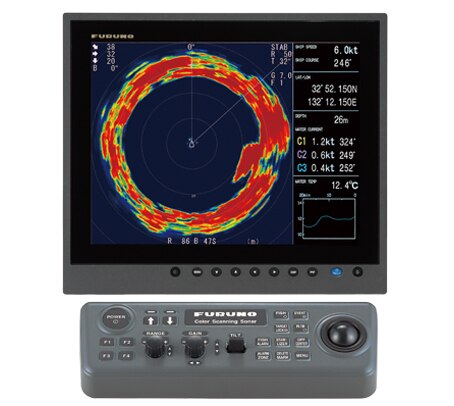

    The control unit of CSH-8L MARK-2 combines ergonomics and functions in a user-friendly manner. All controls quickly respond to the operator’s command and the associated reaction can be seen on the screen immediately. Four user-defined functions can be assigned to Function keys (F1 to F4), providing for rapid setup and operation.




    FISH: Inscribes fish mark. EVENT: Inscribes event mark.
    TARGET LOCK: Tracks trackball-selected position. R/B: Displays range and bearing marks.
    FISH ALARM: Turns fish alarm on/off. STABILIZER: Compensates for affects of ship’s pitching and rolling.
    OFF CENTER: Shifts the display. ALARM ZONE: Sets fish alarm zone.
    DELETE MARK: Deletes selected mark. MENU: Opens/closes menu.
  • High power transmitter ensures reliable operation under any conditions

  • Transducer frequency : 85 kHz

Specifications

General

Basic Range
50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m

Display Unit

Display unit
15″ color LCD FURUNO MU-150HD, or PC monitor, 1024 x 768 pixels (XGA)
Pixel number
XGA (1024 x 768)
Colors
Scan/echo: 16 colors, mark: 1color

Power Supply

Processor Unit
115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC with optional DC-AC inverter

Others

Weight
Processor unit: 3.4 kg
Transceiver unit: 20 kg
Control Unit: 3.5 kg
Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)

Equipment List

Standard

  • PROCESSOR UNITCSH-5210-A
  • CONTROL UNITCSH-5211-A
  • TRANSCEIVER UNITCSH-8030-A-8L
  • Hull Unit400 mm or 600 mm travel
  • Installation Materials, Accessories and Spare Parts

Option

  • DC-AC Inverter
  • E/S Interface
  • Retractable Tank
  • Speaker
  • Transducer Cable Extension Kit
  • Motion Sensor
  • Remote Controller

What is Scanning Sonar?

The transducer of a scanning sonar consists of many elements to transmit the echo in all directions simultaneously without rotating the transducer. The echo is redrawn on the display instantaneously according to the latest feedback from the transducer. Because this sonar scans quickly, it greatly improves the fishing operation, especially when searching for/following fast swimming fish.

Extremely Quick Scanning Speed


The CSH-5L MARK-2 completes a scan within 0.54 seconds/scan while the conventional PPI sonar*1  takes 32 seconds to train full circle under the same range/conditions*2.
About 60 times more information is provided compared to a PPI sonar.
Fast scanning lessens the chance of missing a small change in underwater conditions. This is especially helpful when range and tilt require frequent adjustment while fishing, offering no frustration on redrawing time.
*1 CH-250 PPI sonar, training at 6° steps.
*2 Based on 400 m range in combination display mode.

No Blind Area


Scanning Sonar shows the actual situation 360 degrees around the vessel, and gives all the necessary information as needed. No more blind areas to consider, allowing the operator to concentrate on the tilt, range, fishing area, etc.
