26 inch 72V 3000QW electric bicycle motor kit with LCD display battery

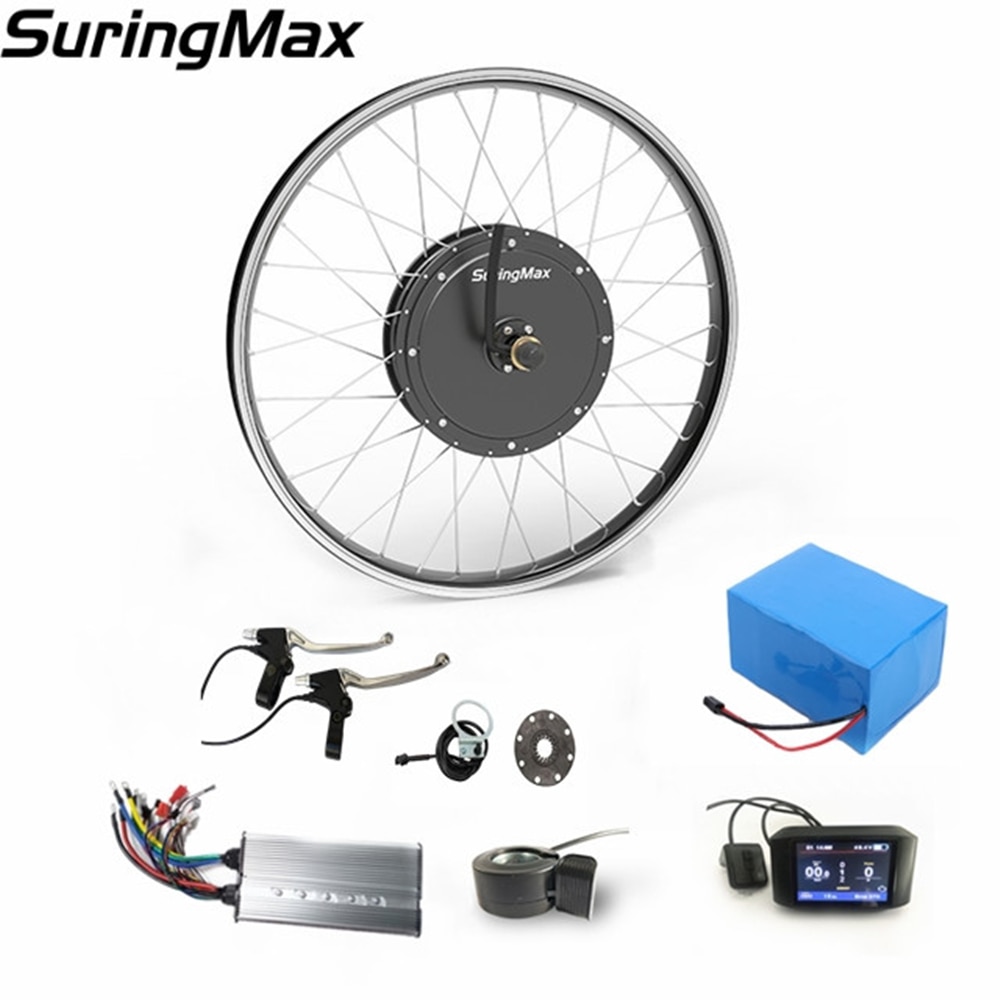

Rim +spokes+3000W hub motor+30AH battery+60A controller+ display+brake lever+thumb throttle+PAS.It has 2 pieces of hall wire,so you don’t need to be worried about the hall problem.The motor kit is waterproof type, all parts are waterproof connectors.Bicycle kit with 750C LCD display and amp; with SW900 LCD display. Please choose freely.

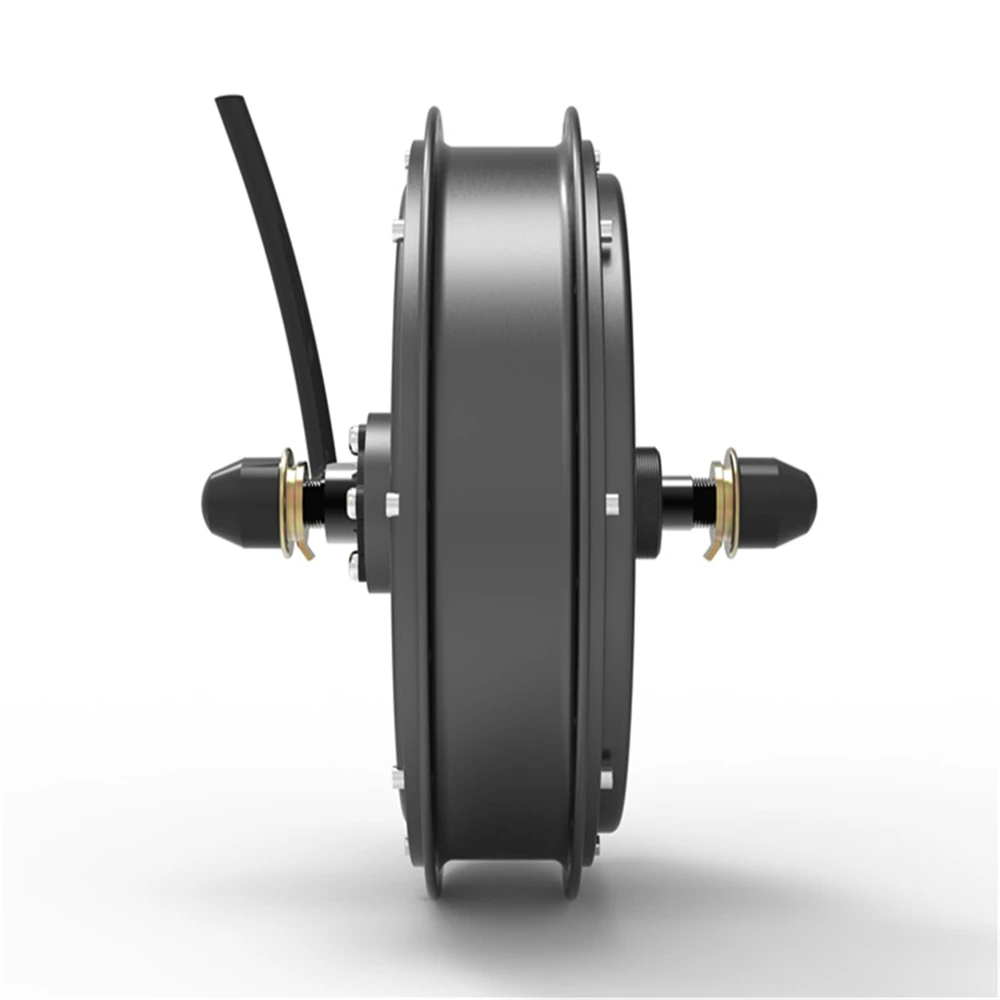

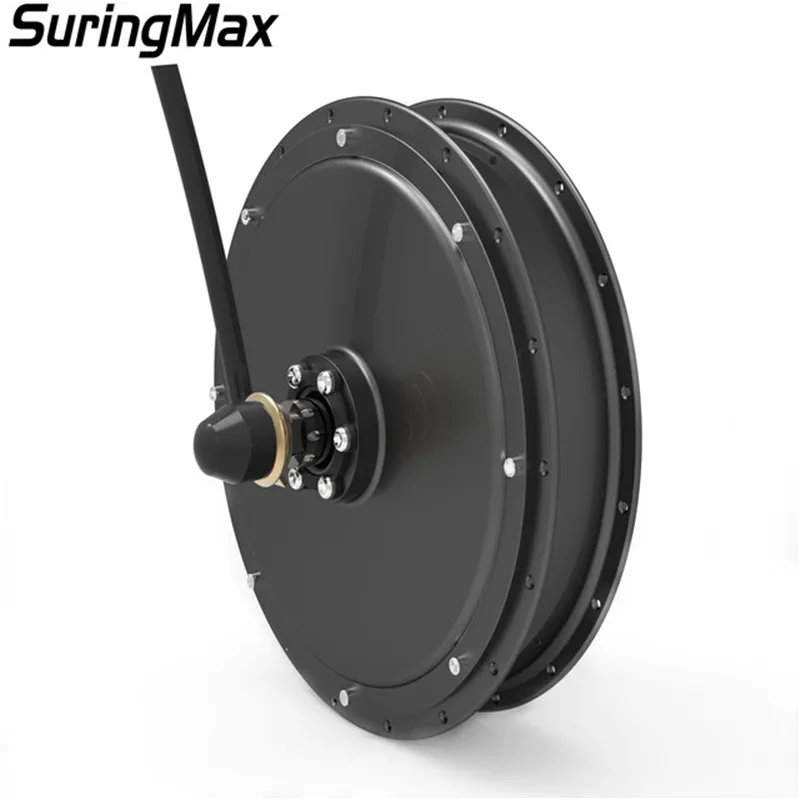

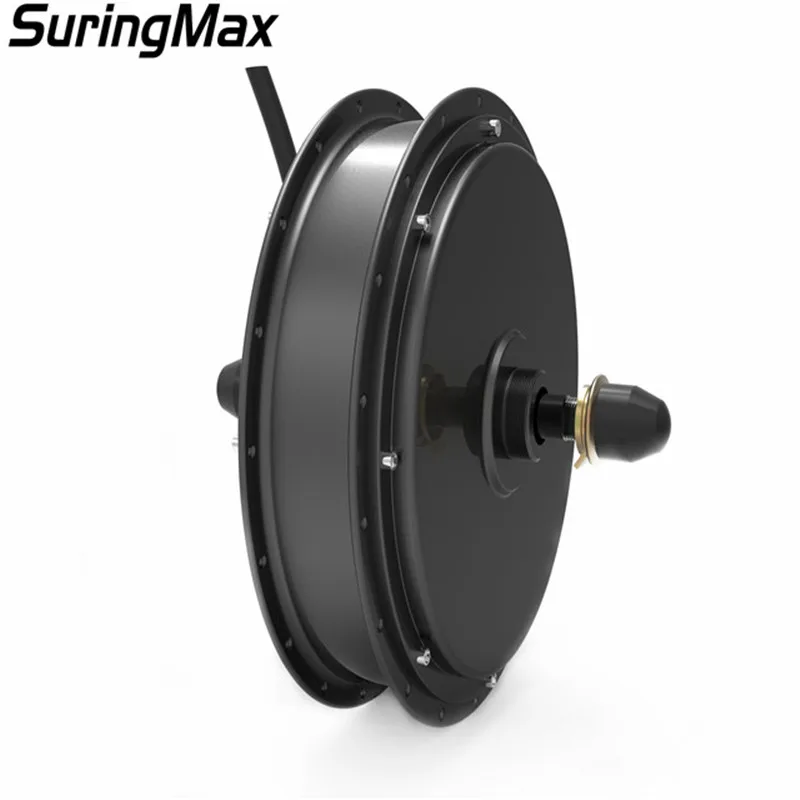

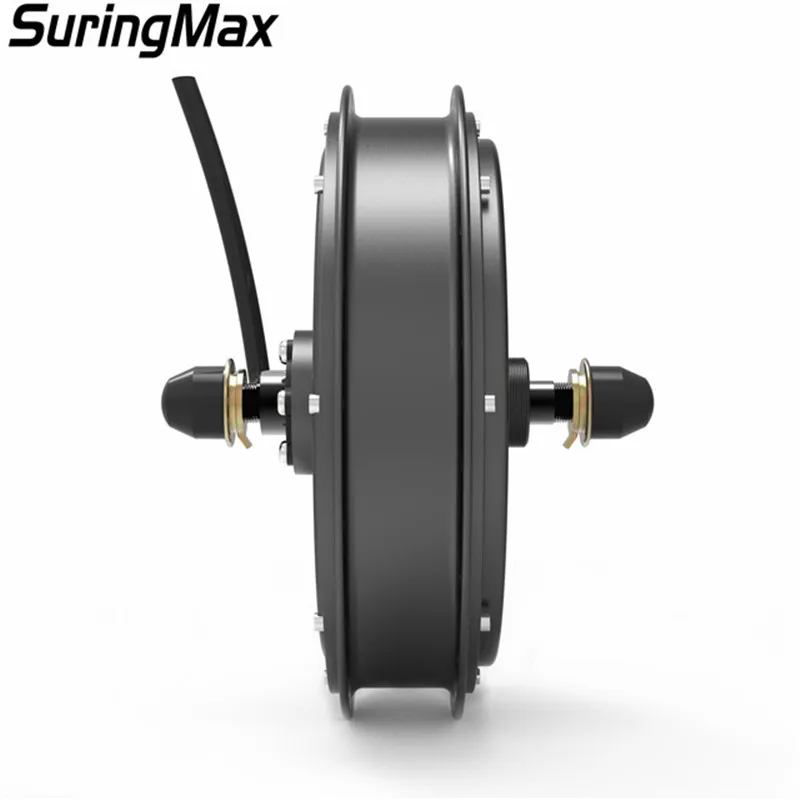

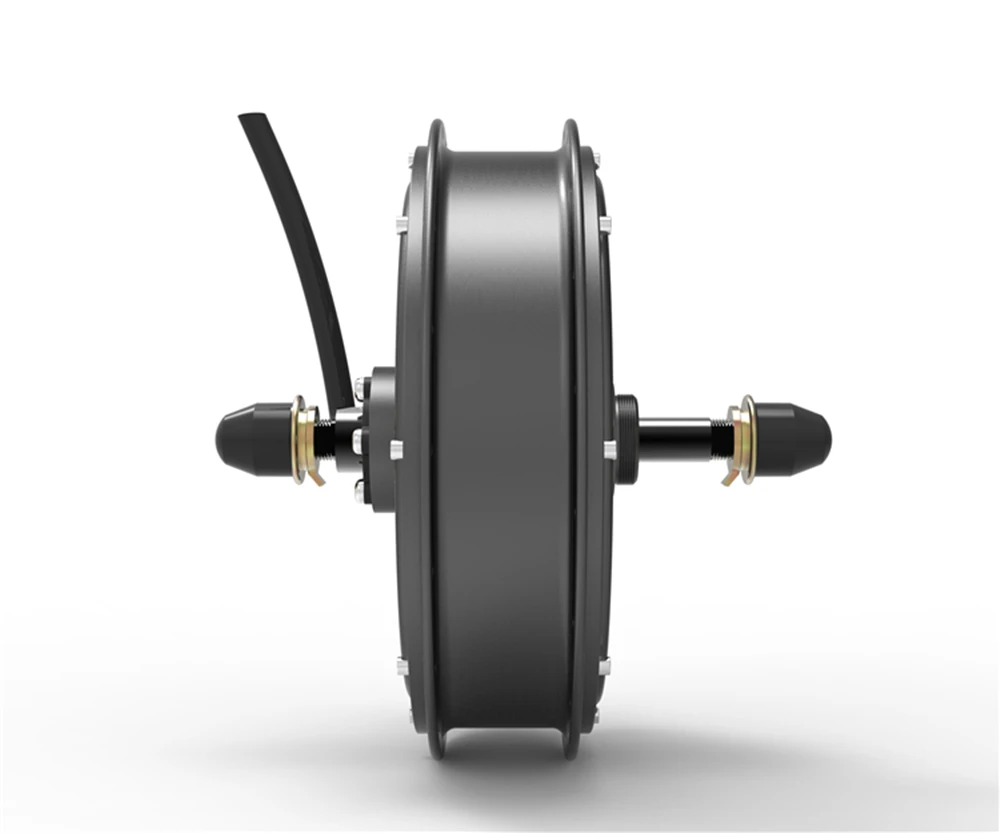

About the 3000w hub motor kit
* Rim: 26 inch double wall bike rim. Suitable tyre: 1.75-2.125.* Battery: 72V 30Ah lithium battery, 18650 LG cells. Bag and 84V5A charger come with.* Controller: 72V60A squarewave type. Dual function mode which is safer and more durable.* Display: APT 750C LCD display, colorful screen, data clear+ error report.* Brake levers: to cut off power.* Thumb throttle: smaller and easy to install.* PAS: 8 magnets pedal assist system. 0-5 levels shown in display.
Battery and bag and charger
Detail parameters:
Actuation position Rear Colour Black Rated voltage 72V Rated power 3000W Best speed 70-80km/h when loading Rated dfficiey and gt;80% Net Weight 9.5Kg Open size 135/142/150mm Drive and freewheel Single freewheel Cable location Shaft center left Spoke specification 12G Spoke hole 36 holes Phase wire 4mm2 Hlall sets 2 sets Hall sensor Optional Connector Optional Brake type Disc brake Noise and lt;50dB Water proof grade IP54If you need the motor, please tell me these details.Hope you can get a motor what you need.1)What’s the size of wheel?—-20-29inch for choose.2)What’s the voltage of your battery?—48-96V 3)How fast do you need ?—Max speed can be 100km/h. If you want other wheel size, please leave message to us. If nothing message left, we will send 26 inch motor kit at standard speed.

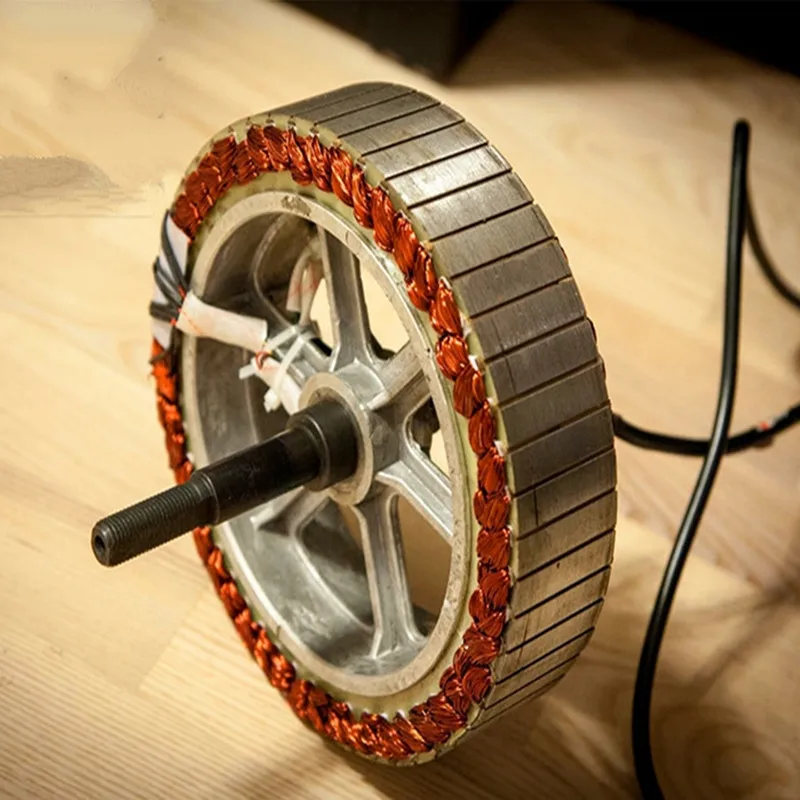

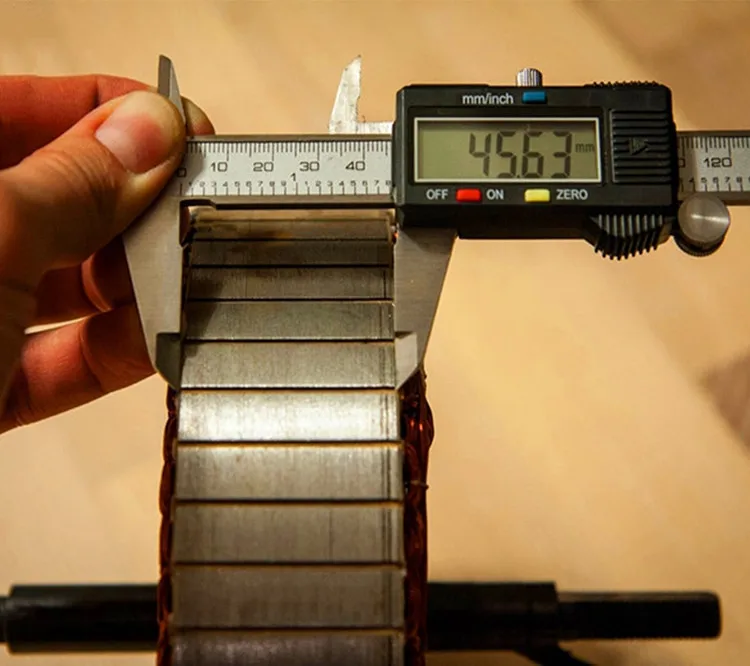

The details of the motor inside(45mm powerful stator and magnets)

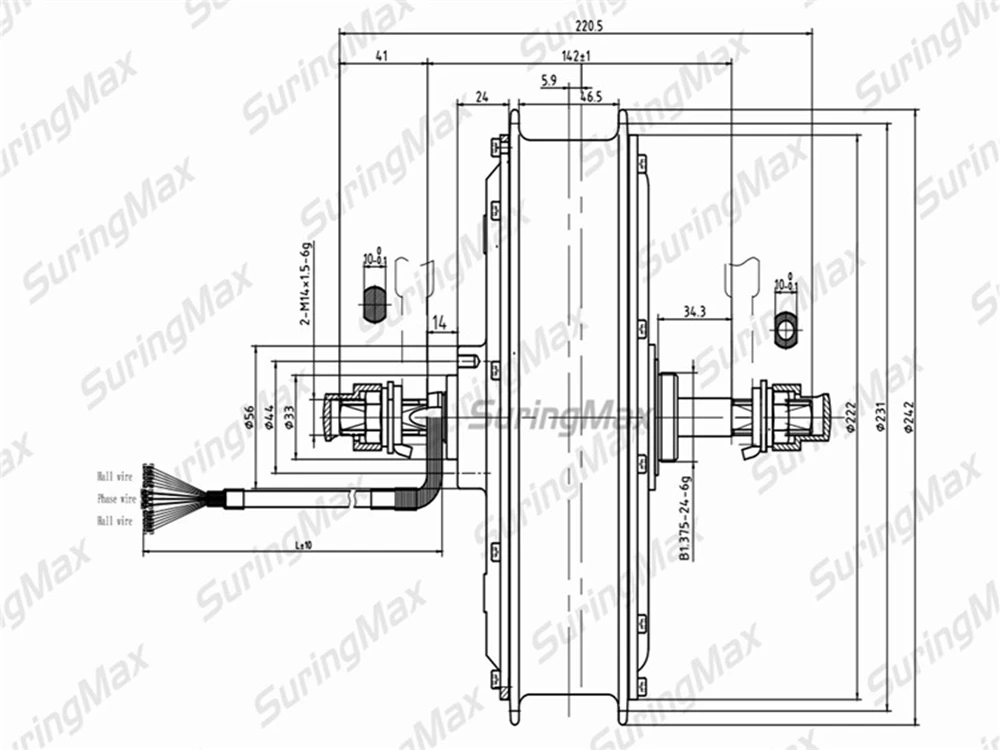

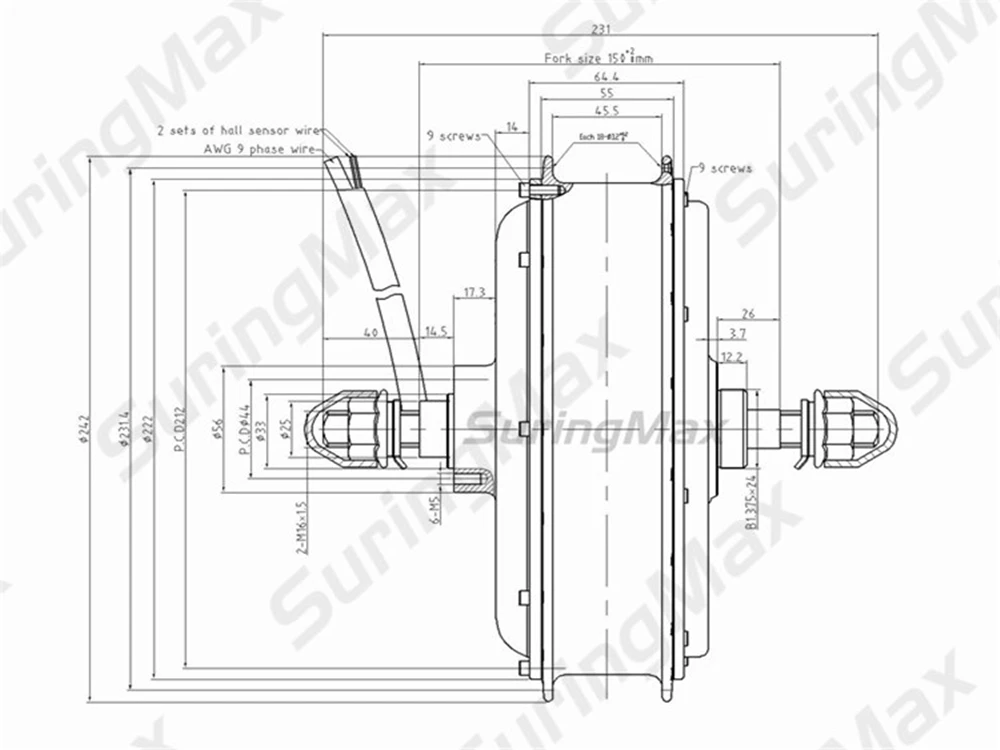

Diagram of this 3000w hub motor
135mm dropout hub motor142mm dropout hub motor150mm dropout hub motor
Warranty and Package
Motor—3 years Battery–2 years The others–1 yearYou only need to send us the video or pic to show the problem and the series number ,we will ship the new one or the repairparts together with the next shippment. Also will be post by air if need urgent!Accordning to our experience , the defective pecentage is only about 1‰ !
