WIFI Touch screen self service with thermal printer payment terminal atm kiosk Ticket Vending Machine Payment kiosk printer
Self-service Queuing System
Specifications
|
AM 8200 Series Kiosk Basic Configuration |
|
| Components | Specification |
| Computer | Industrial Host: Mother Board : Industrial POS-1711VNA(Intel845) CPU : Intel P4 3.0G (upgradeable as option) RAM : 1GB(upgradeable as option) HardDisk : 80 G (upgradeable as option) (More sizes and types of PC available upon request) |
| Monitor |
TFT LCD : 15, 17 or 19 optional |
| Touchscreen | SAW Touch : 15 17 19″ : Resolution 4096*4096 (More types of touchscreen available: capacitive, resistive or IR optional) |
| Input Device | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof |
| Card Reader | Motorized/Dip :Magcard/IC reader; Shutter(motorized); Confiscate card(motorized) |
| Printe | Thermal Printer : Width 80mm~210mm; black mark sensor; full/half cutter Dot Matrix : Width 80mm~210mm; black mark sensor; full/half cutter Bankbook :24 pin dual direction |
| Speaker | Multimedia : Left-right bi-channel amplified output |
| Enclosure | ColdRoll Steel : Steel powdercoated front Powercoated backcover |
| OS and amp;Drivers | Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related drivers available |
| Packing | Bubble Foam, carton, wooden case |
| Other Optionals : UPS, Video Camera, Alarm System, Barcode Scanner,Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc. | |

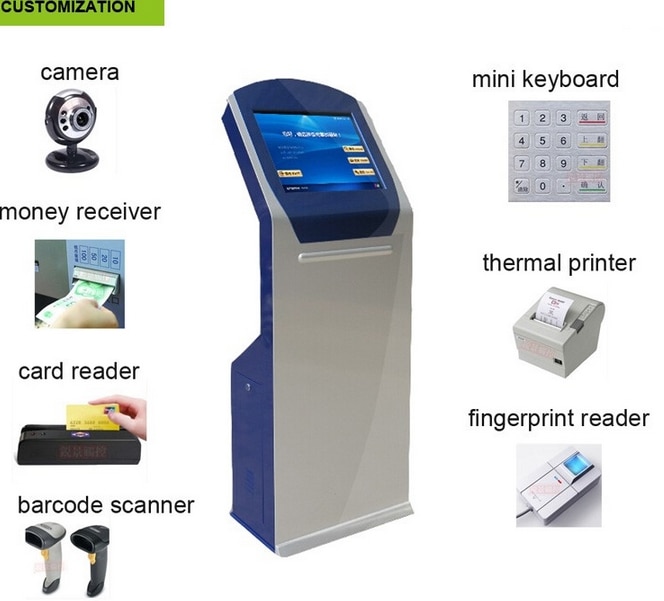

optional components:
Coin Acceptor Telephone(Land Line)
Cash Dispenser IP Telephone
Check Acceptor A4 Laser printer
Passport Reader WiFi Bluetooth
Signature Pad Camera
Card Dispenser Metal Keyboard
Card Printer
