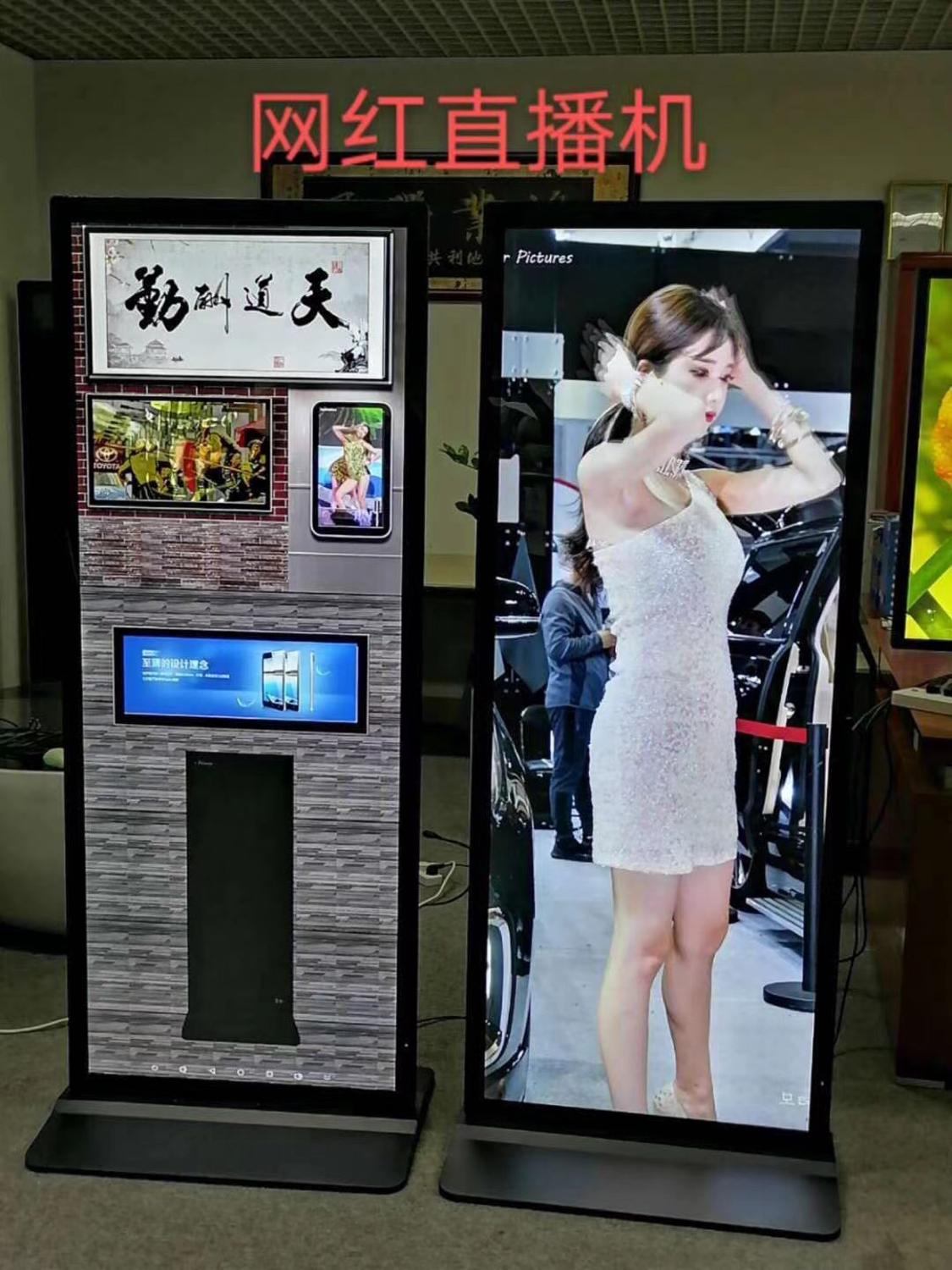

Webcast machine Wide stretched Bar digital media LCD Display monitor intalled android OS or windows OS

Webcast machine Wide stretched Bar digital media LCD Display monitor intalled android OS or windows OS



Webcast machine 19 21.5 28 38 49 65 75 80  inch hd ultra-wide stretched advertising lcd bar display    monitor lcd digital signage stretch bar screen shelves advertsing display with andriod OS or Windows OS



These products have in tock.



1—we can cstomize it as display monitor(for monitor,for advertising display….)

2—we can customize it as all in one PC buit in android OS system or Windows system.



Please specify your preference and expectation for your applications so as we can quote accurate cost.





Bar screen android tablet for business
System CPU Quad core cortex A9,1.6G,RK3188
(We can choose to use A64/RK3128/RK3288/RK3399 chip to design)
RAM 1GB
Internal memory   8GB
Operation system Android 4.4 Default
(If any Android 5.1/6.0/7.1,we need to change CPU)
Display Panel 19″bar screen
(3.”9 ~59″   Design Option We can design the screen size according to customer requiement)
We have done   21″/23.1/28.8/37/38/43.8(4K)/44.8/48.5/57.5/86/88″ before
Resolution 1920*360
Active area 476.64(H)x 89.37 mm(V)
Viewing angle 89/89/89/89(L/R/U/D)
Display mode Nomally black ,IPS
Contrast ratio 1200
Luminance 300cd/m2
Aspect Ratio Bar screen
Network WiFi 802.11b/g/n
Ethernet 10M/100M ethernet
Buletooth BT 4.0
Interface USB Host x 3 USB 2.0
USB OTG USB OTG
SD card slot SD/MMC card slot
Earphone 3.5mm earphone
Power Jack   DC input
RJ45 Ethernet
Media plays Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.
Photo jpeg
Other VESA Wall mounting
Language Multi-language
Working temp 0–40degree
Power consumption 30W
Accessories Adapter Adapter,12V,3A
User manual yes

What is the Specification of our kiosk?

Index

Model

GT43B



Outside area (mm)

720.5(W)*162(H)*56.4(D)



Display area (mm)

698.5(W)*140(H)



Size

28  inch

Display

LCD

Dot pitch

0.1845(H) *0.1845(V)

Resolution

1920×758

Brightness

500-700cd  (optional)

Contrast

3000:1

Viewing angle

89/89

Response time

8ms

Color

1677  million color

       Color Gamut

92%



Connection method

Input method

HDMI/VGA/DVI/BNC,Network board/(optional)

Video input

CVBS

Control method

RS-232    485

Network function

optional



Power

Power consumption

26W

Standby power consumption

5W

Power management

DC 24V



Mechanical indicators

Stand installation

                 Need to be customized

Weight

5.18Kg



Operating environment

Operating temperature

0℃~ 50℃

Humidity

10~80%

Altitude

3000m

Mean Time Between Failures

50000 hours



Auxiliary material

System equipment connection wire

customized

Display unit bracket

optional

Connection wires

,                            Power line, serial control line



MODEL
GT49M
Screen Size
49 inch
Display Area
1209.6*320mm
Resolution
1920*508
Brightness
500cd/㎡
Contrast
1000:1
Color
16.7M/8bit
Viewing Angle
89°/89°/89°/89°(L/R/U/D)
Touch Screen
Optional
I/O
HDMI*1, VGA*1
All-in-one Solution
Optional
Power Input
100-240 VAC, 50/60 Hz
Power Comsumption
100W
Net Size
1244.6*363.1*52.2mm
Net Weight
16.8kg
Appearance
Black/white metal shell, Anti-glare glass (optional)
Installation
Shelf bracket (optional), VESA holes (optional)
Accessories
Power cord





Product Pictures




23 inch ultra Wide stretched Bar digital media LCD Display for shelf edge



This is our Unique Design,hot used for coffee shops, hotels ,restaurant,shopping mall etc public places now.



It’s HOT selling because of tilt design, and portable friendly application.



For the functions, there are TWO Solutions for option:

One is Media Player USB solution, another is Android os WIFI network solution



Media Player USB solution main features are:

1. Auto loop play video and image when power on
2. Auto copy content from USB to SD card
3. Timer on and off



4.Support format:
       Video: AVI,MKV,FLV,TS,VOB,TS,MKV, MPG, MP4,RM, RMVB etc
       Audio: MP3,WMV
       Photo: JPEG,BMP,GIF

5.Slide show, loop, repeat playing playing type



The second solution are Android OS network

With Content Management System (CMS ), the user may manage hundreds of displays from different location. It saves time, cost and management easily operate.

What’s more, the user may output the program to USB, and copy content to display by hand.

Most of all, the data analyze in the platform are helpful for advertising effect review.
