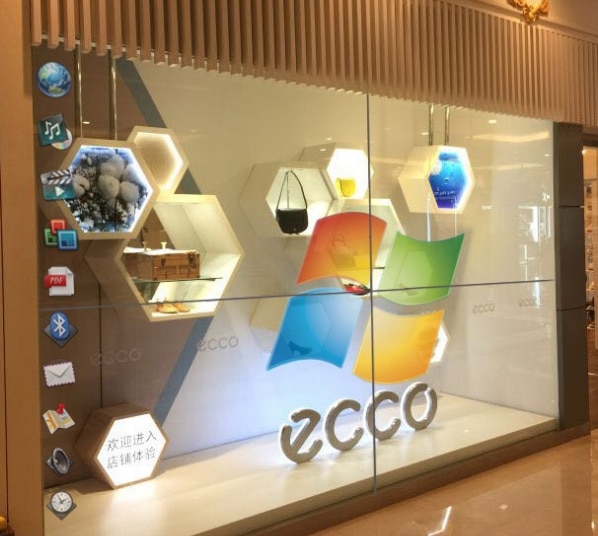

Transparent lcd video wall for shopping mall advertising display CCTV Video Wall
splicing LCD screen
Product Description
| LCD Panel | Model | Custom DID LCD Panel |
| Resolution | 1920×1080(H×V) | |
| Pixel Pitch | 0.53025×0.53025(mm) | |
| Brightness | 700(cd/ m ) | |
| Contrast Ratio | 4000:1 | |
| Response Time | 6ms | |
| Display Color | 16.7M | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Image | Aspect Ratio | 16:09 |
| Compensation Technology | LTI,CTI | |
| Motion Compensation Technology | AUTO MOVE | |
| Filter | 3D combing filter, Digital noise reduction | |
| Video Formats | PAL,NTSC | |
| Signal Source | Composite Video Input | CVBS(BNC) ×1; |
| Composite Video Output | CVBS(BNC) ×1 ; | |
| Digital Signal Input | HD×1; 1920×1080@ 60Hz Backwards compatible | |
| Computer Signal Input | VGA(DB-15) ×1;1920×1080@ 60Hz Backwards compatible | |
| Digital Signal Input | DVI(DVI-I)×1;1080P(1920×1080) Backwards compatible | |
| Built-in Controller | Computer Centralized Control Interface | RS232 |
| Function | Signals combine and display arbitrarily | |
| Automatic Temperature Control | Work automatically according to the set temperature and actual temperature of the machine to control fan operation | |
| System | Image Signal Gain | A more stable and correct image control |
| Operation Mode | Computer centralized control | |
| Bus Control | I C | |
| MTBF | 50000 hs | |
| Power Supply | Voltage | 100~240V |
| Power Consumption | 230W | |
| Sructure | Frame Size | Upper side:3.5mm; lower side:1.7mm; left side:3.5mm; right:1.7mm |
| Installation Dimensions | 1024mm×578.6mm×141.5mm | |
| Display Area | 1018.10mm×572.70mm | |
| Installation Position | 564×200(mm) | |
| Material of Shell | Metal | |
| Installation | Standard cabinets, custom cabinets | |
| Weight | G.W. | About 31Kg |
| N.W. | About 22Kg | |
| Environment | Storage Temperature | -20°C~65°C |
| Working Temperature | 0°C~55°C | |
| Working Humidity | 10%~90% | |
| Quality | Quality Assurance | CCC, FCC, UL, CE, RoHS |
| Environmental Protection Standard | All components and packaging materials are in line with international environmental standards |
