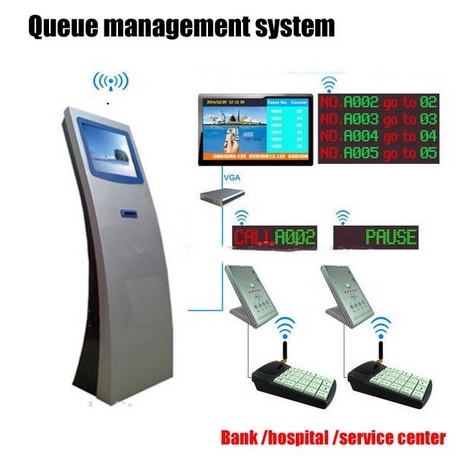

versatile standing electronic queue management system led display queue ticket machine
It supports  any standard size from  17/19/22/32/42/55inch.
Support OEM/ODM.can base your requirements and customize what you want.

17″ Touch Screen Ticket Kiosk

Model:BEM-QM17

Dimension(H*W*D):133*57*59cm

Net Weight:30KG

 Cold Steel stand cabinet

17” SAMSUNG TFT LCD Display

17” SAW Touch Screen

 EPSON 80 mm Thermal printer with auto cutter

Embedded computer

Intel Atom 1.6G processor

2G DDR2 Memory Card;

16G Solid disk4 USB Port;2*RS232 port

Inbuilt speaker and amplifier

OS:WINDOWS XP/7 supported

 Ethernet Port:10/100 Ethernet port RJ45

 Support 1-32 Services,1-64 Counters

 Any language can support,

Inbuilt Wireless Module and Communication Controller

2.19-Key wireless Keypad QYK19

Model:AMM-K19

Dimension(L*W*D):150*90*20mm

Net Weight:0.26K

*19-key wireless multiple function keypad; 6 digits LCD display; four digits display service numbers,two shows waiting people, 220V power supply can be directly connected

*Function: ”Call” Recall” “Transfer” “Special Call” and so on

3.Wireless LED display(Aluminum)

Model:AMM-LD

Dimension(L*W*D):310*110*45mm

Net weight:1.2KG

 F3.75 single color ;8 Digits bright light tube ;4 Character LED Display:4 digits display ticket number, with window screen available(Ticket Number→Counter Number) ,12V DC connected

4.Main LED Display Screen (wireless)-Optional

Brand:AMM-LDW

Model:AMM-LDW

Dimension: 67*53*7(cm)

Net Weight:3KG

 *F5.0 indoor RED color LED display,4 Rows Display and 10 digit in each row

Content can be customized by customer ′s needs

*Wireless one

*Can put on the Waiting Area for indicate customer

5.Multimedia and Information Player Box-Optional

Dimension(L*W*D):200*190*60mm

Net weight: 3KG

*Video output: at least can support the image with the resolution of 1024 × 768 / 75 Hz ; Inbuilt Software

*Supported video formats: MPEG-1,MPEG-2 MP@HL,MPEG-4 ASP@L5,etc

*Image formats supported:JPG, BMP, static GIF, and provides a 10 / 100 M adaptive fast Ethernet interface

*storage media: standard 4G memory card;

6.Queue System Software AMM-Q2016S

Queue Management System software: control and manage the queues, can realize the function of Multiple language calling and Multiple language translation, Arabic language, French, etc also supported,and can realize the report statistic function

Interface and language and ticket format can be customized, and you can add logo or some other information on the ticket, like time, waiting people, and etc
