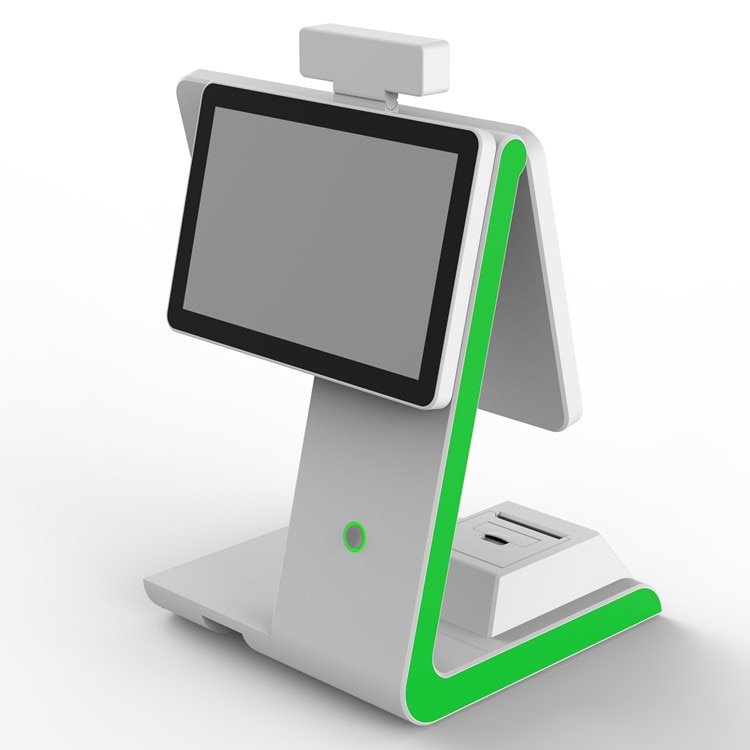

Passport scanning system OCR card reader + 10.1 inch / 13.3 / 15.6 inch dual screens payment POS terminal
Features
Ø 1.Windows O/S;
Ø 2.J1900 motherboard;
Ø 3.Trail-D Celeron 2.0GHZ(max to 2.4GHZ) .2G+32G;
Ø 4.15.6 /15/11.6 inch capacitive touch screen;
|
|
|
|
|
HKS10-F |
AGS10-FW |
Win dows |
|
AGS10-FA |
Android |
Specification
|
CPU |
Intel Celeron processor J1900 (2M Cache,up to 2.42GHz) |
|
Intel I3 or I5 main board at optional |
|
|
RAM |
2GB (can upgrade to 4GB/8GB) |
|
ROM |
SSD 32GB(can upgrade to 64GB/128GB/laptop hard drive 500GB) |
|
Display |
Main screen: 15.6 /15/11.6 inch capacitive touch screen,resolution 1366*768/1920*1080 |
|
Customer (Vice) screen: LCD (2 Lines*20 Characters), VFD, 7/11.6/15.6 inch LCD screen is optional |
|
|
Interface |
DC24V*1;COM*2;CASH*1;RJ45*1;USB*4;TF/SIM*1;AUDIO*1;VGA*1, HDMI*1 |
|
Others |
Include build-in camera and printer (At optional) |
|
Printer(optional) |
58/80mm Thermal printer |
|
Printing speed:90-175mm/s |
|
|
Simple drop-in-paper loading |
|
|
Auto-cutter(obly for 80mm thermal label printer) |
|
|
Interface:USB port/COM port |
|
|
4G LTE |
4 WCDMA HSDPA /EDGE/GPRS (Optional) |
|
WIFI |
IEEE802.11b/g/n OR wapi (optional) |
|
Optional Accessories |
Identification card reader (RFID):reading time≤1s, reading distance≤50mm;RS232 or USB |
|
Barcode Scanner:can install 1D/2D scanning module |
|
|
Wide dynamic range camera:professional photographic senor interface: USB/UART/SPI |
|
|
MSR(magnetic stripe card reader):can choose from two sizes |
|
|
Support OCR |
|
|
Operating Environment |
Work Temperature: -10℃ to 50℃ |
|
Storage Temperature: -20℃ to 70℃ |
|
|
Humidity: 95% non-condensing |
|
|
Package |
Standard industrial package(single box with inner PE foam) |
|
Size |
Different type and configurations will be different |
|
Power Adaptor |
The Word Standard:input 100-240V;output DC24V |
|
Optional module |
MSR (Track1/2/3) |
|
RFID (13.56MHZ, Mifare) |
|
|
58MM thermal printer (Without auto cutter) |
|
|
80MM thermal printer (With auto cutter) |
|
|
Upgrade the configuration |
Memory from 2G to 4G |
|
Hard disk from 32G to 64G |
|
|
Hard disk from 32G to 128G |
|
|
Extend two more serial port (COM port) |
|
|
Customer display from LCD (2 Lines*20 characters) to VFD (2 Lines*20 characters) mode |
|
|
Customer display from LCD (2 Lines*20 characters) to 7 inch LCD mode |
|
|
Camera (USB interface, 1M pixels) |
|
|
4G Wireless Communication |
|
|
Upgrade J1900 to I3 main board |
|
|
Upgrade J1900 to I5 main board |
handheld android wireless pos terminal with barcode card reader
| Wireless Mini POS Machine with Thermal Printer | |
| Specification: | |
| OS | Android 5.1 |
| CPU Frequency | 1.3GHZ Quad Core |
| RAM | 512MB DDR2 |
| FLASH | 4GB Nand Flash |
| LCD Screen | 5.5″IPS, qHD 960*540 |
| Touch Screen | Capacity Dual-poit Touch Screen |
| Camera | 200W FF Macro |
| Speaker | Single Track 1W, Volume Up to 90 DB(Adjustable) |
| Mircrophone | 1xMIC, Acoustic Wave Payment Supported |
| 3G | GSM 900/1800, WCDMA 900/2100 |
| WIFI | WIFI 802.11b/g/n (2.4G) |
| Bluetooth | bluetooth3.0/4.0, IBEACON Supported |
| Button | 1xPower button, 1xScan button |
| Interface | 1xMicro USB Debug Port, 1xSIM Card Slot, 1×4 Section Headphone ho |
| Battery | 7.4V/5200mAh |
| Printing | Line thermal printer |
| Printing paper width | 58mm |
| Printing speed | 50mm/s |
| Printer service life | 50km |
| Roll diameter | 40mm |
| Dimension | Terminal: length216.6mm*width89.2mm*height57.9mm |
| Charging Base: length215.7mm*width89.9mm*height28.5mm | |
| Thimble Type Charging Base |
INPUT: AC100~240V/1.5A 50/60Hz |
| OUTPUT: DC12V/1A | |
| Box size | length253mm*width237mm*height75mm |
| Weight | 1.2KG |
15 inch touch screen touch android pos device terminal with build In thermal printer pos thermal
we can customize for you,specially designed for your supermarket, restaurant, and retail shops.
SAFETY TOUCH 5000 TIMES: pos-0056S touch pos system 15′ 5-wire resistive touch-sensitive screen allows brightness and amp; touch-sensitive:1. with display switches, lights, the use of 5-wire resistive touch screen.
2. scratche-resistant, anti-oil, water-proof, fog-proof, high definition screen.
3. you can adjust the display brightness, parameters and datas via the smart key on the fusetage.
2 units in a carton, size: 71* 44* 50cm, 20kgs.
Delivery time: 7-20days according to the order quantity. ( for 250pcs, normally is 20days delivery time.)The Workshops
TIME RECORDER:
Here is time recorder long-time testing room, can load more than 4000pcs one time testing. All machines must over 48hours and every hour have QC testing machine under different steps.
BARCODE SCANNER:
More than 72hours testing under power and passed by QC before packing. Can load around 6000pcs per time.
1D and amp; 2D scanners.
CASH REGISTER:
ECR-0013 cash registers with one station of 58mm thermal printer, can load around 300pcs per time in this testing room.
THERMAL PRINTER:
58 and amp; 80mm thermal printers will be here of long time testing more than 72hours before packing.
Can load around 2000pcs per time on testing.
