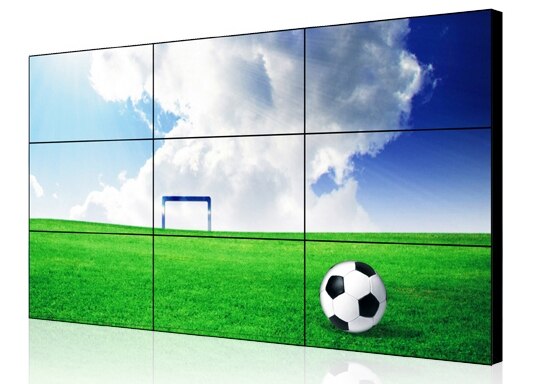

LCD  Video  Wall  Screen(Samsung  DID)
Specifications
Model  No. AM-M46SDB-S10MM
Panel  Size 46″  Samsung  DID  LCD  Screen(with  narrow  bezel10mm,with  LED  Backlight)
Display  area 1018.28mmx572.87mm
Aspect  Ratio  16:9
Max  Resolution  Support 1920×1080
 Color 16.7M
Pixel  Pitch(mm) 0.53025H×0.53025  (V)
Brightness  (nits) 700cd/m2
Contrast  4000:1
Visual  Angle  (H/V) 178°(H)  /  178°(V)
Response  Time 6ms
Life(hrs) and gt;60,000(hrs)
Input  and  output
Composite  Video  Input CVBS(BNC)X2
Composite  Video  Output CVBS(BNC)X2
USB 1
HDMI 1
DVI DVI(DVI-I)X1
VGA VGA(DB-15)X1
RJ45  Input   1
RJ45  Output   2
Audio  Input 1
Split  Screen Support  Picture  in  Picture(PIP/POP/PAP)
Power
Power  Supply AC100V240V
Maximum  Power  Consumption 110W
Standby  Power  Consumption and lt;=3W
Temperature
Working  Temperature 0~55
Working  Humidity 10%~90%
Dimension 1028mm×582.6mm×70mm







Application:
LCD video wall can be widely used in Business, Education, Conference and meeting rooms, Government, Network Operations Centres, Residential, Healthcare, Restaurant and Hotels, Retail, Houses of Worship, Entertainment, Broadcasting, Board Rooms and complete Building Scenarios.

Advantages:
Signal any combination of tiled display,
Full screen display wall,
Independent single-screen display, partial tiled display,
DVI / CVBS loop-through display (copy),
All the way to signal any window roaming, scaling, frame blanking


Benefits:
Automatic intelligent temperature control system, energy saving and environmental protection.
Metal housing, anti-static, anti-magnetic, anti-strong electric field interference
Standard rack mounting structure, standardization, modularity enables quick splicing installation
Industrial design, 60,000 hours of uninterrupted work, stable performance


Instructions:
Buy the proper video wall. Wall mounts will have both size limits and weight capacities. Select a location for the video wall.
Read user manual before installation. Use only those devices provided or recommended by the manufacturer.
LCD panel are extremely fragile. Installing and removing must be done by two or more people.
Set-up is better done by the engineer guy.

Remark
Use the attached specified cables so as not to interfere with signal reception.
Please use the supplied power cord or equivalent to ensure FCC compliance.
Please use a good quality shielded video signal cable.
Use of other cables and adapters may cause interference with radio and television reception.



Ultra Narrow Bezel Optional:8mm, 5.3mm, 3.5mm
The OverView series comprises 46″ and 55″ LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.

In the field of large-screen mosaic, traditional DLP big screen has gradually lost
competitiveness because of the high maintenance costs and it does not fit to display
the high-definition dynamic images. Large-screen LCD video wall began to widely
used in the industry because of the advantage of its excellent high-tech display,
low power consumption, cheap and convenient maintenance.







Applications

LCD Video Wall Displays

The  AutoMedium LCD video wall is an excellent solution for both large and small control rooms, especially where space is limited. It’s an easy to operate, self-contained LCD video wall display for network monitoring, emergency operations, process control, security monitoring and military applications. This economical video wall employs either “thin bezel”, or the latest “ultra-thin bezel” commercial LCD displays with LED back lighting. This LCD video wall display is expandable to grow as your requirements grow. Select from four high-definition screen sizes. Combine this LCD video wall with matching control room furniture manufactured to your specifications.



How the Auto Medium LCD Video Wall Works

The  AutoMedium LCD video wall display offers the most advanced screen management tools available. Easily assign an individual image to fill each screen, assign multiple images to each screen, or enlarge an image across the entire screen matrix, or part of the screen matrix. Build the LCD video wall display with as many screens as space allows. Ultra-thin bezels are the least distracting when enlarging images across multiple displays, however if you don’t plan to enlarge images, the less expensive thin bezel models may be the best choice.

AutoMedium 2×2 LCD Videowall AutoMedium  2×2 LCD Videowall AutoMedium  2×3 LCD Videowal
The  AutoMedium LCD video wall cabinetry is uniquely designed to provide easy equipment access while shifting the weight of the displays from the wall to the floor. Although the cabinetry is attached to the wall, it rests on the floor. This is of critical importance because the walls of most commercial buildings are not constructed to support the weight of multiple large displays. This is an obvious safety concern, especially in earthquake zones. The base cabinet is the conduit for cabling and the storage space for racked electronics. The cabinetry is modular, expandable and easy to relocate.
AutoMedium video walls with commercial grade LCD panels and high-definition signal processing combine to form a powerful monitoring tool that’s easy to learn and simple to operate.


1.High-definition direct view LCD panels with video processor (controller) and optional sound settings.

2.Windows software with wireless keyboard and mouse operation; touch panel control optional.

3.Simultaneously display internet, network applications, individual computers, cameras and TV sources.

4.Size and move images across the entire video wall matrix with the click of a mouse.

5.Image processing compensates for bezels; no information is lost.

6.Modular, expandable and customized to ceiling height and wall space.

7.Installation and training completed in one day in most cases.

2×3 Matrix with Multiple Images 2×2 Matrix with Enlarged Image 2×2 Matrix with Enlarged Image

More About LCD Video Wall Technology

 LCD video walls  are basically comprised of commercial grade flat panels placed edge-to-edge with a video processor. This high-definition LCD video wall display system with LED  back-lighting  is mounted on the wall using a steel apparatus that ensures adequate alignment, or is installed in a specially designed freestanding cabinet like our Visionmaster video walls. You can expect the depth of installed displays to be between nine and twelve inches depending on method of mounting and screen size. LCD panels designed for videowalls have improved significantly in recent years making them the preferred choice for small spaces and limited budgets, however they don’t last forever and will eventually have to be replaced. LCD panels are getting larger, slimmer, lighter, and are now available with thin enough bezels (frames) to make them a solid alternative to projection cubes for video walls. However, LCD panel manufacturers are changing their product lines frequently, so when yours eventually fail, you want a manufacturer that can replace it with an identical model years after purchase.
