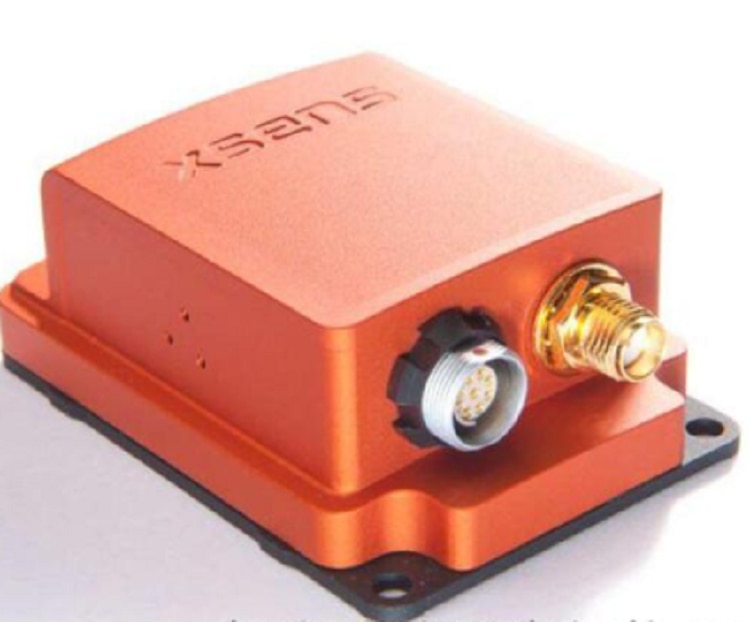

The MTi 100-series

The MTi 100-series features  vibration-rejecting gyroscopes  and accelerometers, and offers high-quality position, velocity, acceleration, and orientation,  even in challenging environments.

The all-in-one sensor system supports optimized temperature calibration, high-frequency position and orientation output, and has configurable output settings for synchronization with any third-party device.

The MTi 100-series is ruggedly built, with a protective, anodized, IP67 waterproof aluminium housing, waterproof connectors, and special studs for easy mounting and aligning.



MTi 100-series Gyro bias stability Roll/Pitch (Static | Dynamic) Yaw Position/Velocity
MTi-100 IMU
10°/h



MTi-200 VRU
10°/h
0.2° | 0.3°
unref.

MTi-300 AHRS
10°/h
0.2º | 0.3º
1.0°

MTi-G-710 GNSS
10°/h
0.2º | 0.3º
0.8°
yes
Input voltage
4.5-34V or 3V3
Typical power consumption
450-950 mW
IP-rating
IP 67 (encased)
Temperature
-40 to 85 ºC
Vibration and shock
MIL STD-202; 2000 g for 0.5 ms
Sampling frequency
10 kHz/channel (60 kS/s)
Output frequency
Up to 2 kHz
Clock drift
10 ppm or external reference
Latency
and lt; 2 ms
MTBF
300,000 Hours
Standard full range gyro
450º/s (1000 º/s optionally)
Standard full range acc
200m/s2
In-run bias stability gyro
10º/h
Bandwidth gyro
415 Hz
Bandwidth acc
375 Hz
Interfaces
RS232/RS485/RS422/UART/USB



MTi-300 application scenarios:



Payment:We can accept all payment by Escrow

1. We can ship to all over the world.Items will be shipped within 1-3 business days after we verify your payment.

2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.

3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FEDEX EMS TNT and so on.

4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don’t receive the item within thirty days, please contact us, and then I will help you track it

.

1. Please confirm the receipt of the products after you get them.

2. If you have any question for the products you received, please contact us in time and we will try our best to solve the problems and make you satisfied.

3. Please kindly not forget to   give us the positive feedback for 5 star.

模式

精度4

反应时间5

最大速率

RTK( and lt;30KM)

    8mm+1ppm水平

  15mm+1ppm 垂直

<20ms

 50Hz

DGPS

    0.25m+1ppm水平

    0.5m+1ppm垂直

 <20ms

 50Hz

SBAS5

    0.5m水平

    085M垂直

<20ms

 50Hz
