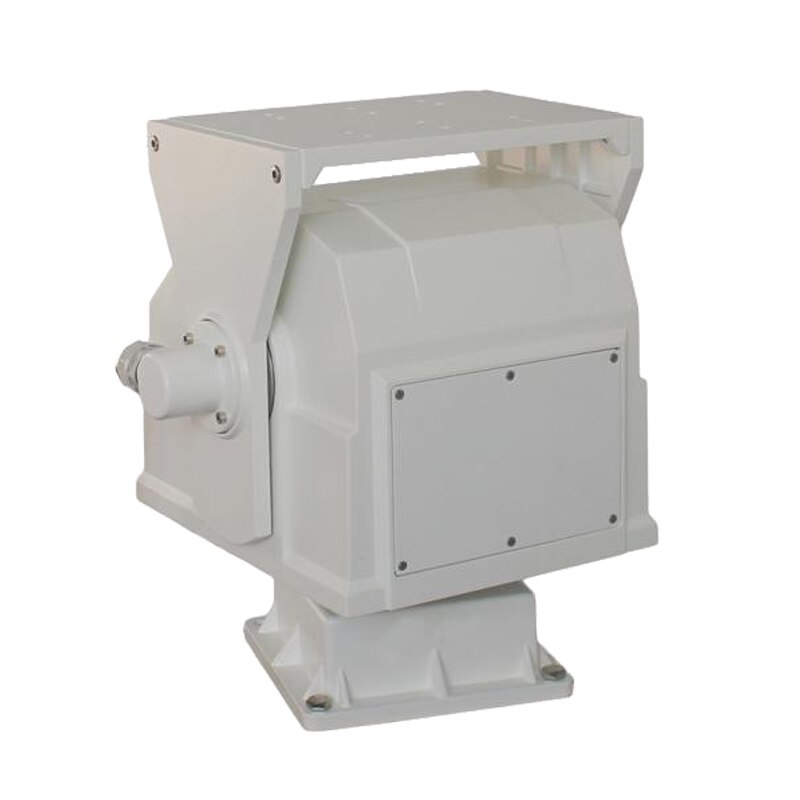

█ Product Image
█ Features
1、Maximum load can reach 22Kg and 35Kg; IP66 protection;2、Support various scanning methods such as cruise scanning and pattern scanning;3、Support multiple lens preset functions; the whole machine is easy to operate and maintain;4、Optional PTZ azimuth value, camera focal length value, focus value, and other information return functions;5、Support power off memory function, automatically return to the monitoring scene before power off after power on;6、Horizontal 360 ° continuous rotation; horizontal speed up to 40 ° / S; high repeat positioning accuracy, up to ± 0.01 °7、Support watch function, preset point / pattern scan / cruise scan can be automatically called after staying in idle state for a specified time;8、The shell is made of high-strength aluminum alloy die-casting material, worm gear drive, synchronous belt drive mixed mode, self-locking when power off.
█ Product Size(mm)
█ Specifications
|
model |
JSA-EFPTZL22 |
|
spinning speed |
Horizontal: 0.01 ° / S ~ 40 ° / S |
|
Rotation angle |
Vertical: 0.01 ° / S ~ 15 ° / S Horizontal: 0.01 ° / S ~ 20 ° / S |
|
transfer method |
Vertical: 0.01 ° / S ~ 10 ° / S |
|
Carrying method |
Horizontal: 360 ° continuous; Vertical: -75 ° ~ + 40 ° |
|
Preset |
Worm gear drive |
|
Preset accuracy |
Top load (Side load compatible) |
|
Lens preset |
Support 256 effective preset positions |
|
Lens control |
± 0.01 ° |
|
Adaptive |
Support, can adapt to multiple lenses |
|
Auto cruise |
Zoom, focus control speed is continuously adjustable |
|
Auto scan |
Support speed adaptation |
|
Watch function |
4 |
|
Power-off memory |
1 |
|
Protocol |
1 preset position or 1 auto cruise route or 1 auto scan route can be set |
|
Baud rate |
Support (can restore the position before power failure, preset position status, cruise status, line scan status) |
|
Communication Interface |
Pelco D / P protocol optional |
|
Input range |
2400/4800/9600 / 19200bps optional |
|
power consumption |
RS485 communication, support angle query backhaul; / RJ45 network port (network PTZ configuration) |
|
Operating temperature |
AC24V ± 20%, 50 / 60Hz or optional DC24V ± 10% |
|
Storage temperature |
≤100W |
|
Maximum load |
-35 ℃ ～ + 65 ℃, 90% ± 5% |
|
Protection level |
-40 ℃ ~ + 70 ℃ |
|
size |
≤22Kg ≤35Kg |
|
Material |
IP66 |
|
Weight |
227mm × 260mm × 333mm (L * W * H) |
