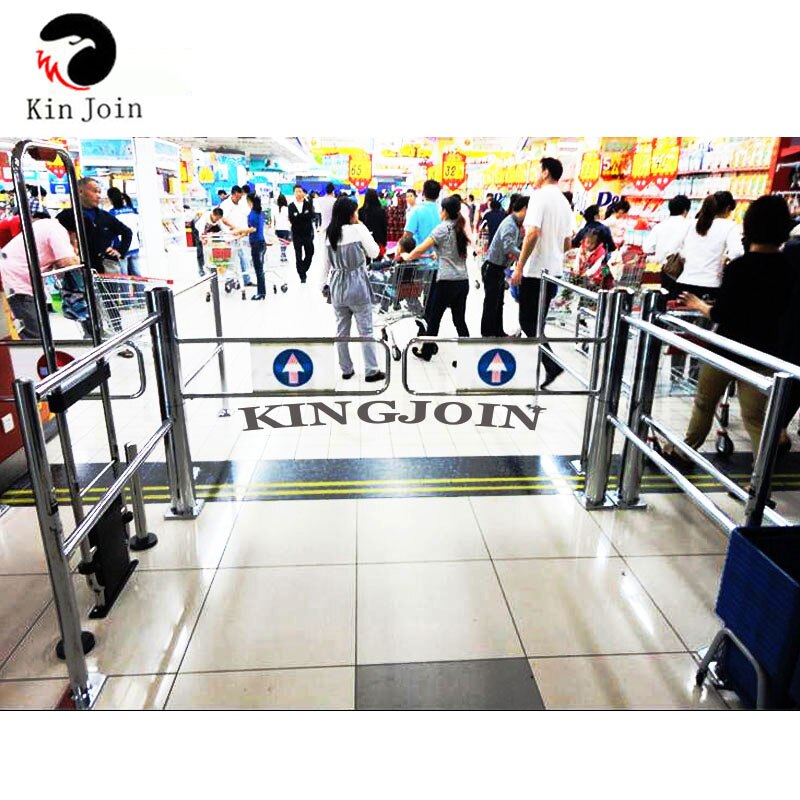

KINJOIN Dual Swing Barrier for access control Shopping mall supermarket channel use
Service
We provide high quality products and services,Our price is the best price, and we have cooperated with well-known international express delivery.Generally 5-10 days can be delivered, the shipping time by the sea needs to be confirmed by the seller.The product provides a 12-month warranty, in the case of non-human.The total price consists of the price of the product and the price of the shipping company. If you need to ship your own agent, please provide the address and communicate with the seller.
Technical parameters
1) Working voltage: AC220 ± 10% V, 50HZ
2) Power of motor: DC motor 100W/24V
3) Operating ambient temperature:-15°c – 70 °c
4) Relative humidity: ? 90% relative humidity, no condensation
5) The input interface: 12V level signal or pulse width and gt; 100ms 12V pulse signal drive current and gt; 10mA
6) Communication Interface: RS485 electrical standards,
7) The maximum channel width:1200mm
8) The gate opening and closing time: 2.5S
Features
1) Fault detection and alarm functions, user-friendly maintenance and use;
2) Has the power to automatically open calls and self-test and automatic recovery in the locked state
3) Has a variety of operating modes to choose from, you can two-way card reader, while reader in another direction the forbidden line, while reader, free passage of another direction, and the mode of operation of the gates through the motherboard menu set given.
4) When pedestrian Reading cartoon OK, infrared detection to pedestrians is completed automatically closing or pedestrian traffic after the delay the closing delay of 1-60 seconds to set the motherboard menu.
5) With automatic reset function. When a valid card is read, the passage of the passage is not within the stipulated time, the system will automatically cancel the passage by the access rights, and the passage time limit set by the management.
6) Has 485 remote control gate opening and closing features to meet the special needs of users and the fire safety requirements.
7) And scour protection, the gate signal is not received, the arm automatically locked;
8) Mechanical pinch function, Blockage in the process of arm reset,automatic bounce or in the motor within the specified time automatically stop working,and the intensity is very small, and at the same time an alarm signal;
9) With a unified, standard external electrical interface with a variety of read-write device is mounted, easy system integration, and through the remote management computer control and management.
10) Automatically to the prevailing direction of the prevailing number of statistics, and an intuitive LED (optional) presented to the managers, so that the knowledge of the passage number of managers in a direction.
11) Has a clear passage directions, instructions intuitive LED traffic to pass or closed to traffic.
12) Has a card reader with memory and without memory function, and users can set their own needs through the motherboard keyboard.
13) Through the software settings may limit the total number of sites within to meet the special needs of some special occasions.
14) The entire system is running smooth, low noise;
