Outdoor digital signage

  • Outdoor Readable in the sun
  • Iphone style Design
  • Support Infrared Multi Points Touch(2~10)
  • Available Size 32-84  Inch
  • LIfe license,user-friendly software
  • with CE ROHS FCC CCC



Lcd outdoor digital signage features



This model is  designed  for retail and advertisement market. It is available to be single or double screen display It is perfectly suited for airports, railway stations, shopping malls and other points of sale (such as bus stations), especially outdoor advertising.



In addition, there are a dozen of options for audience interaction: Infrared touch, touch Foil, webcam for audience gesture control, WiFi and 3G/4g. Thanks to these features and through the displays compatibility with social media and mobile devices, you can maximize your audience reach with unlimited flexibility and creativity.





 Model  number:

 AM4601OD

 Screen  size:

 46″ 47 55 65

 Display  ratio:

 16:9

 Resolution(Pixel):

 1920*1080

 View  angle  :

 178°/178°

 Luminance:

 1500cd/m2,2000cd/m2  ,  2500cd/m2  ,  2500cd/m2  ,  3000cd/m2

 3500cd/m2  ,4000cd/m2  ,5000cd/m2

 Contrast  ratio:

 4000:1

 Response  time  :

 6ms

 Display  area:

 1040*585  mm

 Touch  screen  optional

Capacitive  touch  screen  /  Infrared  touch  screen  /  Nano  touch  screen

 Operating  temperature:

 -40°C–+60°C

 Protection  Rating:

 IP65

 Storage  Temperature:

 0-50  degrees

 Humidity  :5%-100%

 Air  conditioner

 Voltage  Rated:AC110V/60Hz  OR  other

 Current  Rated:AC  6.5A

 Power  Rated:AC  500W

 Cooling  Capacity:1500W(L35  L35)

 Heating  Capacity:500W(optional)

 Ambient  Temperature:-20~55

 IP  Grade:IP65

 Radiator

 Working  Pressure:2bar-40bar

 Specification:  2Kw-400Kw

 AC  Input:

 110-240V,    50/60Hz

 Standalone  version

 RAM:8G    SD  play

 Android  version

 Quad  core  cortex  A8,  All  winner  A31  ,1.2GHz  1G  DDR3,  android  4.4.2  or  above.

 Windows  pc

 Quad-core  pc  /  i3  /  i5  /  i7  intel  core

 Color  option:

 Silver,  white,  black  or  optional

 Enclosure  material

 Zinc  coated  steel+front  tempered  glass

 Installation:

 Wall  mounting/roof  hanging/floor  standing

 I/O  interface:

 1*USB,1*  SD/MMC/MS  card  slot  ,
 HDMI/DVI/VGA  optional



skills requirement
3.1 Structural requirements
3.1 Overall performance requirements:

3.1.1: Waterproof system: The structure of the whole machine must meet the IP65 protection standard in IEC 60529. The cabinet is designed to have a waterproof groove around the door. The rainwater falls from the sides of the cabinet by its own gravity after entering the waterproof groove All the door edges are sealed with side card rubber strips, and the remaining seals are made with chloroprene rubber strips.

3.1.2: Dust-proof system: The structure of the whole machine must meet the IP65 protection standard in IEC 60529. Even fine dust cannot enter. All air vents are equipped with air filters or filters or dust screens to prevent dust from entering the cabinet.

3.1.3: Cooling system: The whole machine temperature control adopts precision cooling and heating air conditioning / precision fan cooling / heat exchanger

3.1.4: Lightning protection system: The whole machine and power supply have lightning protection measures, and a power supply surge protection module is configured.

3.1.5: Windproof: Under normal use, it should be able to withstand 12-level strong wind damage

3.1.6: Working external ambient temperature: Advertising machine is guaranteed to work normally at -40 ℃ ~ + 50 ℃

3.1.7: Humidity outside the working environment: 5% ~ 100% relative humidity

3.1.8: The safety performance and quality requirements of the electrical part of the facility comply with national standards, and the electrical system is equipped with a leakage protector and the system is grounded. (Structural components should have good electrical continuity, and non-conducting components should be connected by 4mm2 or more wires to ensure that the contact resistance of each conductive part is less than 0.1 ohm)

3.1.9: Noise requirements: According to the measurement standard of GB 22337-2008, measured at a location 1m outside the boundary of the noise emission source, above 1.2m in height, and at a distance of no less than 1m from any reflective surface, the maximum noise should meet the GB 3096-2008 standard The requirements for functional areas of category 1 acoustic environment. The noise is equivalent sound level, the measured value is sound pressure level, and the noise value is ≤55dB (A).

3.1.10: The whole machine is installed on the floor with vertical screen.



3.2 Main material selection of the whole machine:

3.2.1: The shell structure of the whole machine adopts 1.5mm thick SGCC galvanized steel sheet. For special components, 1.0mm or 2.0mm thick galvanized steel sheet can be selected while ensuring strength.

3.2.2: The glass adopts 3X3mm laminated glass, and the light transmittance of the glass part is and gt; 97%.



3.3 Technical standard of the whole machine:

3.3.1: The deviation of the dimensions of the whole machine casing and components is ± 2mm, and the angular deviation is ± 0.5 °.

3.3.2: There shall be no burrs, burrs or sharp structures in the cut sections of the plates, pipes and structural parts.

3.3.3: There is no missing or false welding in the welding part, the welding scar is smooth and polished, and there are no burrs or welding marks.

3.3.4: The inner and outer surfaces are coated with a protective coating. The coating is uniform and firm, free of bubbles, wrinkles, abrasions, peeling and obvious unevenness, sagging and repair of brush marks. No obvious color difference in the same batch of products

3.3.5: The thickness of the single-layer outdoor powder shall not exceed 200 μm, and the thickness of the powder sprayed with zinc-rich base + outdoor orange grain shall not exceed 250 μm.

3.3.6: Silk screen printing uses black ink screen printing, and the screen printing characters must be clear and free of burrs and other anomalies.

3.3.7: The stainless steel surface is smooth and clean, without obvious scratches, crushes, etc.



3.4 Overall design standards:

3.4.1: Refer to DK550FDA overall dimensions for the overall dimensions, and fine-tuning can be made according to the specific design.

3.4.2: All structural parts are sprayed with outdoor orange grain powder, and externally visible structural parts need to be sprayed with zinc-rich base powder + outdoor powder first, and the color of the outdoor powder is sandy gray.

3.4.3: Glass bead shall be sprayed with black outdoor powder.

3.4.4: The internal air duct of the whole machine is a single air duct. The cold air enters the lower part and the hot air exits the upper part (air-cooled type).

3.4.6: The whole machine adopts a front door opening structure, and the front door maintains internal electronic parts.

3.4.7: After the door is locked, it is close to the door frame, and the lock is installed firmly to prevent theft and theft. The inner and outer two-layer locking method is adopted. The outer layer lock uses a sleeve key to prevent the lock hole from being blocked. The inner layer lock uses a connecting rod structure lock.

3.4.8: The door can be opened flexibly, and the gap of the door gap is uniform. There is no friction between the door and the frame and the coating is not damaged. The maximum angle of the door when it is opened can reach 95 °.

3.4.9: The door seal is firmly bonded to the door

3.4.10: The front door needs to be installed with a gas spring.

3.4.11: The lock adopts outdoor anti-theft lock / hook lock. The structural design of the door lock is three levels of protection, and the screws are hidden, with no exposed removable screws.

3.4.12: The front glass of the whole display needs to be maintainable, and the glass can be wiped frequently.

3.4.13: Internal structures or components cannot be seen from the outside of the machine or glass

3.4.14: The stainless steel dustproof uses a 10-mesh wire mesh, the dustproof cotton uses an air inlet of 10 mm and an air outlet of 5 mm. The air outlet needs a filter cotton structure for the second dust protection.

3.4.18: AP antenna installation interface (hole) is reserved on the top of the device and waterproof

3.4.19: The reserved space inside the device is used to place a PC or industrial computer.

3.4.20: The external cable routing of the floor-standing model enters from the lower part of the base. It is necessary to open a wire hole on the bottom plate, the top of the base and the lower part of the main body. The cable hole of the back-mounted model needs to be opened on the back.

3.4.21: Lifting device: It is not allowed to lift the lifting device through the interior of the advertising machine. Lifting rings are usually installed at the top cover.

3.4.22: The whole machine is installed with M12X80 stainless steel pull-out bolts.

3.4.23: Use GB9074.4-88_M4X8-S /GB9074.4-88_M4X12-S as far as possible for the internal locking screws of the whole machine, so that the types of screws are as few as possible.

3.4.24: The whole machine should be easy to install, disassemble, inspect and maintain.



3.2 Electronics
3.2.1 Display 55-inch assembled screen, 2000nit, 310W power consumption.

3.2.2 Android A83T RAM: 2G ROM: 8G

3.2.3 AC part is configured with leakage switch, timer, contactor and other devices for control.

3.2.4 Configure a national standard cable with a length of 3 meters.

3.2.5 The wiring should be horizontal and vertical. Separate the strong and weak electric cables.

3.3 Cooling system
3.3.1 The whole machine adopts direct ventilation and heat dissipation.

3.3.2 The cooling fans use eight 120 * 38 speed-regulating fans and eight 120 * 38 speed-regulating fans.

Software description:

System functions

    The system adopts B / S architecture, without the need to install a client, you can open the IE browser to log in to the control background on any computer, and perform any operation management on all terminals.



Arbitrary split screen

When making a program, you can freely stretch and drag the video playback area and size, flash, ppt, marquee subtitle font, font size, character color, background color, support subtitles to scroll left, right, up, and down; the system comes with a digital calendar Clock module, weather forecast module, program template library, support self-designed templates; provide thumbnail function, what you see is what you get.



System compatible scalability

Supports almost all video formats (rm, rmvb, avi, mpeg, mpg, dat, mov, asf, mtv, mkv, wmv, 3gp, amv, dmv, divx, etc.) Audio (mp3, wma, wav, etc.) Pictures (jpg , Gif, png, etc.); word / excel documents, pdf documents, RSS real-time news, flash animation, dynamic web pages.



Picture effects playback

Adding pictures can set picture playing effects, such as shutters, progressive effects and other special effects.



Live streaming

Support live streaming media live broadcast, network video live broadcast, local DVD video live broadcast, video conference and other streaming media live broadcast.



Play schedule management

The plan management function can schedule all the programs to be sent in advance, which can be the normal plan, interruption plan, and periodic plan. Make all the programs into a schedule form, and then you only need to send the schedule to the terminal. You can easily modify the existing schedule and replace or delete the programs in the schedule.



Remote control terminal

   It can be started or shut down and restarted remotely through management software. You can remotely synchronize the time of the terminal player and the server through the control software, without setting the time manually. The volume of the terminal player can be set remotely through the control software.



Remote real-time monitoring

   It can remotely monitor the terminal’s network connection status in real time and monitor the dynamic playback screen being played, which is convenient for user management, without having to go to the display terminal to check the effect of the operation.



Timer switch

The system can set the terminal to be turned on and off every day or every week, and can be set to turn on and off multiple times, which not only makes it easier to manage the terminal, but also does not need to manually turn on and off to increase work efficiency and reduce unnecessary night-time power consumption. waste.



User management permissions

Different permissions can be set for each user, and the user can be assigned a management terminal so that he has management rights for this terminal.



Terminal grouping

You can customize different publishing groups based on the geographic location or business type of the publishing point in the actual application. Direct instructions can be issued to this group when managing or distributing programs, making user management easier and more efficient with a larger number of display terminals.



Program review

   The program review function is used in multi-level user rights.The upper-level user reviews the programs produced by the lower-level users. As long as the programs produced by the lower-level users have not been reviewed by the higher-level users, the lower-level users cannot publish this program to the terminal.



Stand-alone playback

Supports importing the produced programs directly into the memory card for playback under network abnormalities. You only need to place the exported programs in a removable storage such as a USB flash drive, put the USB flash drive in and out of the player, and the player will automatically copy from the USB flash drive. You can play the imported programs and play the USB disk after importing.



http

When downloading a program, after the network is disconnected and reconnected, the program is automatically downloaded from the state when it was disconnected, and will not be completely downloaded again.



Log management

The powerful log record function can record whether the program instructions sent by each user have been successfully executed. The system provides log records, and the management staff can directly browse and query the system log to export as an excel file.



Function extension

 The development of radio frequency identification (RFID) Internet of Things, QR code, camera (video call, face recognition), virtual display, touch printing and other advertising machine perception experience development has become the clear direction of industry development.

Software Function

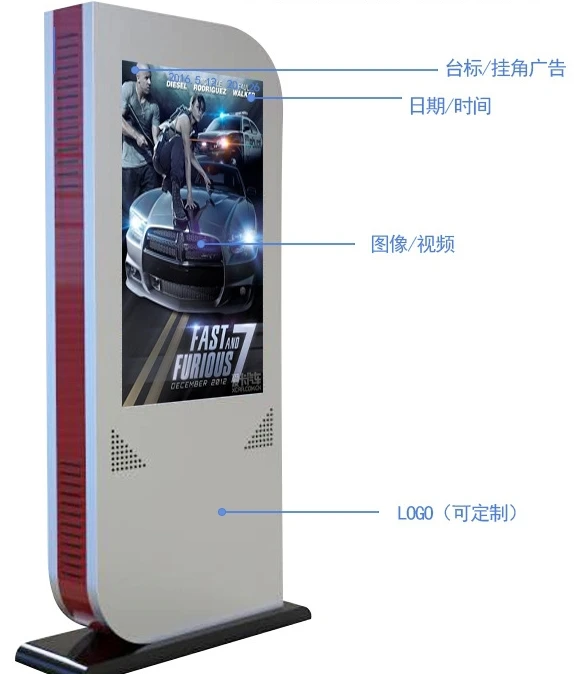

User-Defined Layout

  • User can design different layouts according to different content;
  • Take the layout template or design layout;
  • It supports backround image and music;
  • Time zone can display current time and date;
  • Weather zone display weather type, time, text and logo in 24 hours/48 hours/72 hours;
  • Image zone can be set as static image or select various kinds of image switch effect, including scrolling, cut-in, gird effect, etc;
  • Message zone can be set as static or scrolling text, supports news and RSS;
  • Display logo on the specific location on screen, and logo can overlay other image;
  • There are mutltiple ways to display scrolling message;
  • Set one zone as main playback zone, and the program will end at the end of this zone;
  • According to program, it can set layout size, including landscape and portrait mode.

Playback Content

  • Playback content includes video, image, audio, message, sustitle, time, date, weather, news, etc;
  • Video formats include WMV, MPG2/4, RMVB, DAT, VOB, XVID, DIVX, AVI, TS, H.263/H.264, MOV, FLV, etc in 1080P decode;
  • Image formats include almost all of image formats, such as BMP, JPG, GIF, PNG, etc;
  • Message can set font, size, color, and background color or transparant background;
  • Time and date in Chinese, English and other formats, it sync with server and is accurated by minute;

Content Management

  • Content can be managed and classified by category;
  • Category type is similar to Windows explorer;
  • Create/delete/rename a category on server;
  • Upload content to a category according to different classifications;
  • Upload different content from local hard disk or network folder;
  • Support continuous upload from breakpoint;
  • Set download time of player content to avoid busy hour and keep system stability;

Program and Compaign

  • Contain Idel-Loop campaign, On-Demand campaign and Inter-Cut campaign;
  • Play or pause a program if you want and the pause program will not be deleted from player;
  • The priority of campaign: Inter-Cut campaign and gt;On-Demand campaign and gt;Idle-Loop campaign;
  • The Idle-Loop campaign can be repeated every several days, for example the reperated days are a week, and it will display different programs everyday;
  • Inter-Cut time, end time, playback counts of Inter-Cut campaign are optional;
  • On-Demand campaign is triggered by hardware or software command, and displays one or several programs as the set count;

Group Management

  • User management players by group according to the details, for example location, network, commercial, player model, etc;
  • According to setting player group and campaigning programs, it can satisfy various complcated requirements of clients;
  • Grouping is in tree-directory structur, allows multilevel group, easy to manage and understand;
  • Without specific command, all of settings and content of players are same in the same group, such as playback content, hardware configurations, download time, etc;
  • User can send specific configuration to one or several player in the same group according to the details.

Security

  • Strict audit system to manage playback content and avoid mistake;
  • According to manage content in details, such as preview uploaded content and audit them, approve/refuse current campaign, user can manage player;
  • Manage the access level of users by defining the users’roles;
  • Admin can set up users, and select roles to different user;
  • User login server through IP address via web browser, input user name and passwor and then manage the system;
  • Default user name and password are availble.

Player Configuration

  • Get rid of manual work and increase player life cycle through setting power on/off time; Select network connection way and set network configuration, set DHCP/Static IP address, WiFi authentication/encryption method, 3G account, etc;
  • Set video output and resolution, such as CVBS, VGA, HDMI, YpbPr, 1080P, 720P, 480P, etc;
  • Adjust volume at different time;
  • Upgrade firmware through requirements.

Playback Monitoring

  • Playback monitoring function make user learn the current and history situation of player without going to installation place;
  • When there is something wrong with the player or network of player, it will inform the related administrator to let them know well about system;
  • Remote check player network status, including on/offline status and recent hearbeat time, etc;
  • Check the history hearbeat time of some player;
  • Check system log, such as power on time, download start/end time, etc;
  • Get player online rate directly;
  • Auto alarm when player has been offline for a long time, or improper power on/off, etc;
  • Check palyback status by taking screenshot.

Statistics

  • Statistics function make users get the plaback information and offer reliable data to study system;
  • Check the playback list during certain time and in some group, including playback counts,playback start/off time, etc;
  • System will get the playback counts and time of some file automatically;
  • Check statistics by player name and file name;
  • Get player availability ratio, means that how much percent normal working time of a player of a group player take in gross time during certain time.

Live News

  • Player realizes to display real-time message through the interface connection with server;
  • Switch real-time content from server;
  • Convert real-time message to form, image and other stypes to increase message arrival rate, more advanced than traditional mode.

Touch Support

  • Set touch zone and area
  • Set touch action





Application Cases

LCD outdoor digital signage can be used in below fields:

1)  Public Places:  Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2)  Entertainment Places:  Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3)  Financial Institution:  Bank, Security/ Fund/ Insurance company, etc.

4)  Business Organizations:  Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist’s shop, etc.

5)  Public Service:  Hospital, School, Telecom, Post office, etc.

6)  Real Estate and amp;Property:  Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.

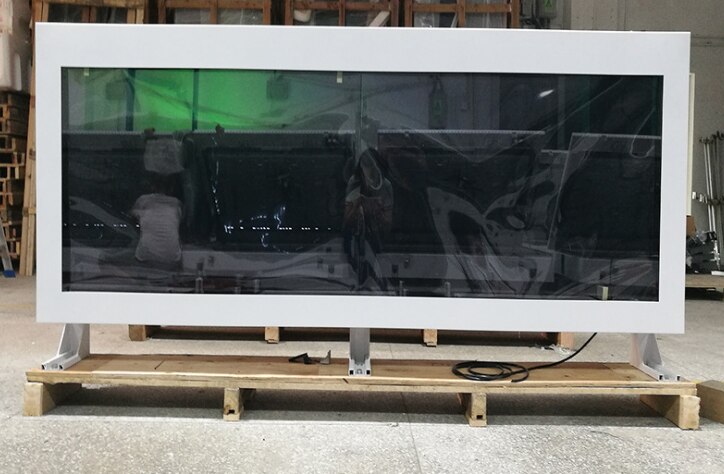

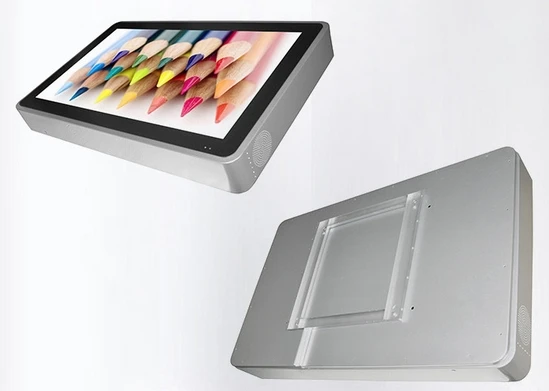

Ip65 wall mounted 2000cd waterproof digital signage Multimedia advertising player 65 inch with pc buit in screen monitor
