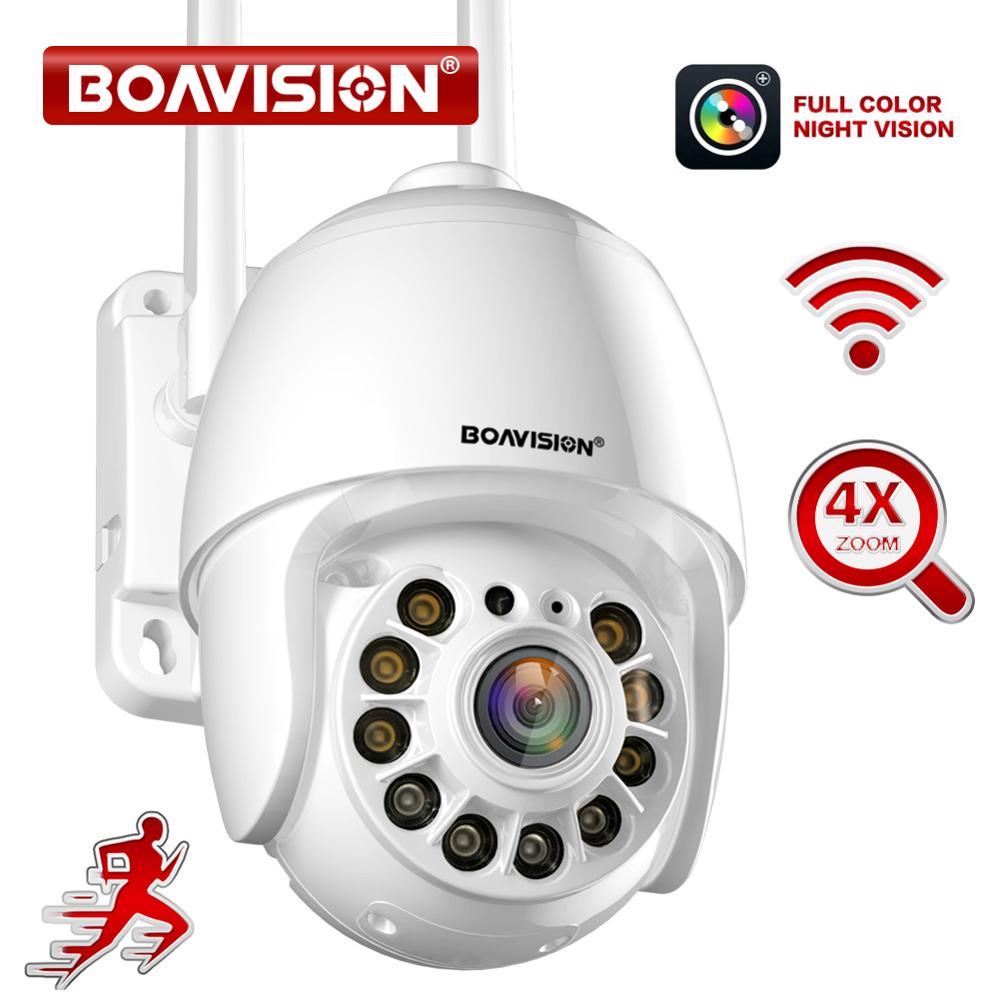

2 Inch HD 1080P MINI WIFI PTZ IP Camera
CCTV Security Surveillance IP Camera Onvif Outdoor Waterproof IR 30M Two Way Audio Motion Tracking P2P CamHipro
Pan Tilt Rotation
Horizontal: 355 Degree and amp; Vertical: 90 Degree
4X Digital Zoom (APP: CamHipro)
Three Night vision modes
6Pcs Spot White light LED+4 Array IR LEDs, 30m B and amp;W Night Vision,20M Color Night vision
Motion-Tracking and amp;Alerts
If you turned on the Intelligent Tracking function,When the moving objects enter into the monitor area, camera will adjust the pan/tilt rotation automatically , Auto Track the moving Objects . It also can push alerts via email or notifications to your smartphones (iOS, Android) when you enable the alarm function .
Floodlight and amp;Alarm Siren
The floodlight can be set to turn on when the moving objects detected in the darkness,you can also set sound alarm to make loud siren when the moving object is detected. The built-in advanced microphone and amp; speaker allows you scare away uninvited guests,send commands to your pets, say hello to welcome guests.
Third Party Software Support
This camera allows you to connect most famous onvif NVR , NAS and Third Party software, like Blue iris, ispy, Synology, QNAP, 2K/4K onvif NVR, etc
Two Way Audio Talk Back
Built-In Microphone and speaker, Support Two Way Audio Talk Back
Motion Detection and amp; Alarm Linkage
Can Set 4 Independent Detection Region (1-100 Sensitivity Can Be Set)Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And VideosTo The FTP Server, Alarm Write Pictures And Videos To Micro SD Card, Alarm Message Push
P2P Remote control ,Everywhere and amp; Everytime
Provide Android and amp; IOS APP (CamHipro) And Professional CMS PC Client Software
Support TF / Micro SD Card
Up To 128GB ( TF Card is optional choose ) . Convenient to watch the video playback on Phone or PC anytime .
Two Connection Method ( Wire and amp; Wireless )
Do not need network wire . If you want to connect the network wire , it also support . Flexibility to choose the connection method that suits you
Waterproof IP65
ABS Plastic Housing Material, Outdoor and amp; indoor Use, suit for any weather condition . -4~140°F
Usage Scenarios
Can Be Used In A Variety Of Environments, Whether It Is Rain Or Dust Can Be Effectively Isolated
2 Inch Super Mini Size
3.6mm Fixed Lens ( 4X Digital Zoom)
Packing List

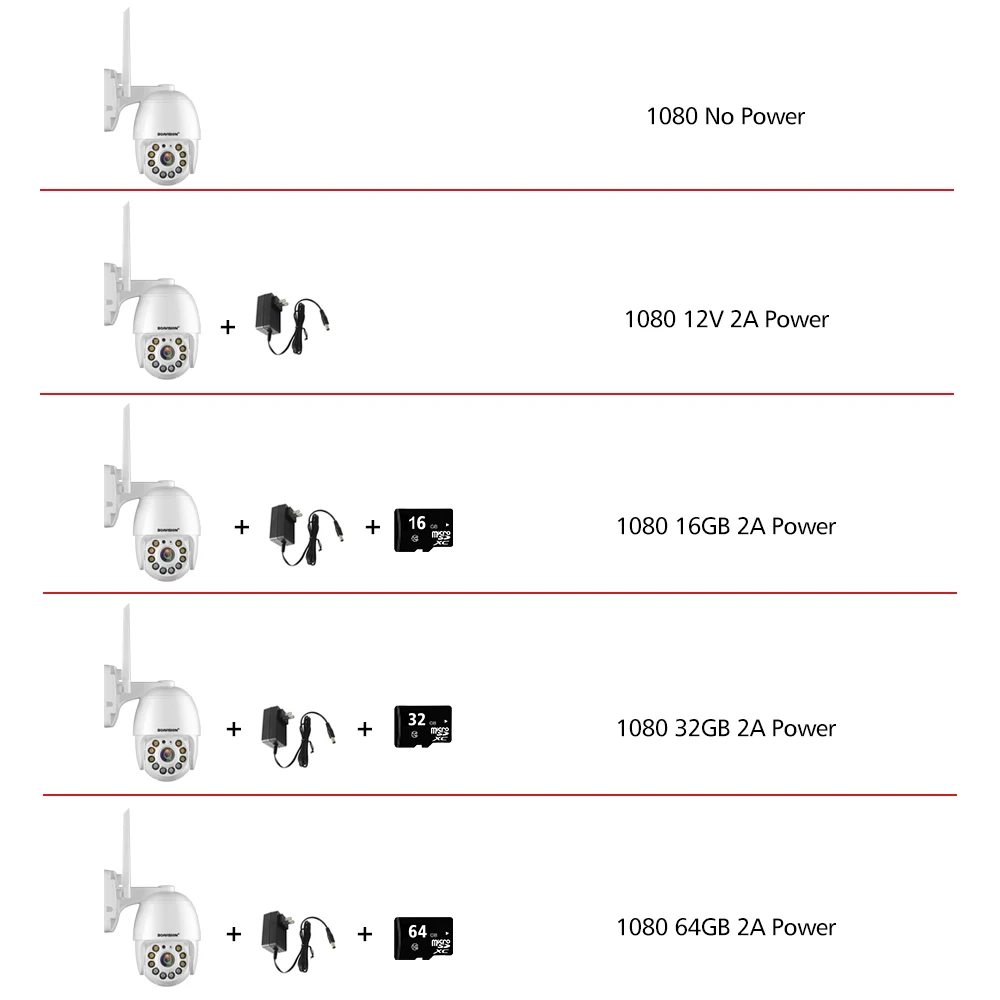

Specification selection
Features :
2 Inch Auto Tracking Super Mini Size PTZ Dome WIFI IP Camera
3.6mm Fixed Lens (4X Digital zoom )
Support HD 1080P High Quality Resolution
Support TF/Micro SD Card, up to 128G(TF Card Optional Choose)
Pan Tilt Rotation, Horizontal:355° and amp; Vertical:90°Ø
6pcs Spotlight LED+4Pcs Array Infrared LEDs,30m B/W Night Vision/20M Color Night vision
Support P2P, View and amp; Anywhere and amp; Anytime
Provide Android and amp; IOS APP (CamHi) and professional CMS PC client software
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
ABS PlasticHousing Material,Outdoor Use,Waterproof IP65
Built-in Microphone,LoudSpeaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters,LoudSpeaker Effective Range 60 Meters
The SD Card Slot Is Designed On The Camera’s Back Cover
Very Easy to Install the TF/Micro SD Card .(TF Card Optional Choose)
Specifications:
|
Model |
HX-HD22M102M |
|
|
Camera |
Operating system |
Embedded Linux OS |
|
Megapixel |
1920*1080 |
|
|
Lens interface type |
M12 |
|
|
Lens |
3.6mm Fixed Lens(4X Digital zoom ) |
|
|
View angle |
75deg |
|
|
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
|
|
Day and amp;Night mode |
Auto IR-CUT |
|
|
Night vision distance |
6pcs Spotlight LED(20M)+4PcsArrayInfrared LEDs(30M) |
|
|
Video |
Video compression standard |
H.264 Main Profile/H.264 Baseline |
|
Video streaming |
Dual streaming |
|
|
Video resolution |
First stream: 1080P(1920×1080), 720P(1280×720) |
|
|
Second stream: Q720P(640×480/640×352), QQ720P(320×240/320×176) |
||
|
JPEG stream :(Monitoring for mobile phones), Q720P(640×352), QQ720P(320×176) |
||
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
12fps(PAL 50HZ). 12fps(NTSC 60HZ) |
|
|
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
|
|
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
|
|
Audio |
Audio compression standard |
G.726/G.711 |
|
Audio code rate |
Rate adaptive |
|
|
Audio Input |
Support, Built-in Microphone |
|
|
Audio Output |
Support Two Way Audio Talk , Built-in Loud Speaker |
|
|
Function |
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm message push |
|
|
Privacy mask |
Maximum support 4 users to simultaneously browse |
|
|
OSD |
Support camera name, date and time information superimposed |
|
|
User management |
Supports user and rights management |
|
|
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
|
|
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. |
|
|
Connection protocol |
Support ONVIF 2.1(backward compatible) |
|
|
Wireless |
Wireless standards |
IEEE802.11b. 802.11g. 802.11n Draft |
|
Frequency range |
2.4 GHz to 2.4835 GHz |
|
|
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
|
|
Transmission rate |
11b: 11Mbps,11g :54Mbps,11n :135Mbps |
|
|
PTZ |
Rotation angle |
Horizon:0° to 355°. Vertical: 0° to 90° |
|
Horizontal speed |
1° to 40°/S |
|
|
Vertical speed |
1° to 20°/S |
|
|
Preset |
N/A |
|
|
Interface |
Power interface |
1*5.5mm power interface |
|
Ethernet |
1*RJ45 and amp; Antenna 10M/100M Adaptive Ethernet Interface |
|
|
TF card Slot |
1*TF card slot. up to 128G(Don’t included TF Card) |
|
|
Reset button |
Support |
|
|
General |
Power supply |
DC 12V 2A |
|
power |
Day: 3W; Night: 12W |
|
|
Operating temperature |
-20 to +60 degree |
|
|
Operating humidity |
10% to 95% |
|
|
Material |
ABS Plastic Housing ,Outdoor Use,Waterproof IP65 |
|
|
Installation |
Rack mounting |
|
|

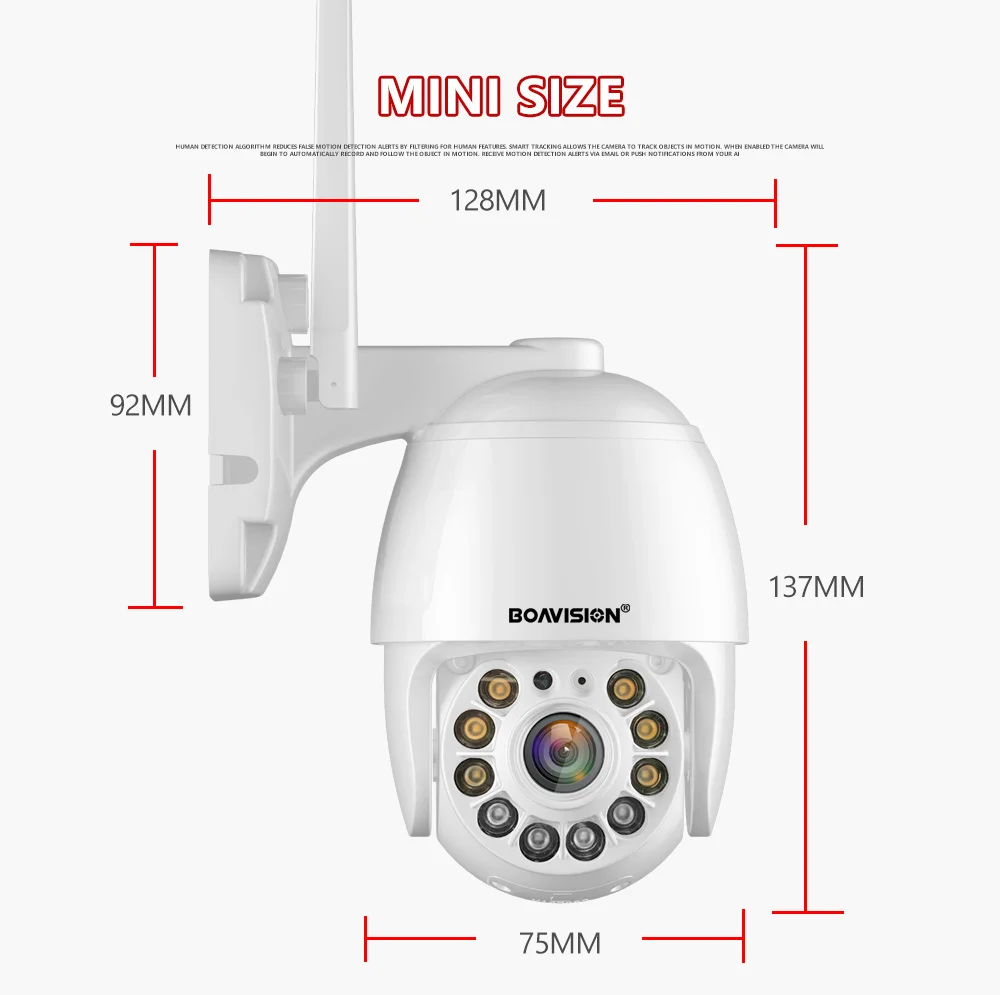

Size(W×D×H)(mm) |
137x128x92mm |
|
|
Weight(kg) |
0.65kg |
|

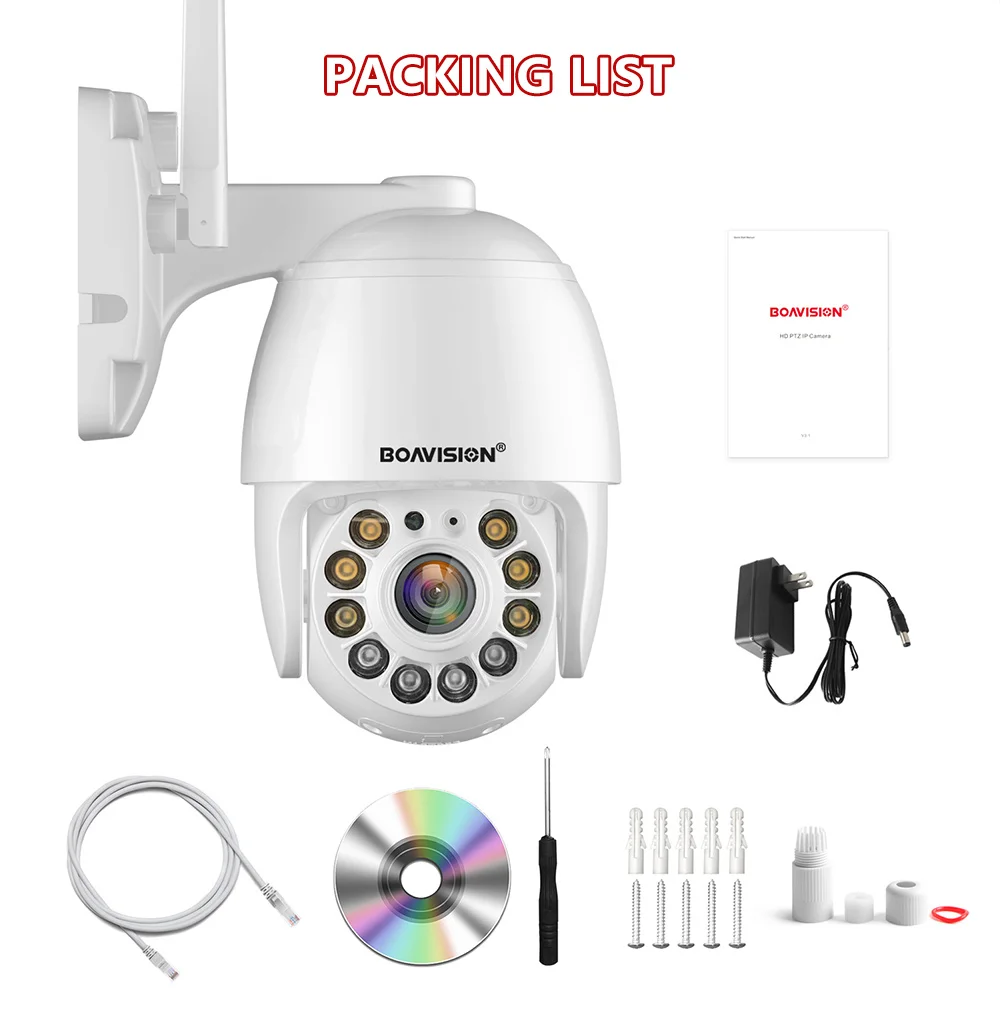

Packing List:
1*Auto Tracking WIFI PTZ IP Camera Built-in Microphone,Loud Speaker(TF CardOptional Choose)
1*DC 12V 2APower Supply(Optional Choose)
1*CD and amp; Manual
1*Screws Bag
2*Antenna
1*Network Cable
