HSOTLTH51084 dual-spectral thermal imaging PTZ camera, horizontal 360-degree vertical ± 90-degree rotation, built-in 20X 4 milli

HSOTLTH51084 dual-spectral thermal imaging PTZ camera, horizontal 360-degree vertical ± 90-degree rotation, built-in 20X 4 milli

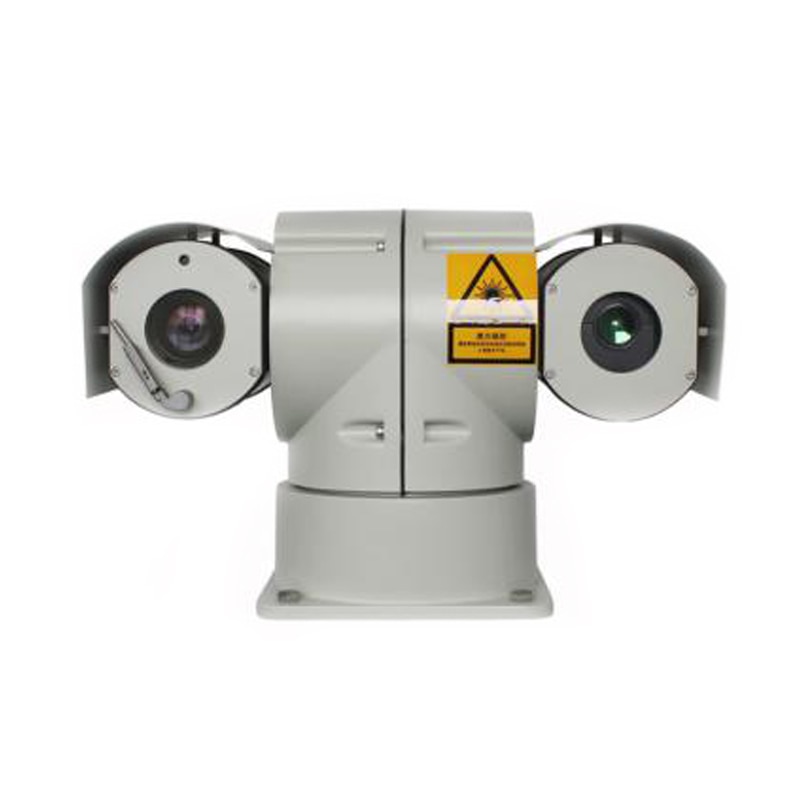

█ Product Image

█ Functional characteristics

1、Aluminum alloy structure design, waterproof grade IP662、Continuous 360 ° horizontal rotation, ± 90 ° vertical, automatic flip3、Optional 384 * 288 or 640 * 480 thermal imager movement integration4、Support ONVIF, GB28181 protocol, can provide SDK for easy integration5、Anti-fog: use heating glass to heat directly, remove mist in about 5 minutes6、Horizontal manual speed up to 160 ° / S, vertical manual speed up to 55 ° / S7、preset positions: 255, horizontal speed up to 160 ° / S, vertical speed up to 80 ° / S8、Support cold start at -35 ℃, can be used in severe cold areas: anti-freeze, dust-proof9、Isolated power supply design, high stability, vehicle power supply voltage input range: DC9V ~ DC36V10、Strong anti-electromagnetic interference ability, suitable for complex environments such as the power industry11、Brake motor is used to support the self-locking of the gimbal to enhance the wind resistance level of the gimbal12、The upper and lower structure design of the camera and infrared cylinder makes it faster for customers to install the camera by themselves

█ Application scenario

1、Safe city2、Outdoor sports3、Mobile vehicle control4、Distance education / medical5、Community / park monitoring6、110 law enforcement vehicles7、Highway mobile law enforcement8、Wedding recording and broadcasting9、Urban management law enforcement10、Road administration law enforcement vehicles

█ Product Size(mm)

█ Specifications

Model

JSA-8HSOTLTH51084

Camera

Image Sensor

1/2.8″ Progressive Scan CMOS

Maximum pixel

4  million pixels

Effective Pixels

2592(H)×1520(V)

Lens multiple

20x optical, 16x digital

Wide dynamic

100dB

Lens

5.4-108mm

Min. Lux

Color:0.01Lux;black/white:0.001Lux

Automatic control

5A:Auto white balance, focus, exposure, noise reduction, contrast enhancement

Signal to noise ratio

≥50db

Electronic shutter

1/32000s – 1/7.5s

Features

Thermal Imager

Standard with 384 * 288 / 19mm lens; optional 640 * 480 and other specifications of the lens; or optional temperature measurement model [temperature range -20 ° ~ 150 °, up to 1600 °]; temperature measurement accuracy and use The environment is related to the distance, the target distance is within 15m, and the temperature measurement accuracy is ± 2 °

Network protocol

Onvif, IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ARP, optional RTMP

Video compression

H.265/ H.264

Multi-stream

FullHD +FULL D1

Bit rate mode

VBR/CBR

data storage

Automatic / manual recording, support TF card

Mechanical behavior

Rotation angle

360°

Horizontal speed

0-160°/S;

Vertical range

-90°~ 90°

Vertical speed

0-55°/S

Preset

255

Track cruise

8 patrol tracks

Scanning / self-learning

8

Positioning / planning / watching

Support

Power failure recovery

Support

Rotation angle

Support

Intelligent image stabilization

Effectively solve the problem of vehicle image shake

Smart tracking

Intelligent optional / supports automatic tracking

interface

RS  – 485

Support PELCO-P / D

Analog video

1.0V [p-p] / 75Ω, PAL or NTSC, BNC interface

Network

10 / 100M network adaptive, RJ45 interface

specificatio

temperature humidity

-35 – 70℃ / 0~90%(Non-condensing)

Power supply

Wide power input DC9V-DC36V (optional AC24V) / ≤50W

Protection class

IP66

size

Φ380×300mm

Weight

8kg



█ Application scenario

█ Application topology

█ Thermal imaging monitoring distance reference value correspondence table

█ Camera monitoring distance reference value correspondence table

Found the target [person, 1.7m], accounting for one-twentieth of the screen

Focal length [mm]

CCD height [mm]

Human height [m]

Identify other people’s faces [m] 1/4

Distinguish between men and women [m] 1/10

Discovery target [m]1/20

300

4.8

1.7

425

1063

2125

500

4.8

1.7

708

1771

3542

600

4.8

1.7

850

2125

4250

750

4.8

1.7

1063

2656

5313

1000

4.8

1.7

1417

3542

7083

1500

4.8

1.7

2125

5313

10625

Found the target [car, 2.3m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Car length [m]

Identify                  the model [m]

Resolution size [m]

Discovery target [m]1/20

300

6.4

2.3

431

1078

2156

500

6.4

2.3

719

1797

3594

600

6.4

2.3

863

2156

4313

750

6.4

2.3

1078

2695

5391

1000

6.4

2.3

1438

3594

7188

1500

6.4

2.3

2156

5391

10781

Found a fire [fire point, 2.5m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Mountain        width [m]

2.5*2.5 fire point [m]

10*10 fire point [m]

50*50 fire point [m]

300

6.4

200

3516

14063

70313

500

6.4

200

5859

23438

117188

600

6.4

200

7031

28125

140625

750

6.4

200

8789

35156

175781

1000

6.4

200

11719

46875

234375

1500

6.4

200

17578

70313

351563





Attached C-Jiesan Company’s main product line list

█ Main application product line application scenarios

With 15 years[2005~2020] of accumulated precipitation

HSOTLTH51084 dual-spectral thermal imaging PTZ camera, horizontal 360-degree vertical ± 90-degree rotation, built-in 20X 4 milli
