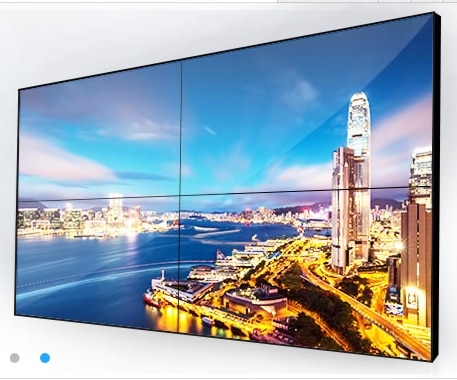

Gap 6.7mm bezel 55 inch Cabinet floor standing LCD Splicing Video Wall 2×2 video wall with hdmi 2×2 LCD Video Wall

Panel Size 55inch SAMSUNG DID Panel
Out Size                                 (L*H*T )(mm) 1025.7*579.6
View Area                                   (L*H) (mm) 1018.4*572.6
Resolution 1920*1080
Contrast Ratio 4000:1
Brightness 700cd/m2
After combine Width 5.3mm
Power 180W
ResponseTime 8ms
Colour 16.7M
Splice Quantity Mx(Row)xN(Line) pcs
Installation wall mount(Floorstand are optional)
Veiwing Angle 178°/178°(H/V)
Operate   Tem/Hum 0°C-60°C/10%-90%( No condensation)
Input Signal RGB,HDMI,YPbPra,Video1,Video2,Audio I/O signal
Display Quality

Embedded results design,Roaming stack,windowing function,3D Comb filter,

3D noise reduction,HD,Progressive-Scan,10-bit TFT Panel Drive,PIP,

WCG-CCFL bright and colourful backlight





Features



1,Narrow gap between screens
2, Use special industrial Panel-Sammeng DID Panel-Long lifetime, high realibility
3,No need separate controller to splice the screens, splice any screens to display one picture or video by a software system
4,Support multi-zone screen,the screen can be divided into many display areas which can play different content respectively;
5.Support video, audio, images and text playing function,Compatible file format:avi,mpg/mpeg,vob,dat,mpeg1,mpeg2 or divx,mp3,24 bites bmp,jpeg, general txt file;
6, support text\photo rolling display;
7,support Annual Calendar;
8,Support file name revision, move, delete, set up index function;
9,Support background music function;
10, support advertising content insert function at a setted time;
11,Support template display as your design ;
12,Support STB monitor system function;
13,Support FTP download monitor system function;
14,Provide a control software system with Chinese-English languages swift;
15,Support software upgrading online;
16,Built-In 1G CF Card ,We must supply your our CF card because we will install all drives in it, you’d better not change the CF Card, you can choose CF Capacity up to 16G .




Ultra Narrow Bezel Optional:8mm, 5.3mm, 3.5mm
The OverView series comprises 46″ and 55″ LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.

In the field of large-screen mosaic, traditional DLP big screen has gradually lost
competitiveness because of the high maintenance costs and it does not fit to display
the high-definition dynamic images. Large-screen LCD video wall began to widely
used in the industry because of the advantage of its excellent high-tech display,
low power consumption, cheap and convenient maintenance.







Applications

LCD Video Wall Displays

The  AutoMedium LCD video wall is an excellent solution for both large and small control rooms, especially where space is limited. It’s an easy to operate, self-contained LCD video wall display for network monitoring, emergency operations, process control, security monitoring and military applications. This economical video wall employs either “thin bezel”, or the latest “ultra-thin bezel” commercial LCD displays with LED back lighting. This LCD video wall display is expandable to grow as your requirements grow. Select from four high-definition screen sizes. Combine this LCD video wall with matching control room furniture manufactured to your specifications.



How the Auto Medium LCD Video Wall Works

The  AutoMedium LCD video wall display offers the most advanced screen management tools available. Easily assign an individual image to fill each screen, assign multiple images to each screen, or enlarge an image across the entire screen matrix, or part of the screen matrix. Build the LCD video wall display with as many screens as space allows. Ultra-thin bezels are the least distracting when enlarging images across multiple displays, however if you don’t plan to enlarge images, the less expensive thin bezel models may be the best choice.

AutoMedium 2×2 LCD Videowall AutoMedium  2×2 LCD Videowall AutoMedium  2×3 LCD Videowal
The  AutoMedium LCD video wall cabinetry is uniquely designed to provide easy equipment access while shifting the weight of the displays from the wall to the floor. Although the cabinetry is attached to the wall, it rests on the floor. This is of critical importance because the walls of most commercial buildings are not constructed to support the weight of multiple large displays. This is an obvious safety concern, especially in earthquake zones. The base cabinet is the conduit for cabling and the storage space for racked electronics. The cabinetry is modular, expandable and easy to relocate.
AutoMedium video walls with commercial grade LCD panels and high-definition signal processing combine to form a powerful monitoring tool that’s easy to learn and simple to operate.


1.High-definition direct view LCD panels with video processor (controller) and optional sound settings.

2.Windows software with wireless keyboard and mouse operation; touch panel control optional.

3.Simultaneously display internet, network applications, individual computers, cameras and TV sources.

4.Size and move images across the entire video wall matrix with the click of a mouse.

5.Image processing compensates for bezels; no information is lost.

6.Modular, expandable and customized to ceiling height and wall space.

7.Installation and training completed in one day in most cases.

2×3 Matrix with Multiple Images 2×2 Matrix with Enlarged Image 2×2 Matrix with Enlarged Image

More About LCD Video Wall Technology

 LCD video walls  are basically comprised of commercial grade flat panels placed edge-to-edge with a video processor. This high-definition LCD video wall display system with LED  back-lighting  is mounted on the wall using a steel apparatus that ensures adequate alignment, or is installed in a specially designed freestanding cabinet like our Visionmaster video walls. You can expect the depth of installed displays to be between nine and twelve inches depending on method of mounting and screen size. LCD panels designed for videowalls have improved significantly in recent years making them the preferred choice for small spaces and limited budgets, however they don’t last forever and will eventually have to be replaced. LCD panels are getting larger, slimmer, lighter, and are now available with thin enough bezels (frames) to make them a solid alternative to projection cubes for video walls. However, LCD panel manufacturers are changing their product lines frequently, so when yours eventually fail, you want a manufacturer that can replace it with an identical model years after purchase.


 Package for shipping

  Ways of delivery options
