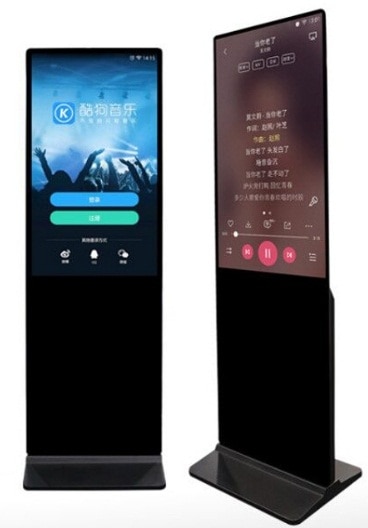

32 42 43 47 49 50 inch Floor standing kiosk 3cm ultra thin advertising player LCD touch screen digital signage Advertising Screen
Floor standing kiosk touch 3cm ultrathin advertising player 43 inch LCD touch screen digital signage
Support OEM/ODM,43/50/55 inch Screen can support,Stand-alone / Android / windows version optional
black, gold, silver(optional)
black, gold, silver(optional)
Features description
| Screen configuration | Motherboard configuration |
| Screen size: 43 “ Resolution: 1920 (RGB) × 1080 [FHD] Display size: 941.184 × 529.416 mm (H × V) Visual size: 945.18 × 533.42 mm (H × V) Brightness (cd / m2): 400 (Typ.) Best angle: full view Viewing angle: 89/89/89/89 (Min.) (CR≥10) Point distance: 0.227mm (H) x 0.227mm (W) Number of colors: 16.7M / 1.07B, 95% [CIE1931] Screen Weight: 6.30Kgs (Typ./Max.) Refresh frequency: 60Hz Signal system: LVDS (2 ch, 10-bit), terminal, 51 pins Supply voltage: 12.0V (Typ.) Maximum rated: Storage temperature: -20 ~ 60 ° C Operating temperature: 0 ~ 50 ° C Screen type: LCD module, a-Si TFT-LCD. Pixel configuration: RGB vertical bar Appearance size: 975.5 × 582.2 × 10.5 (H × V × D) Surface treatment: matte (Haze 3%), Hard coating (1H) Contrast: 1100: 1 (Typ.) [Transmission] Optical mode: IPS, often black display, transmission type Response speed: 6 (Typ.) (G to G) ms Backlight type: WLED, 30K hours, no drive |
CPU: RK3188, quad-core, frequency 1.6GHz Memory: 1 / 2G (optional) Built-in memory: EMMC FLASH 8G (optional) Built-in ROM: 2KB EEPROM Decoding resolution: up to 1080P Operating system: Android 4.4 above Play mode: support for the cycle, timing, spots and other playback modes Network support: 3G, Ethernet, WiFi support, wireless peripherals expansion Video playback: support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on Picture format: support BMP, JPEG, PNG, GIF USB2.0 interface: 3 USB HOST, 3 USB socket Serial port: 3 serial socket TVIn: CVBS input 2, support N, P standard GPS: built-in GPS (optional) WIFI, BT: built-in WIFI, BT (optional) Ethernet: 1, 10M / 100M adaptive Ethernet Timing switch machine: support |
| Infrared touch | |
|
Material: tempered glass Glass thickness: 3mm, 4mm, 6mm |
|
| Touch the parameter | Electrical parameters |
|
The number of times the theory is determined by the degree of glass wear
|
Working voltage: 4.5 ~ 5.5Vdc Working current: ≤120mA Power: ≤ 900mW |
