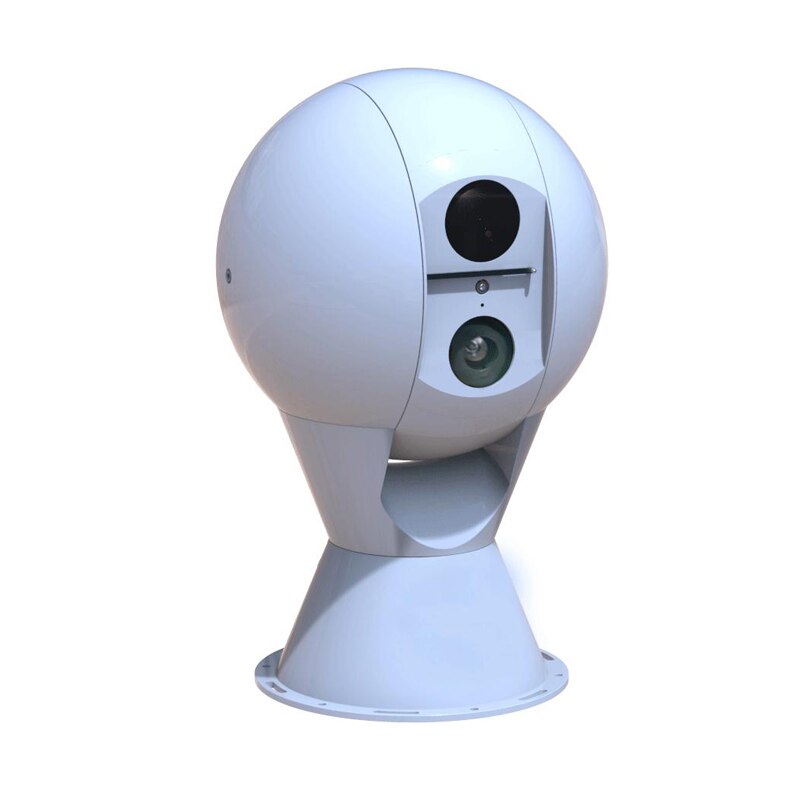

The JSA-8TSOAX500 series wind-resistant ball-type turntable system is a remote day and night monitoring product developed by our company for border monitoring, coastal defense monitoring, shipboard monitoring, forest fire prevention, Haihe waterway, water conservancy projects and other projects. Positioning, anti-strong wind, anti-seawater corrosion performance; used in harsh environments, the image can maintain high-definition stability, no jitter; low maintenance, long service life. The JSA-8TSOAX500 series system integrates the leading opto-electromechanical technologies in multiple industries, integrates precision heavy-duty power system, infrared thermal imaging technology, infrared fogging imaging technology, sealing and metal anti-corrosion technology, designed for special applications. JSA-8TSOAX500 series products have a near-global appearance, thick structure, and very good wind resistance. No matter in the windy environment or in the process of movement, the image can always be stable, without jitter and no jamming, and the image does not shake or shake when starting and braking. In addition, the imaging system is embedded with optical and electronic 3-level fog-passing functions, which can reasonably select the fog-passing level according to the severity of the fog and haze weather. The whole machine is made of high-strength aluminum alloy material, designed according to IP66 protection grade, multiple protection measures such as lightning and surge, intelligent temperature control system and strong heat dissipation channel. It is almost maintenance-free under normal outdoor conditions and is very suitable for long-term low Real-time monitoring of slow and small targets.

█ Features

1、 Resistant to hurricanes, the image can be kept stable in a 40m / s hurricane;2、 surge protection and anti-lightning protection, effective anti-radar 6KV / 3KA;3、large-size high-definition visible light image sensor, star-level imaging sensitivity;4、energy-saving design, suitable for power supply environment such as solar energy;5、The global body has a compact structure, low slewing clearance and fine operation;6、Dynamic intelligent noise reduction technology, no noise in the image in low light environment;7、PTC variable power heater, the lower the temperature, the greater the power, adapt to extreme cold weather;8、The body is made of high-strength aluminum alloy material, with three-proof and IP66 protection design;9、Optional 1080P ~ 4K camera and 384/640 thermal imaging movement or 20 ~ 5000 meters laser integration.10、Adopt precision heavy-duty power system, which is stable in operation, sensitive in response and accurate in positioning;

█ Product Size(mm)

█ Specifications

Model

JSA-8TSOAX500TH2075038475

Camera

Sensor

1/2.8″ Progressive Scan CMOS

Maximum pixel

1920[H]*1080[V]

Wide dynamic

55dB

BLC

automatic / manual

Day and night

automatic / manual

Lens focal length

20~750mm

Lens multiple

37.5X

Minimum illumination

Color:0.02Lux;black/white:0.001Lux

Ultra-wide dynamics

120dB

Automatic control

Auto white balance, auto focus, auto exposure, auto noise reduction, auto contrast enhancement

Thermal Imaging

Detector

Uncooled focal plane

Pixel pitch

17μm

Wavelength range

8~14μm

Resolution

384*288/50Hz

Temperature measurement

Standard -20 ° ~ 150 ° [optional 20 ° ~ 1600 ° ultra-high temperature model]; temperature measurement accuracy ± 2 °; sensitivity: ≤60mk @ 30 °

Standard lens

75mm/Optional other specifications

coding

Main processor

HiSilicon

Compression standard

H.265/H.265 High Profile /MJPEG

Stream parameters

32K~32Mbps

Audio compression

G.711/64Kbps

Network

Phone monitoring

Support Android platform smartphone or tablet preview

Network protocol

PPPoE、DHCP、TCP/IP、HTTP、RTP/RTCP、RTSP、UPNP、SMTP、FTP、ONVIF; optional28181

WIFI

Optional support for 802.11b / g protocol, 2.4GHz or military satellite channel

4G/5G

Optional built-in or external EVDO / WCDMA / TD-SCDMA module

Network Interface

10M / 100M adaptive Ethernet port

Alarm

Support; optional

Management model

IE / Standalone Management Software / NVR / Decoder / CMS Platform Server / Third Party Management Platform

Networking information

Wired, optional wireless [WIFI / spread spectrum microwave / 4G ~ 5G / satellite, etc.], support SDI / CVI / IP or simulate multiple mixed mode networking

intelligent

Insight

Optional intelligent analysis modules such as companion warning line, intrusion detection, perimeter area, people statistics, face recognition, behavior analysis, target tracking, firework / smoke detection, vehicle detection, ship detection / tracking, aircraft intrusion detection, etc.

PTZ

Loading method

Sphere built-in

spinning speed

Pan 0.01 ° ~ 45 ° / S; pitch 0.01 ° ~ 30 ° / S;

Rotation angle

Horizontal 0 ~ 360 ° continuous rotation; pitch + 45 ° ~ -45 °;

Preset

128; Preset accuracy: ± 0.01 °

Automatic cruise

4, each can set 10 cruise points

Automatic homing

Automatic homing time can be set; automatic scanning: 1

Protocol

Pelco-D, Pelco-P optional

Baud rate

2400/4800/9600/19200 bps optional

Communication Interface

RS485 supports angle query return (optional RS422, real-time return)

itsit

Weight / Protection

70KG; IP66

Wind resistance

The wind speed works normally at 140 kilometers per hour, and can withstand a maximum wind speed of 210 kilometers

Input voltage

AC220V ± 20%, peak power consumption 150W, average power consumption ≤80W

Power consumption

AC220V ± 20%, 50 / 60Hz / AC24V ± 20% (optional) / DC48V ± 20% (optional) / DC24V ± 20% (optional)

Heater

When the temperature in the machine is lower than 5 ° C, the PTC heater is automatically turned on.The lower the temperature, the greater the heating output power

working environment

-35 ℃ ~ 65 ℃; built-in temperature control device

Anti-salt spray / nitrogen filling

Between PH value 6.5-7.2, after continuous spraying for 48 hours, the machine works normally, no obvious changes on the surface



█ Application scenario

█ Application topology

█ Thermal imaging monitoring distance reference value correspondence table

█ Camera monitoring distance reference value correspondence table

Found the target [person, 1.7m], accounting for one-twentieth of the screen

Focal length [mm]

CCD height [mm]

Human height [m]

Identify other people’s faces [m] 1/4

Distinguish between men and women [m] 1/10

Discovery target [m]1/20

300

4.8

1.7

425

1063

2125

500

4.8

1.7

708

1771

3542

600

4.8

1.7

850

2125

4250

750

4.8

1.7

1063

2656

5313

1000

4.8

1.7

1417

3542

7083

1500

4.8

1.7

2125

5313

10625

Found the target [car, 2.3m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Car length [m]

Identify                  the model [m]

Resolution size [m]

Discovery target [m]1/20

300

6.4

2.3

431

1078

2156

500

6.4

2.3

719

1797

3594

600

6.4

2.3

863

2156

4313

750

6.4

2.3

1078

2695

5391

1000

6.4

2.3

1438

3594

7188

1500

6.4

2.3

2156

5391

10781

Found a fire [fire point, 2.5m], accounting for one-twentieth of the screen

Focal length [mm]

CCD width [mm]

Mountain        width [m]

2.5*2.5 fire point [m]

10*10 fire point [m]

50*50 fire point [m]

300

6.4

200

3516

14063

70313

500

6.4

200

5859

23438

117188

600

6.4

200

7031

28125

140625

750

6.4

200

8789

35156

175781

1000

6.4

200

11719

46875

234375

1500

6.4

200

17578

70313

351563
