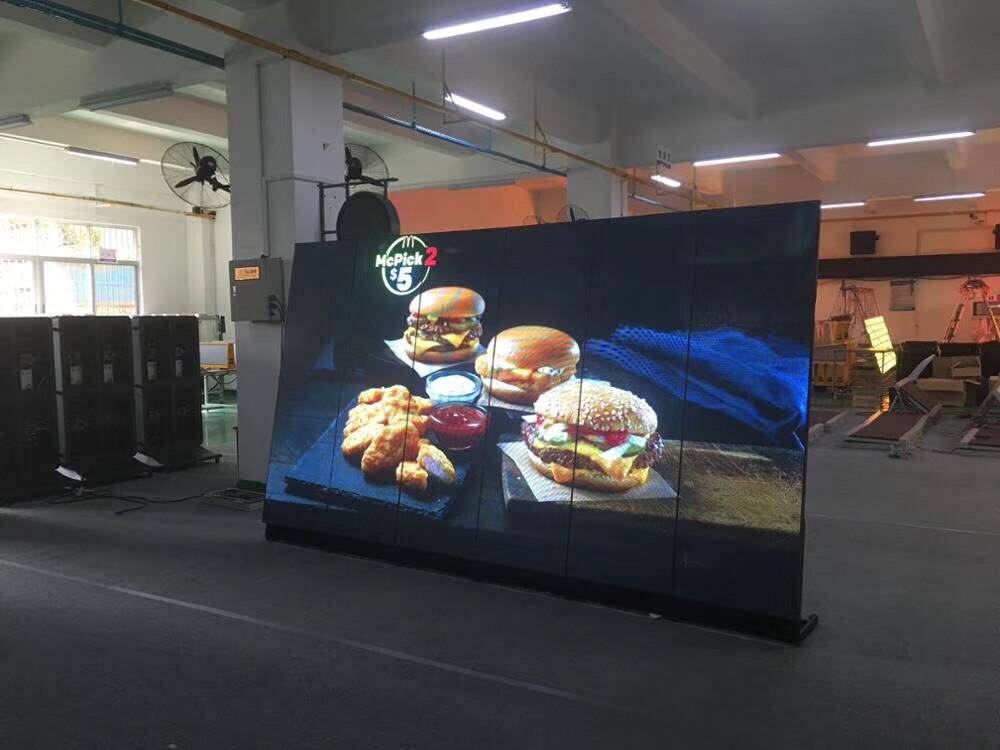

DIY 43 49 55 inch led backlight advertising display player signage tft hd led screen Outdoor LED advertising Screen display
solar led backlight advertising display player signage for cctv monitoring Toughened glass shell Bus waiting Pavilion station Outdoor LED Screen display
Toughened glass shell solar led backlight advertising player rolling Advertising signage for Bus waiting Pavilion station
AM04 The new bus shelters, the body made of galvanized steel or stainless steel, plastic or stainless steel
outdoor surface powder color, glass material for the glass screen black edges, the door for gas poles on both
sides before and after the opening, galvanized pipe or stainless steel tube column by using LED on the radio
side lighting lamp light source. Product modeling beautiful generous, strong and durable, can be equipped w
ith intelligent rolling control system, cost-effective, excellent communication effect, widely used in various typ
es of advertising information dissemination and marketing communication scene
First, technical requirements
The appearance of the waiting Pavilion should be smooth, safe and reasonable structure, convenient for daily maintenance and management, and the overall shape is consistent with the urban style.
1 the advertising lamp box of the waiting booth are all made of LED cold light source, and the middle is the stainless steel seat.
2 waiting booths reserved for information ports, lines and related facilities, to facilitate the installation of intelligent bus system.
The printing and the installation of 3 customers for advertising canvas, brand road, station name, line information cards, advertising canvas material for PP paper, famous road lighting with light requirements of lining cloth, nameboard require the use of crystal acrylic material, line information cards require the use of signs in the light guide line clamp.
Two, the main material
1 shelter metal parts made of high-quality galvanized steel and aluminum material (thickness: top frame is greater than or equal to 5mm and using 2mm aluminum cap, light box and LED box or 2mm; light box frame adopts the 2mm aluminum column, the pipe wall thickness is larger than 3mm, 3mm outsourcing aluminum, aluminum strip for column 2mm), all fasteners GB materials (exposed fasteners for stainless steel).
2 glass all use 8mm tempered glass, light box black edge using high temperature ink screen printing.
3 power supply of the waiting Pavilion light source, the use of LED light source, 50 meters can be clearly visible.
Three, process and quality requirements
1 molding and parts assembly size deviation + 2mm, angle deviation + 0.5.
2 the advertisement door and the advertisement frame are opened freely, and the door frame is arranged with a water proof groove.
3 plate, pipe cut section should be smooth, without burr.
The 4 parts of the folding, welding, welding parts with no leakage of welding, welding, welding scar must be polished smooth, no burrs and welding marks, stainless steel seat surface for linear drawing and punching.
The 5 main surface of the fluorocarbon paint process, ensure no fading and spalling in 10 years.
The 6 part of the electrical safety performance and quality requirements shall be in accordance with national standards; shelter and electrical system installation of leakage protector and good grounding system, grounding by galvanized 50mm * 5mm * 1500mm angle deep 1.5 meters and embedded parts connected by galvanized flat steel 40 * 4 (mm) from the ground under the two welding. 20cm.
7 the rear side of the bus stop outside the edge of the platform and the edge distance shall not be less than 20CM.
8 the waiting Pavilion column base should be installed with six studs.
Four, LED outdoor screen technical parameters
1 large light boxes on top of LED screen:
(1) P10 single red highlight brightness: more than 3000mcd.
(2) each display size: 3200mm * 160mm, can also display a total of 1 lines of 20 text.
(3): angle level greater than or equal to 120 degrees, 60 degrees vertical over.
(4) waterproof structure: waterproof screen.
(5) the use of the environment: temperature -30 C ~ 60.
(6) using RJ45 network control interface and RS485 control interface.
2 small light box top LED screen:
(1) specifications P7.62 single red highlight brightness is not less than 3000mcd.
(2) each display size: 976mm * 244mm, can also display a total of 2 lines of 16 text.
(3): angle level greater than or equal to 120 degrees, 60 degrees vertical over.
(4) waterproof structure: waterproof screen.
(5) the use of the environment: temperature -30 C ~ 60.
(6) using RJ45 network control interface and RS485 control interface.
3 bus stop at the end of the LED screen (for installation of intelligent transportation system platform):
According to the relevant technical parameters of intelligent public transportation system.
Five, foundation construction and site construction requirements
The customer is responsible for the shelter of foundation excavation construction, pavement restoration, installation of electrical connection and all approval and coordination, circuit access should be set leakage safety switch, control switch, air switch, power management and protection equipment; good grounding measures. During the construction, in addition to buried circuit lines, outside the tube, still need pre buried fiber line pipe, cable wells for later use, protection to do the line to ensure the safety of the platform; construction must comply with the national safety standards.
All of the company’s product warranty 5 years light box, control system warranty of 3 years, LED lighting electrical equipment warranty of 2 years warranty of 1 years, in addition to human factors or the force majeure causes damage, product quality problems during the warranty period free warranty! The basic processing, transportation, installation, advertising light box finished paper printing, daily maintenance and other aspects of regulation, we provide free technical support and assistance, incurred by the customer, please enquiry service personnel.
The company all finished light boxes can be customized according to the different requirements of customers, please contact customer service staff.
The company’s light box body structure warranty 5 years, LED display, LED lamps and electrical accessories warranty for 1 years, all light boxes can be customized according to customer requirements of different requirements.Embedded bolt installationInstallation formTwentyAC220V or DC24V, 250W (reference value, does not contain LED energy consumption)Comprehensive energy consumptionNineteenP10 outdoor unit board, wireless control cardLED displayEighteenGas bar, stainless steel hinge, lock boxes etc.Other accessoriesSeventeenLED lamp, light source on the exit sideIllumination light sourceSixteenControl switch, 2P leakage protection switch Delixi DelixiElectrical accessoriesFifteenColor determined by customerSubject colorFourteenWaterproof groove + D type waterproof rubber stripWaterproof designThirteenStatic pictureBack formTwelveStay open on both sides before and after gasOpen the doorElevenOutdoor color plastic or stainless steel powdersurface treatmentTenToughened glass, black screen printingWindow materialNineGalvanized steel / stainless steel / aluminum plate plate plate + sunCeiling materialEightGalvanized plate / stainless steel plate / stainless steel tube / galvanized pipeColumnSevenGalvanized sheet / stainless steel sheetMain materialSix3310 * 1400 + 1010 * 1600 (reference value)Video sizeFive3510 x 1600 x 280 x 2 + 1210 x 1800 x 280 Gongjiaozhanpai (reference value)Box size (width * height * thickness)Four13300 * 3080 * 1750 (reference value)Size (width * height * thickness)ThreeBus stop (with LED screen)Product nameTwoSEMAG-GJZT04Product numberOneConfiguration parameters and instructionsprojectSerial numberAG light box configuration parameters and instructions
