SALE 5% OFF

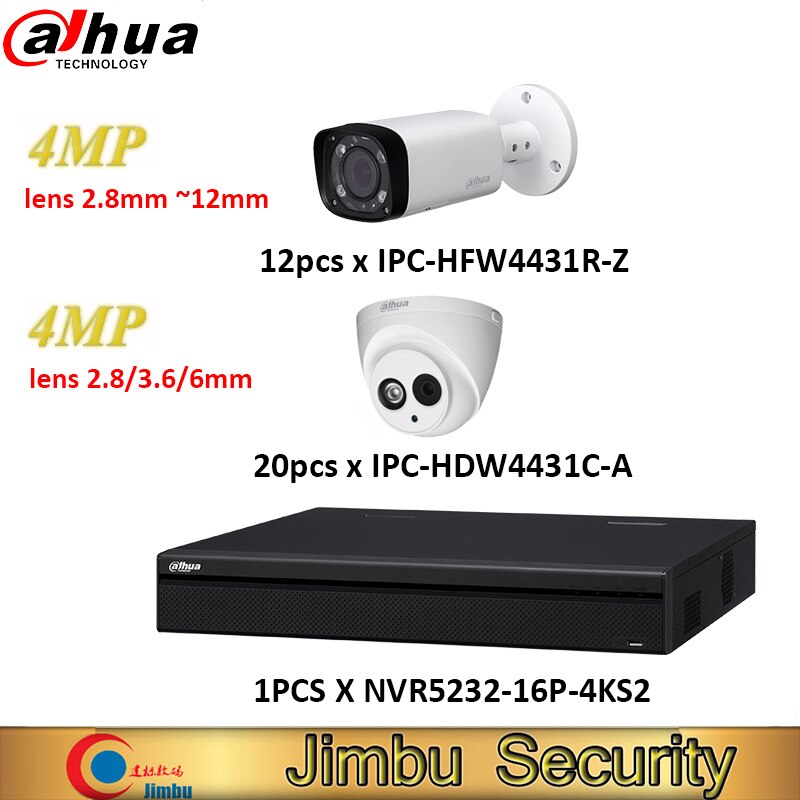

Note: For IPC-HDW4431C-A, when order, please leave message that which lens you want.
The use of ultra low light 4 Mega pixels (2592*1520) CMOS image sensor, low light effect, high image clarity
Can output 3 million 30fps (2304×1296), high resolution real-time or high frame rate image output
Support H.264, High profile H.265, Main profile H.264, Baseline H.264, MJPEG a variety of encoding formats, can be three streams at the same time output, flexible use of a variety of scenarios
Region of interest (ROI) coding, to ensure that the image quality, saving storage space
Support scalable video coding (SVC) technology, according to the network environment, adaptive transmission rate
Support mobile phone monitoring
Support corridor mode, the application is more flexible
Support wide dynamic, 3D noise reduction, strong light suppression, backlight compensation, suitable for different monitoring environment
The anti light high performance infrared light, to achieve 24 hours all-weather monitoring
Support POE power (802.3af) /DC12V + 25% wide pressure power supply, strong resistance to power fluctuations
Support is disconnected from the network, IP conflict, motion detection, video occlusions, mix line invasion, regional invasion, scene change, remaining items / disappear, face detection, hovering detection, gathering, fast moving, vehicle detection intelligent alarm
Conforms to the IP67 dust and waterproof international standard, meets the IK10 riot standard
2.8 mm ~ 12 mm Electric Zoom Lens
Model DH-IPC-HFW4431R-Z
Camera
Image Sensor 1/3 ” 4Megapixel progressive scan CMOS Aptina company
Effective Pixels 2592 (H) x1520 (V)
Scanning System Progress
Electronic Shutter Speed Automatic / manual, 1/3 (4) ~1 / 10000S
Min. Illumination 0.01LUX / F1.4 (color), 0LUX / F1.4 (IR)
S / N ratio More than 50dB
Video output 1
Camera Features
Maximum. Infrared light length 80 meters
Day / night Auto (ICR) / color / B / W
BLC BLC / HLC / DWDR
White balance Automatic / manual
Gain Control Automatic / manual
Noise Reduction 3D
Privacy masking Up to four areas
Lens
Focal length 2.8~12 mm
Maximum aperture F1.4
Focus Control Autofocus page in IE
FOV H: 92 ° ~28 °
Lens Type Electric / auto iris (DC)
Mounting Type Plate
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG
Video frame rate 50Hz:
2560×1440 25fps+D125fps+720P1fps
60Hz:
2560×1440 25fps+D130fps+720p1fps
Frame rate Mainstream 4M (1~25FPS) / 3M / 1080P / 720P (1~25 / 30fps)
Sub-stream D1 / CIF (1~25 / 30fps)
Bit Rate H2.65 / H.264 /MJPEG: 32K~10240Kbps
Audio frequency
Compression N / A
Interface N / A
Network
Ethernet RJ-45 (10 / 100BASE-T)
Wifi N / A
Agreement The IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP is, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filtering, Quality of Service, Bonjour
Compatibility ONVIF, PSIA, CGI
Maximum. User Access 20users
Smartphone The iPhone, iPad, Android’s
Auxiliary Interface
Memory slots N / A
RS485 N / A
Call the police N / A
PIR sensor range N / A
General
Power supply DC12V, POE (802.3af standard)
Power consumption Maximum 8.5W (motorized lens: + 2W)
Work Environment -40 ~ + 60 , less than 95% RH’s
Protection class IP66
Riot resistance N / A
Size 212.8 mm × 72 × 80 mm
Weight 0.75 (0.65 kg including packaging)
and gt;1/3” 4Megapixel progressive scan CMOS
and gt;H.265/H.264 and amp;MJPEG Dual code
and gt;20fps4M(2688*1520), 25/30fps3M(2304*1296)
and gt;WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
and gt;Smart Detection supported
and gt;Multiple network monitoring:Web viewer, CMS(DSS/PSS) and amp; DMSS
and gt;3.6mm fixed lens (2.8mm optional)
and gt;Max. IR LEDs Length 30m
and gt;IP67, PoE
and gt;Onvif 2.4
|
Model |
DH-IPC-HDW4431C-A-V2 |
|
|
Camera |
||
|
Image Sensor |
1/3” 4 Megapixel progressive scan CMOS |
|
|
Effective Pixels |
268899(H)x1520(V) |
|
|
Scanning System |
Progressive |
|
|
Electronic Shutter Speed |
||
|
Min.lllumination |
0.01ux/F2.0(Color),0lux/F2.0(IR on) |
|
|
S/N Ratio |
More than 56dB |
|
|
Video Output |
N/A |
|
|
Camera Features |
||
|
MAX.IR LEDs Length |
50m |
|
|
Day/Night |
Auto(ICR)/Color/B/W |
|
|
Backlight Compensation |
BLC/HLC/WDR(120dB) |
|
|
White Balance |
Auto/Sunny/Night/Outdoor/Customized |
|
|
Gain Control |
Auto/Manual |
|
|
Noise Reduction |
3D |
|
|
Privacy Masking |
Up to 4 areas |
|
|
Lens |
||
|
Focal Length |
2.8mm/3.6mm/6mm optional |
|
|
Max Aperture |
F2.0(F1.9) |
|
|
Focus Control |
Manual |
|
|
Angle of View |
H:81° 55° |
|
|
Lens Type |
Fixed lens |
|
|
Mount Tyoe |
Board-in Type |
|
|
Video |
||
|
Compression |
H.264/H.264H/H.264B/MJPEG |
|
|
Resolution |
4M(2688X1520)/4M(2560X1440)/1080P(1920X1080)/ 720P(1280X720)/D1(704X576/704X480)/CIF(352X288/352X240) |
|
|
Frame Rate |
Main Stream |
4M(1~20fbs)/3M(1~25/30fbs) |
|
Sub Stream |
D1/CIF(1~20fbs) |
|
|
Third Stream |
720P(1~20fbs) |
|
|
Bit Rate |
H.264:32kbps~10Mbps |
|
|
Corridor Mode |
Support |
|
|
Audio |
||
|
Compression |
G.711a/G.711u/AAC |
|
|
Interface |
Built-in Mic |
|
|
Smart Function(Optional) |
||
|
Smart detection |
Tripwire |
|
|
Intrusion |
||
|
Abandoned/Missing |
||
|
Scene Change |
||
|
Audio detect |
||
|
Face detect |
||
|
Ethernet |
RJ-45(10/100Base-T) |
|
|
Network |
||
|
Wifi |
N/A |
|
|
Protocol |
IPv4/IPv6,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter, QoS, Bonjour,802.1x |
|
|
Compatibility |
ONVIF,PSIA,CGI |
|
|
Max.User Access |
20 users |
|
|
Smart Phone |
iPhone,iPad,Android, Windows Phone |
|
|
Auxiliary interface |
||
|
Memory Slot |
N/A |
|
|
RS485 |
N/A |
|
|
Alarm |
N/A |
|
|
PIR Sensor Range |
N/A |
|
|
General |
||
|
Power Supply |
DC12V,PoE(802.3af) |
|
|
Power Consumption |
Max 3.7W |
|
|
Working Environment |
—30 ~+60 Less than 95%RH |
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
N/A |
|
|
Dimensions |
157*157*138mm |
|
|
Weight |
0.46kg |
|
and gt;H.265/H.264/MJPEG/MPEG4 codec decoding
and gt;Max 320Mbps incoming bandwidth
and gt;Up to 12Mp resolution preview and amp;playback
and gt;HDMI/VGA simultaneous video output
and gt;3D intelligent positioning with Dahua PTZ camera
Specifications
|
Model |
DH-NVR5216-16P-4KS2 |
DH-NVR5232-16P-4KS2 |
|
System |
||
|
Main Processor |
Quad-core embedded processor |
|
|
Operating System |
Embedded LINUX |
|
|
Video and amp; Audio |
||
|
IP Camera Input |
16 channel |
32 channel |
|
Two-way Talk |
1 channel Input, 1 channel Output, RCA |
|
|
Display |
||
|
Interface |
1 HDMI (up to 3840×2160), 1 VGA |
|
|
Resolution |
3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
|
|
Display Split |
1/4/8/9/16 |
1/4/8/9/16/25/36 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
|
Recording |
||
|
Compression |
H.265/H.264/MJPEG/MPEG4 |
|
|
Resolution |
12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1 and amp;etc. |
|
|
Record Rate |
320Mbps |
|
|
Bit Rate |
16kbps~ 20Mbps for per channel |
|
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
|
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
|
Video Detection and amp; Alarm |
||
|
Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer and amp; Screen tips |
|
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss and amp; Camera Blank |
|
|
Alarm Input |
4 channel |
|
|
Relay Output |
2 channnel |
|
|
Playback and amp; Backup |
||
|
Sync Playback |
1/4/8/16 |
1/4/8/16 |
|
Search Mode |
Time/Date, Alarm, MD and amp; Exact search (accurate to second), Smart search |
|
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
|
Backup Mode |
USB Device/Network/Internal SATA burner |
|
|
Network |
||
|
Ethernet |
1 RJ-45 port (10/100/1000Mbps) |
|
|
PoE |
16 ports (IEEE802.3af/at) |
|
|
Network Function |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
|
|
Max. User Access |
128 users |
|
|
Smart Phone |
iPhone, iPad, Android |
|
|
Storage |
||
|
Internal HDD |
2 SATA ports, up to 12TB |
|
|
Auxiliary Interface |
||
|
USB |
2 ports (1 Rear USB3.0,1 Front USB2.0) |
|
|
RS232 |
1 port, For PC communication and amp;Keyboard |
|
|
General |
||
|
Power Supply |
Single, AC 100~240V, 50/60 Hz |
|
|
Power Consumption |
NVR: 14.5W without HDD |
|
|
PoE: Max 25.5W for single port, 130W in total |
||
|
Working Environment |
-10°C~+55°C / 10%~90%RH / 86~106kpa |
|
|
Dimension |
1U, 375mm×327mm×53mm |
|
|
Weight |
2.7KG (without HDD) |
|
