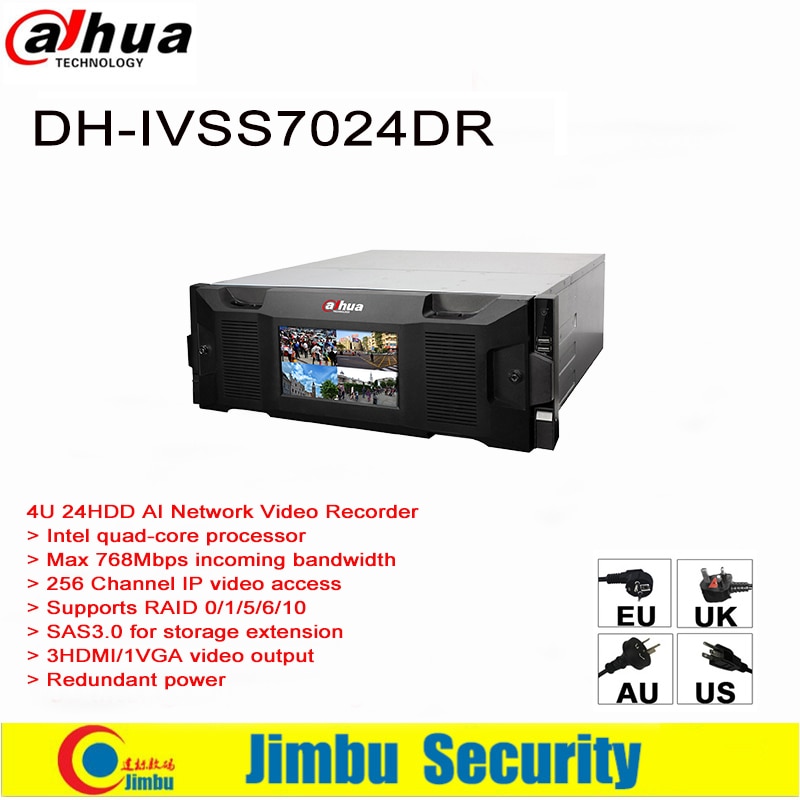

Dahua 4U 24HDD AI Network Video Recorder  IVSS7024DR     Max 768Mbps incoming bandwidth  256 Channel IP video access

System

Main Processor

Intel Quad-core Processor

Memory

16GB, up to 64GB

Operating System

Embedded LINUX

Artificial Intelligence  (with AI camera)

Face Recognition

Show face recognition result from AI camera

Face Detection

Show face detection result from AI camera

Metadata

Record sturctured data of gender, age, expression, glasses, moustache, mouth mask information.

Trigger Events

Buzzer, snapshot, recording, etc.

Audio and Video

IP Camera Input

256 Channel

Two-way Talk

1 × 3.5mm audio input, 1 × 3.5mm audio output

Display

Interface

3 HDMI, 1VGA

Resolution

HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720

VGA : 1920 × 1080 , 1280 × 1024,

1280 × 720

Decoding Capability

24-ch@1080P(30fps)

Multi-screen  Display

Up to 36 split for each screen

OSD

Camera title, Time, Motion detection, Recording

Recording

Bandwidth

768Mbps

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc.

Record Mode

Schedule (Continuous, Event)

Video Detection and Alarm

Trigger Events

Recording, Snapshot, Buzzer, etc.

Video Detection

Motion Detection, MD Zones: 396 (22 × 18); Tampering

Alarm input

16 Channel

Relay Output

8 Channel

Playback and Backup

Sync Playback

Up to 16ch sync playback, 768Mbps playback bandwidth

Search Mode

Time /Date, Video Detection, Face and Exact Search (accurate to second)

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

AXIS, Panasonic, Sony, etc.

Network

Interface

4 RJ-45 Ports (10/100/1000Mbps)

Optional Interface

4 Giga Optical Fiber Interface

Network Port Mode

Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation

Network Function

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, etc.), P2P

Interoperability

ONVIF 2.4, SDK

Storage

Internal HDD

24 SAS/SATA HDDs, Up to 10 TB capacity for each HDD, Independent HDD bracket, hot-swap

HDD Mode

Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended),  Support Global HDD Hot-spare

eSATA

1 eSATA Port (Please contact technical engineer to confirm the compatible device)

SAS

2 SAS3.0 Ports

Auxiliary Interface

Front Cover

Support Hot-swap,  7-inch HD LCD (1920 × 1080 , 1280 × 1024)

USB

4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232

1 Port, for PC Communication

RS485

1 Port

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant

Power Consumption

and lt;70W (Without HDD)

Fan

Dual-ball bearing fans, Hot-swap

Environmental

Operating Conditions

0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

4U, 482.6mm x 543.4mm x 175mm (19″ x 21.39″ x 6.89″)

Net Weight

20kg (44.09 lb) (without HDD)

Installation

Standard 19-inch Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1
