IVSS7008-1I

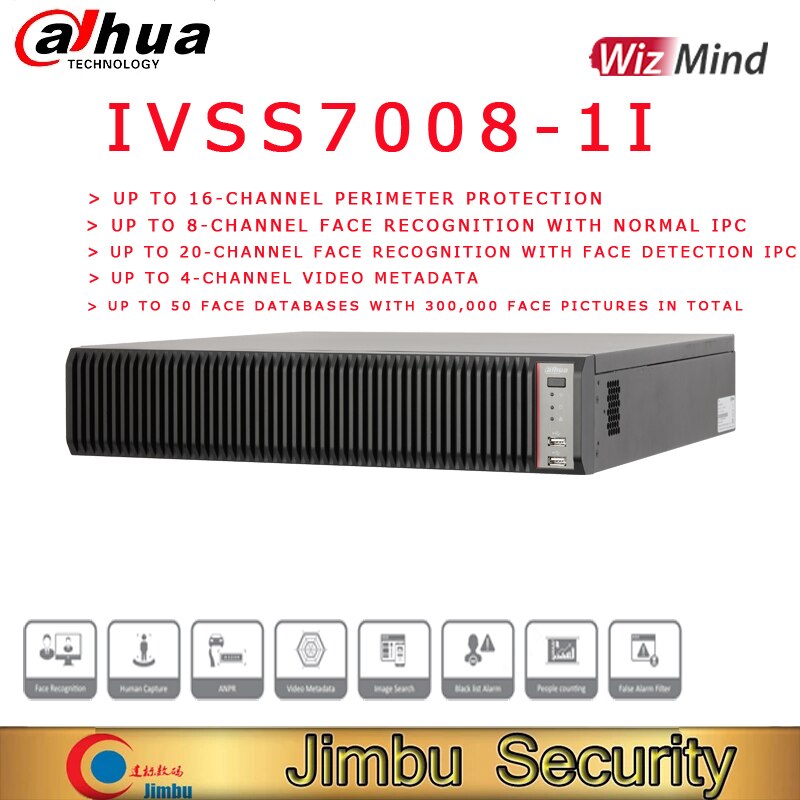

2U 8HDD WizMind Intelligent Video Surveillance Server

and gt; Industry embedded micro-controller

and gt; Max 400Mbps incoming bandwidth

and gt; 128-channel IP video access

and gt; Up to 16-channel perimeter protection

and gt; Up to 8-channel face recognition with normal IPC

and gt; Up to 20-channel face recognition with face detection IPC

and gt; Up to 4-channel video metadata

and gt; Up to 50 face databases with 300,000 face pictures in total

and gt; Supports RAID 0/1/5/6/10

and gt; 3 HDMI/2 VGA video output

System

Main Processor

Industry embedded micro-controller

Operating System

Embedded Linux OS

Operation Interface

WEB (PCAPP), local GUI

AI Applications

AI by Camera

Face detection, face recognition, video metadata,

IVS (tripwire, intrusion, missing object, and more),

people counting, smoking detection, call detection

AI by Device

Face detection, face recognition, video metadata,

IVS (tripwire, intrusion, missing object, and more), people counting, smoking detection, call detection

IVS

IVS Performance (AI by Device) (Channel Number)

General model: 16-channel

Advanced model: 4-channel

IVS Performance (AI by Camera) (Channel Number)

64-channel

Human Face Detection

Human Face Properties

Supports 6 properties: Gender, age, glasses, expression, mouth mask, and beard.

Face Detection Performance (AI by Device) (1080P) (Channel Number)

8-channel

Face Detection Performance (AI by camera) (Channel Number)

20-channel

Human Face Recognition

Face Database Capacity

50 face databases with 300,000 face pictures in total

Human Face Recognition Performance (AI by Device) (1080P)(Channel Number)

8-channel with normal IP camera

20-channel with face detection IP camera (Totally 20 face pictures analyzed per second)

Human Face Recognition Performance (AI by camera) (Channel Number)

20-channel

ANPR

Plate Database Capacity

50 plate databases with 300,000 plate numbers in total
Supports allowlist and blocklist

Plate Detection Performance by ITC Camera (Channel Number)

32-channel

Video Metadata

Human Body Properties

Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask

Vehicle Properties

Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region

Non-motorized Vehicle Properties

Non-motor Vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat,bag , sleeve length, top color, hat, hair style, mouth mask

Metadata Performance (AI by Device) (1080P) (Channel Number)

4-channel

Metadata Performance (AI by camera) (Channel Number)

32-channel

Video Parameters

Remote Connection

128-channel

Network Bandwidth

Incoming bandwidth: 400Mbps
recording bandwidth: 320Mbps
outgoing bandwidth: 96Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

2-channel 16MP/5-channel 12MP (20fps)/6-channel 12MP (15fps)/5-channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel 6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP (25fps)/10-channel 4MP (30fps)/15-channel 4MP (20fps)/16-channel 3MP (25fps)/10-channel 1080P (60fps)/20-channel 1080P (30fps)/30-channel 720P (30fps)

Video Output

2-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output

Multi-screen Display

Customized display

Max. 36-channel local live view

Max.16-channel PCAPP live view

Third-party Support

Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung

Operating System

Embedded Linux OS

Operation Interface

WEB(PCAPP), local GUI

Compression

Video Compression

Smart H.265+/Smart H.264+/H.265/H.264

Audio Compression

G.711A/G.711U/PCM/G726

Network

Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone

DMSS

Interoperability

ONVIF (Profile S, T and G), CGI, SDK

Browser

Chrome, PCAPP, IE9 or higher, Firefox

Network Mode

NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc

Record Playback

Multiple-channel Playback

Max. 16-channel playback

Record Search

Search video detection/manual record/IO alarm/intelligent event/all record file

Storage Medium

Internal HDD, SAS disk array enclosure

Backup Method

HDD, peripheral USB storage device

Playback Function

Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play

Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off

Storage

HDD Group

8

RAID

RAID 0/1/5/6/10

Storage Pool

N/A

Alarm

General Alarm

Motion detect, tampering, local alarm

Anomaly Alarm

IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, AI module temperature alarm, AI module offline, fan malfunction

Intelligent Alarm

Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call

Alarm Linkage

Record, snapshot (full image), local external alarm output, IPC external alarm output, access and amp; control, audio prompt, buzzer, log, preset, email

Peripheral Interface

Audio Input

1-channel, RCA port (reserved)

Audio Output

2-channel, RCA port, speaker output, audio linkage output

Alarm Input

16-channel

Alarm Output

8-channel

Internal HDD

8 slots, SATA3.0. Max.16T/HDD

eSATA

1 port

SAS

N/A

RS-232

1 port, for debug or transparent COM data

RS-485

1 port, control peripheral PTZ and so on

Supports various protocols

USB

4 ports

2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel

HDMI

3 ports; support 4K output

VGA

2 ports

Network

4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports

Power

1 port

PoE

N/A

General Parameters

Power Supply

100V AC–240V AC 50±2%Hz

Power Consumption

40W (without HDD, idling)

136W (all HDDs connected)s

Net Weight

8.55 kg (18.85 lb)

Gross Weight

10.9 kg (24.03 lb)

Dimensions

(W × L × H)

Chassis: 439.7 mm × 446.2 mm × 89 mm

(17.31 ” × 17.57 ” × 3.50 “)
Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8 mm (with feet mat) (18.96 ” × 17.57 ” × 3.57 “)

Packaging Dimensions

(W × L × H)

With Packaging: 562 mm × 599 mm × 235 mm

(22.13 ” × 23.58 ” × 9.25 “)
Protection box: 491 mm × 584 mm × 631 mm

(19.33 ” × 22.99 ” × 24.84 “)

Operating Conditions

0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH

Strorage Conditions

0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH

Operating Altitude

5000 m (16404.20 ft)

Installation Mode

Desktop/rack

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN55024,EN55035, EN50130-4,EN60950-1

FCC: Part 15 Subpart A

UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
