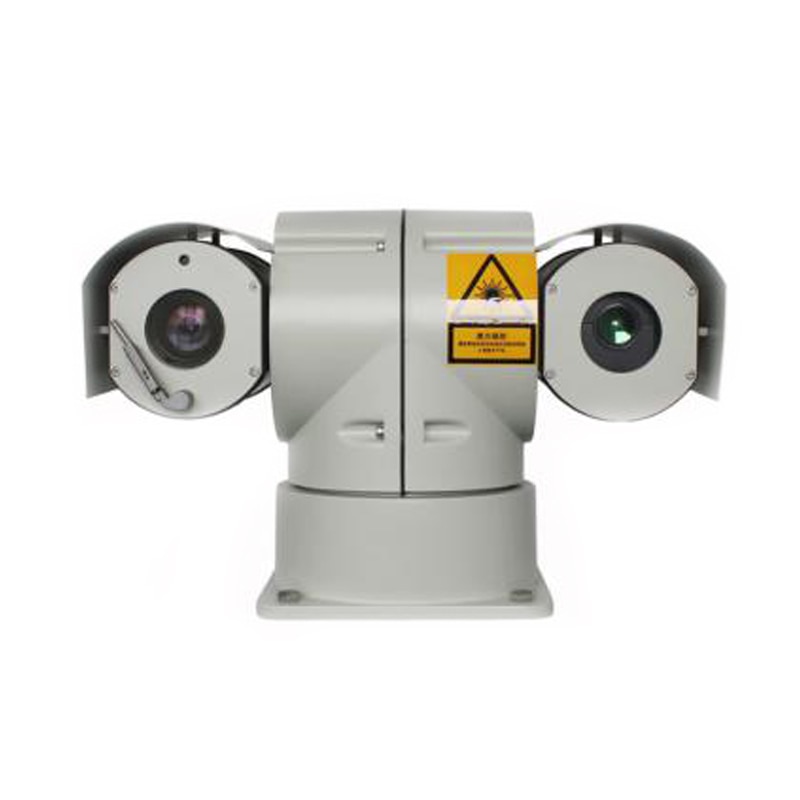

█ Product Image
█ Functional characteristics
1、Aluminum alloy structure design, waterproof grade IP662、Continuous 360 ° horizontal rotation, ± 90 ° vertical, automatic flip3、Optional 384 * 288 or 640 * 480 thermal imager movement integration4、Support ONVIF, GB28181 protocol, can provide SDK for easy integration5、Anti-fog: use heating glass to heat directly, remove mist in about 5 minutes6、Horizontal manual speed up to 160 ° / S, vertical manual speed up to 55 ° / S7、preset positions: 255, horizontal speed up to 160 ° / S, vertical speed up to 80 ° / S8、Support cold start at -35 ℃, can be used in severe cold areas: anti-freeze, dust-proof9、Isolated power supply design, high stability, vehicle power supply voltage input range: DC9V ~ DC36V10、Strong anti-electromagnetic interference ability, suitable for complex environments such as the power industry11、Brake motor is used to support the self-locking of the gimbal to enhance the wind resistance level of the gimbal12、The upper and lower structure design of the camera and infrared cylinder makes it faster for customers to install the camera by themselves
█ Application scenario
1、Safe city2、Outdoor sports3、Mobile vehicle control4、Distance education / medical5、Community / park monitoring6、110 law enforcement vehicles7、Highway mobile law enforcement8、Wedding recording and broadcasting9、Urban management law enforcement10、Road administration law enforcement vehicles
█ Product Size(mm)
█ Specifications
|
Model |
JSA-8HSOTLTH5108 |
||
|
Camera |
Image Sensor |
1/2.8″ Progressive Scan CMOS |
|
|
Maximum pixel |
2 million pixels |
||
|
Effective Pixels |
1920(H)×1080(V) |
||
|
Lens multiple |
20x optical, 16x digital |
||
|
Wide dynamic |
100dB |
||
|
Lens |
5.4-108mm |
||
|
Min. Lux |
Color：0.01Lux；black/white：0.001Lux |
||
|
Automatic control |
5A：Auto white balance, focus, exposure, noise reduction, contrast enhancement |
||
|
Signal to noise ratio |
≥50db |
||
|
Electronic shutter |
1/32000s – 1/7.5s |
||
|
Features |
Thermal Imager |
Standard with 384 * 288 / 19mm lens; optional 640 * 480 and other specifications of the lens; or optional temperature measurement model [temperature range -20 ° ～ 150 °, up to 1600 °]; temperature measurement accuracy and use The environment is related to the distance, the target distance is within 15m, and the temperature measurement accuracy is ± 2 ° |
|
|
Network protocol |
Onvif, IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP, UDP, IGMP, ARP, optional RTMP |
||
|
Video compression |
H.265/ H.264 |
||
|
Multi-stream |
FullHD +FULL D1 |
||
|
Bit rate mode |
VBR/CBR |
||
|
data storage |
Automatic / manual recording, support TF card |
||
|
Mechanical behavior |
Rotation angle |
360° |
|
|
Horizontal speed |
0-160°/S； |
||
|
Vertical range |
-90°~ 90° |
||
|
Vertical speed |
0-55°/S |
||
|
Preset |
255 |
||
|
Track cruise |
8 patrol tracks |
||
|
Scanning / self-learning |
8 |
||
|
Positioning / planning / watching |
Support |
||
|
Power failure recovery |
Support |
||
|
Rotation angle |
Support |
||
|
Intelligent image stabilization |
Effectively solve the problem of vehicle image shake |
||
|
Smart tracking |
Intelligent optional / supports automatic tracking |
||
|
interface |
RS – 485 |
Support PELCO-P / D |
|
|
Analog video |
1.0V [p-p] / 75Ω, PAL or NTSC, BNC interface |
||
|
Network |
10 / 100M network adaptive, RJ45 interface |
||
|
specificatio |
temperature humidity |
-35 – 70℃ / 0～90%(Non-condensing) |
|
|
Power supply |
Wide power input DC9V-DC36V (optional AC24V) / ≤50W |
||
|
Protection class |
IP66 |
||
|
size |
Φ380×300mm |
||
|
Weight |
8kg |
||
█ Application scenario
█ Application topology
█ Thermal imaging monitoring distance reference value correspondence table
█ Camera monitoring distance reference value correspondence table
|
Found the target [person, 1.7m], accounting for one-twentieth of the screen |
|||||
|
Focal length [mm] |
CCD height [mm] |
Human height [m] |
Identify other people’s faces [m] 1/4 |
Distinguish between men and women [m] 1/10 |
Discovery target [m]1/20 |
|
300 |
4.8 |
1.7 |
425 |
1063 |
2125 |
|
500 |
4.8 |
1.7 |
708 |
1771 |
3542 |
|
600 |
4.8 |
1.7 |
850 |
2125 |
4250 |
|
750 |
4.8 |
1.7 |
1063 |
2656 |
5313 |
|
1000 |
4.8 |
1.7 |
1417 |
3542 |
7083 |
|
1500 |
4.8 |
1.7 |
2125 |
5313 |
10625 |
|
Found the target [car, 2.3m], accounting for one-twentieth of the screen |
|||||
|
Focal length [mm] |
CCD width [mm] |
Car length [m] |
Identify the model [m] |
Resolution size [m] |
Discovery target [m]1/20 |
|
300 |
6.4 |
2.3 |
431 |
1078 |
2156 |
|
500 |
6.4 |
2.3 |
719 |
1797 |
3594 |
|
600 |
6.4 |
2.3 |
863 |
2156 |
4313 |
|
750 |
6.4 |
2.3 |
1078 |
2695 |
5391 |
|
1000 |
6.4 |
2.3 |
1438 |
3594 |
7188 |
|
1500 |
6.4 |
2.3 |
2156 |
5391 |
10781 |
|
Found a fire [fire point, 2.5m], accounting for one-twentieth of the screen |
|||||
|
Focal length [mm] |
CCD width [mm] |
Mountain width [m] |
2.5*2.5 fire point [m] |
10*10 fire point [m] |
50*50 fire point [m] |
|
300 |
6.4 |
200 |
3516 |
14063 |
70313 |
|
500 |
6.4 |
200 |
5859 |
23438 |
117188 |
|
600 |
6.4 |
200 |
7031 |
28125 |
140625 |
|
750 |
6.4 |
200 |
8789 |
35156 |
175781 |
|
1000 |
6.4 |
200 |
11719 |
46875 |
234375 |
|
1500 |
6.4 |
200 |
17578 |
70313 |
351563 |
