LCD VIDEO WAll Parameters:
| LCD Panel | Model | 46” DID LCD Panel |
| Resolution | 1920×1080(H×V) | |
| Pixel Pitch | 0.53025×0.53025(mm) | |
| Brightness | 500(cd/ m ) | |
| Contrast Ratio | 4000:1 | |
| Response Time | 6ms | |
| Display Color | 16.7M | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Image | Aspect Ratio | 16:09 |
| Compensation Technology | LTI,CTI | |
| Motion Compensation Technology | AUTO MOVE | |
| Filter | 3D combing filter, Digital noise reduction | |
| Video Formats | PAL,NTSC | |
| Signal Source | Composite Video Input | CVBS(BNC) ×1; |
| Composite Video Output | CVBS(BNC) ×1 ; | |
| Digital Signal Input | HDMI×1; 1920×1080@60Hz Backwards compatible | |
| Computer Signal Input | VGA(DB-15) ×1;1920×1080@60Hz Backwards compatible | |
| Digital Signal Input | DVI(DVI-I)×1;1080P(1920×1080) Backwards compatible | |

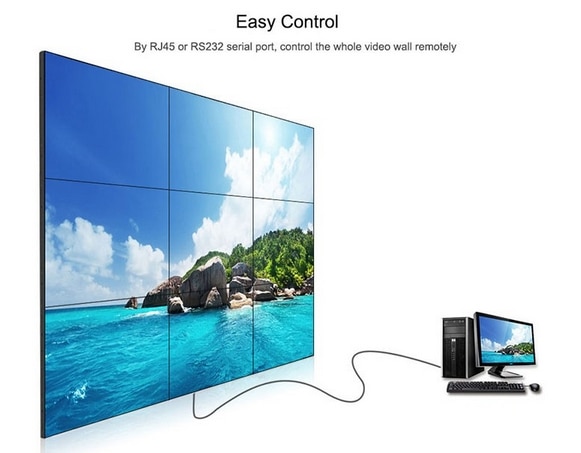

| Built-in Controller | Computer Centralized Control Interface | RS232 |
| Function | Signals combine and display arbitrarily | |
| Automatic Temperature Control | Work automatically according to the set temperature and actual temperature of the machine to control fan operation | |
| System | Image Signal Gain | A more stable and correct image control |
| Operation Mode | Computer centralized control | |
| Bus Control | I C | |
| MTBF | 50000 hs | |
| Power Supply | Voltage | 100~240V |
| Power Consumption | 230W | |
| Sructure | Frame Size | Upper side:3.5mm; lower side:1.7mm; left side:3.5mm; right:1.7mm |
| Installation Dimensions | 1024mm×578.6mm×141.5mm | |
| Display Area | 1018.10mm×572.70mm | |
| Installation Position | 564×200(mm) | |
| Material of Shell | Metal | |
| Installation | Standard cabinets, custom cabinets | |
| Weight | G.W. | About 31Kg |
| N.W. | About 22Kg | |
| Environment | Storage Temperature | -20°C~65°C |
| Working Temperature | 0°C~55°C | |
| Working Humidity | 10%~90% | |
| Quality | Quality Assurance | CCC, FCC, UL, CE, RoHS |
| Environmental Protection Standard | All components and packaging materials are in line with international environmental standards |
Ultra Narrow Bezel Optional:8mm, 5.3mm, 3.5mm
The OverView series comprises 46″ and 55″ LCD displays with LED backlights, combining high brightness and a wide color gamut with an extremely narrow bezel for excellent tiled visual performance.
In the field of large-screen mosaic, traditional DLP big screen has gradually lost
competitiveness because of the high maintenance costs and it does not fit to display
the high-definition dynamic images. Large-screen LCD video wall began to widely
used in the industry because of the advantage of its excellent high-tech display,
low power consumption, cheap and convenient maintenance.
Applications
LCD Video Wall Displays
The AutoMedium LCD video wall is an excellent solution for both large and small control rooms, especially where space is limited. It’s an easy to operate, self-contained LCD video wall display for network monitoring, emergency operations, process control, security monitoring and military applications. This economical video wall employs either “thin bezel”, or the latest “ultra-thin bezel” commercial LCD displays with LED back lighting. This LCD video wall display is expandable to grow as your requirements grow. Select from four high-definition screen sizes. Combine this LCD video wall with matching control room furniture manufactured to your specifications.
How the Auto Medium LCD Video Wall Works
The AutoMedium LCD video wall display offers the most advanced screen management tools available. Easily assign an individual image to fill each screen, assign multiple images to each screen, or enlarge an image across the entire screen matrix, or part of the screen matrix. Build the LCD video wall display with as many screens as space allows. Ultra-thin bezels are the least distracting when enlarging images across multiple displays, however if you don’t plan to enlarge images, the less expensive thin bezel models may be the best choice.
 |
 |
 |
| AutoMedium 2×2 LCD Videowall | AutoMedium 2×2 LCD Videowall | AutoMedium 2×3 LCD Videowal |
1.High-definition direct view LCD panels with video processor (controller) and optional sound settings.
2.Windows software with wireless keyboard and mouse operation; touch panel control optional.
3.Simultaneously display internet, network applications, individual computers, cameras and TV sources.
4.Size and move images across the entire video wall matrix with the click of a mouse.
5.Image processing compensates for bezels; no information is lost.
6.Modular, expandable and customized to ceiling height and wall space.
7.Installation and training completed in one day in most cases.
 |
 |
 |
| 2×3 Matrix with Multiple Images | 2×2 Matrix with Enlarged Image | 2×2 Matrix with Enlarged Image |
More About LCD Video Wall Technology
|
LCD video walls are basically comprised of commercial grade flat panels placed edge-to-edge with a video processor. This high-definition LCD video wall display system with LED back-lighting is mounted on the wall using a steel apparatus that ensures adequate alignment, or is installed in a specially designed freestanding cabinet like our Visionmaster video walls. You can expect the depth of installed displays to be between nine and twelve inches depending on method of mounting and screen size. LCD panels designed for videowalls have improved significantly in recent years making them the preferred choice for small spaces and limited budgets, however they don’t last forever and will eventually have to be replaced. LCD panels are getting larger, slimmer, lighter, and are now available with thin enough bezels (frames) to make them a solid alternative to projection cubes for video walls. However, LCD panel manufacturers are changing their product lines frequently, so when yours eventually fail, you want a manufacturer that can replace it with an identical model years after purchase. |
