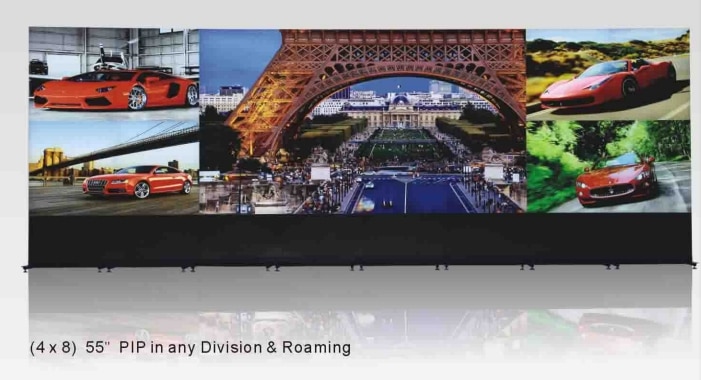

8x4pcs 55inch panel 0mm bezel Spliced lcd video wall in any division roaming Video Surveillance CCTV Monitor Display

Features

Model No. ———————- AMPL-55-0050
Width x Height —————- 1215.3 x 686.1 mm
Active Area ——————— 1215.3 x 686.1 mm
Thickness ——————— 100 mm
Width of LCD Frame ——– 0 + 0 mm
LCD Diagonal —————- 55 inches
Aspect Ratio —————— 16 : 9
Contrast Ratio ————— 4500 : 1
Viewing Angle —————- 178 x 178°
Brightness ——————– 500 cd/m2
Pixel Pitch ——————— 0.63 x 0.63 mm
Color —————————- 8 Bit – 16.7 Million
Native Resolution ———- 1920 x 1080
LCD Screen Type ———– Hard Panel
Hardware and Software — Build-in
Input Available ————— HDMI; DVI (HDMI); Video; VGA; YPbPr
Working Ambient ———— 0 ~ 40 °C
Working Life —————— 60,000 Hr
Power Management ——- 175 W
Weight (Ref.) —————– 25 kg
Packing (Ref.) ————— 1400 x 900 x 185 mm
Installation ——————- Standalone // Front Installation (Against Wall)

New products did lcd video wall supper narrow bezel 0mm

LCD Video walls

Professional-grade, high-resolution LCD displays are the perfect solution for tiled video wall applications in small to medium-sized control rooms.

The Super narrow bezel series comprises 46″, 47” and 55″ LCD displays with LED backlights, combining high brightness and a wide color gamut with an 0 bezel for excellent tiled visual performance.

Features :

1. Narrow design: the narrowest can reach 0mm, and it truly achieves the seamless.
2. Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal
3. Remote control function: by RS232 port and Ethernet connection for remote operation
4. Beautiful wall structure design, be convenient for installation and maintenance
5. Continuous boot for 7 * 24 hours, deserve to trust.
6. Support 365 days non-stop boot, the backlight life is up to 60,000 hours
7. Splicing mode is optional.
8. Support error and compensation function of video wall pictures
9. Modular design according to customer demand (M * N)
10. Diversification of the display mode

11. Excellent display

Real Application Cases
