1.Underwater focus length should be divided by 1.33
2.Delivery time 4weeks , please extend the delivery time when you ordered.
This product needs to carry on the strict pressure test, the delivery time is relatively long,
please wait patiently when you ordered.
3.The terminal of the cable should be paraffin seal to avoid water income during installation.
-
1/2.7 inch 5Megapixel progressive scan SONY CMOS
-
5MP592*1944@15fps;4MP 2560*1440@25fps;3MP 2048*1536@25fps
IP68, POE Max. water depth: 100m -
Focus f=3.8-38mm(F1.8-3.2)10X10 zoom
-
Multiple network monitoring: Web viewer, CMS
-
Max.128 preset.support preset recover if power off or dislocationHousing
-
material: stainless steel 316L
-
Attachment bar: adjustable by 180
-
Toughened safety glass (ESG)
-
TVS lightning protection to avoid 1.5KW thunderstrike

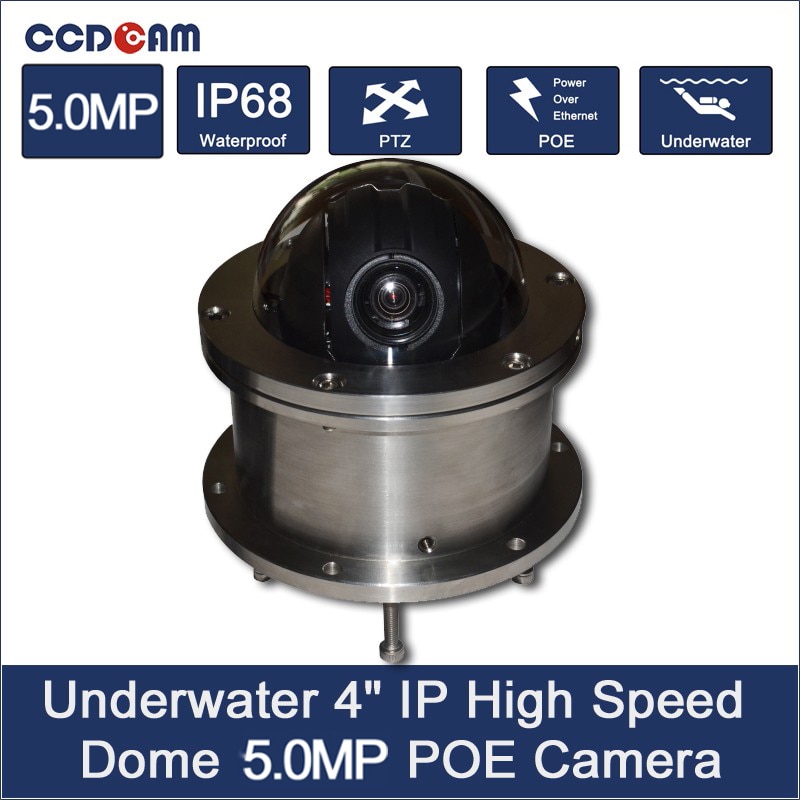

The underwater stainless-steel housing provides tough and reliable protection against water, oil and dust.
The housing with a viewing window of hardened safety glass can be used as an underwater camera atdepth upto 100m.
Its applications are principal- ly in industry, scientific observation by naturalists,
or inspection of sewage and water- management systems.
The length of cable can be adjusted to individual requirement up to a maximum of 100 m.
*The terminal of the cable should be paraffin seal to avoid water income during installation.
|
Model |
EC-IP5855U |
|
|
CameraType |
5.0MPreal-timeunderwaterIPCamera |
|
|
Camera |
ImageSensor |
1/2.7″5MPCMOS |
|
Main stream |
5MP 2592*1944@15fps;4MP 2560*1440@25fps;3MP 2048*1536@25fps |
|
|
Substream |
704*576@25fps |
|
|
Min.Illumination |
Color0.5Lux/F1.4 |
|
|
ElectronicShutter |
1/50(1/60)s-1/100,000s |
|
|
Lens |
3.8-38mm(F1.8-3.2)10X10zoom |
|
|
LensMount |
M12/CSMount |
|
|
Material |
stainlesssteel316L |
|
|
Compression |
CompressionStandard |
H.264MainProfile/MJPEG |
|
VideoFrames |
Real-timePAL/NTSC2MP@1~30FPS |
|
|
Videostreamoutput |
Supportadjustablestream0.1M~6Mpbs |
|
|
Image |
Quality |
3D-DNR,BLC,AWB,autoISO |
|
Resolution |
MainStream: |
|
|
1920×108030fps(2MP),1280×720(1MP)30fps |
||
|
SubStream:640×360,720×480(1-30fps) |
||
|
Network |
ParameterSettings |
WEBconfigureandOSDsupported,Realtimerecording, |
|
Transmissionandplayback |
||
|
Basic |
Dualstream,Passwordprotection |
|
|
Protocol |
HTTP/Onvif/DHCP/DDNS/NTP |
|
|
Alarm |
SupportMotionDetection,LinkageAlarm,Linkagerecording, |
|
|
Sensortriggeralarmfunctions |
||
|
Interface |
VideoOutput |
RJ45 |
|
NetworkInterface |
1RJ45Ethernetinterface,10/100Madaptation |
|
|
PTZ |
Pan/tilt |
Pan360degree,Tilt90degree;Tilt0-90degree/s;Pan200degree/s |
|
ManualSpeed |
0.5360/s~360/scontinuouslyadjutable |
|
|
Other |
WorkEnvironment |
-10°C-+60°C |
|
WaterproofCriterion |
IP68 |
|
|
PowerSupply |
POEIEEE802.3at/af |
|
|
Size |
15.8×15.8x15cm |
|
|
Cable |
CAT6 |
|
|
NetWeight |
N.W.5kg+cable0.12kg/m |
|
